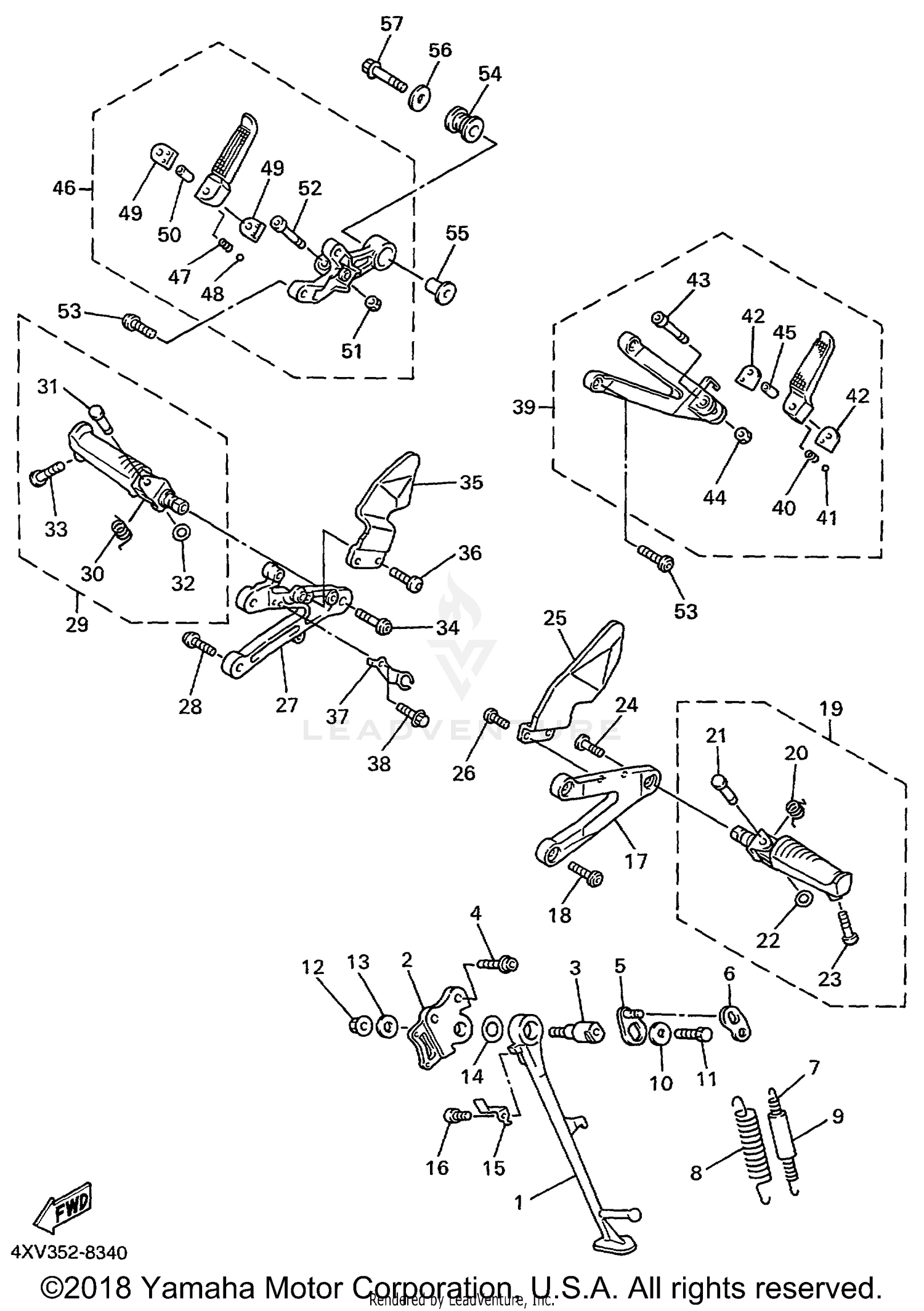

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
4XV-27311-00-00
Superseded by 5EB-27311-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE STAND
4NX-27321-00-00
Superseded by 5JJ-27321-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, SIDE STAND
4NX-27351-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET
90109-105G7-00
Superseded by 90110-10012-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOOK, SIDE STAND
36Y-27352-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINK, SIDE STAND
36Y-27315-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#7
SPRING, TENSION
90506-18224-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-26225-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, SIDE STAND
1TX-27351-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-081R9-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90101-08662-00
Superseded by 97017-08020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U FLANGE
95607-10200-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-101J1-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-146F9-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LINK, SIDE STAND
4NX-27315-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#16
BOLT
90110-06226-00
Superseded by 91317-06012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET 2
4XV-27442-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-085G6-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#19
FRONT FOOTREST ASSY
4XV-27410-00-00
Superseded by 4XV-27410-01-00
|
$124.99 | ||
|
Unavailable |
|||
|
#20
SPRING, TORSION
90508-183B9-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN
90243-08029-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-06042-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-083E0-00
Superseded by 90109-08075-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE 1
4XV-27445-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#26
BOLT, BUTTON HEAD
90149-06233-00
Superseded by 92017-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET 3
4XV-27443-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90109-085G6-00
|
$3.17 | ||
|
Unavailable |
|||
|
#29
FRONT FOOTREST ASSY
4XV-27420-00-00
Superseded by 4XV-27420-01-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, TORSION
90508-184B0-00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN
90243-08029-00
|
$7.99 | ||
|
Unavailable |
|||
|
#32
WASHER, PLATE
90201-06042-00
|
$8.99 | ||
|
Unavailable |
|||
|
#33
BOLT
90109-083E0-00
Superseded by 90109-08075-00
|
$6.99 | ||
|
Unavailable |
|||
|
#34
BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
|
$8.99 | ||
|
Unavailable |
|||
|
#35
PLATE 2
4XV-27446-00-00
|
$114.99 | ||
|
Unavailable |
|||
|
#36
BOLT, BUTTON HEAD
90149-06233-00
Superseded by 92017-06012-00
|
$6.99 | ||
|
Unavailable |
|||
|
#37
STAY, STOP SWITCH
3XV-2144G-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE
95807-06008-00
Superseded by 95817-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
REAR FOOTREST ASSEMBLY 1
4XV-27430-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING, COMPRESSION
90501-12743-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#41
BALL
93501-04011-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, SPECIAL
1HX-27437-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, HEXAGON SOCKET HEAD
91314-06045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, U FLANGE
95604-06200-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
COLLAR
90387-064H8-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
REAR FOOTREST ASSEMBLY 2
4XV-27440-00-00
|
$122.99 | ||
|
Unavailable |
|||
|
#47
SPRING, COMPRESSION
90501-12743-00
|
$4.06 | ||
|
Unavailable |
|||
|
#48
BALL
93501-04011-00
|
$7.99 | ||
|
Unavailable |
|||
|
#49
WASHER, SPECIAL
1HX-27437-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#50
COLLAR
90387-064H8-00
|
$7.99 | ||
|
Unavailable |
|||
|
#51
NUT, U FLANGE
95604-06200-00
|
$7.99 | ||
|
Unavailable |
|||
|
#52
BOLT, HEXAGON SOCKET HEAD
91314-06045-00
|
$7.99 | ||
|
Unavailable |
|||
|
#53
BOLT
90109-085G6-00
|
$3.17 | ||
|
Unavailable |
|||
|
#54
DAMPER, FOOTREST 2
36Y-27424-00-00
Superseded by 36Y-27424-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
COLLAR
90387-10636-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
WASHER, PLATE
90201-10669-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT
90109-100G0-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
