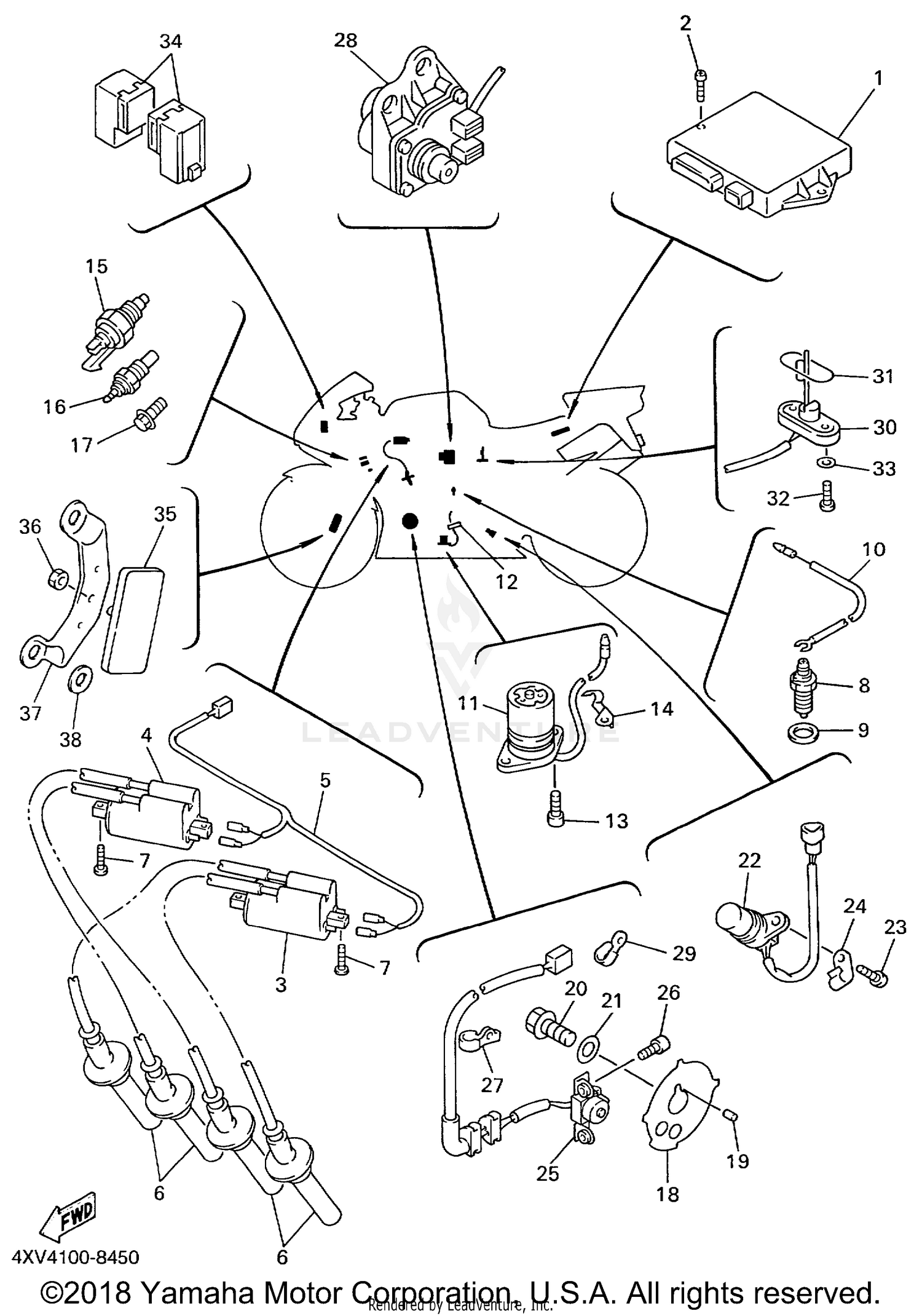

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITOR UNIT ASSEMBLY
4XV-82305-30-00
|
$811.99 | ||
|
Unavailable |
|||
|
#1
IGNITOR UNIT ASSEMBLY
4XV-82305-40-00
Superseded by 4XV-82305-30-00
|
$811.99 | ||
|
Unavailable |
|||
|
#2
SCREW, TAPPING
97707-60016-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
4XV-82310-00-00
Superseded by 4KM-82310-02-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
IGNITION COIL ASSY
4XV-82320-00-00
Superseded by 4KM-82320-02-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE, SUB LEAD
4XV-82309-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#6
PLUG CAP ASSY
4XV-82370-00-00
Superseded by 4XV-82370-01-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, TAPPING
97707-60025-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WIRE, LEAD
4XV-82541-00-00
|
$3.10 | ||
|
Unavailable |
|||
|
#11
OIL LEVEL GAUGE ASSY
4XV-85720-00-00
Superseded by 4XV-85720-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP 1
5Y9-12491-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,HEX.SOCKET HEAD
91317-06014-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90465-08076-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
THERMO SWITCH ASSY
3LN-82560-01-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
THERMO UNIT
11H-83591-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-06010-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROTOR
4XV-81673-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#19
PIN, DOWEL
93604-29151-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-10290-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-107K6-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SENSOR, SPEED
4XV-83755-00-00
Superseded by 4XV-83755-04-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,HEX.SOCKET HEAD
91317-06014-00
|
$8.99 | ||
|
Unavailable |
|||
|
#24
CLAMP
90465-08028-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PICK-UP ASSY
4XV-81670-00-00
Superseded by 4XV-81670-11-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90465-08191-00
Superseded by 90465-08054-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SERVO MOTOR ASSY
4FM-85820-00-00
Superseded by 4FM-85820-01-00
|
$384.99 | ||
|
Unavailable |
|||
|
#29
CLAMP
90462-08225-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SENDER UNIT ASSY, FU
3GM-85752-01-00
Superseded by 3GM-85752-03-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET, SENDER UNIT
42X-85753-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#34
RELAY ASSY (4XV-00)
4XV-81950-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
REFLECTOR ASSY
20G-85110-00-00
Superseded by 23V-85110-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, FLANGE
95707-05500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET, REFLECTOR 1
4XV-85112-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-08759-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
