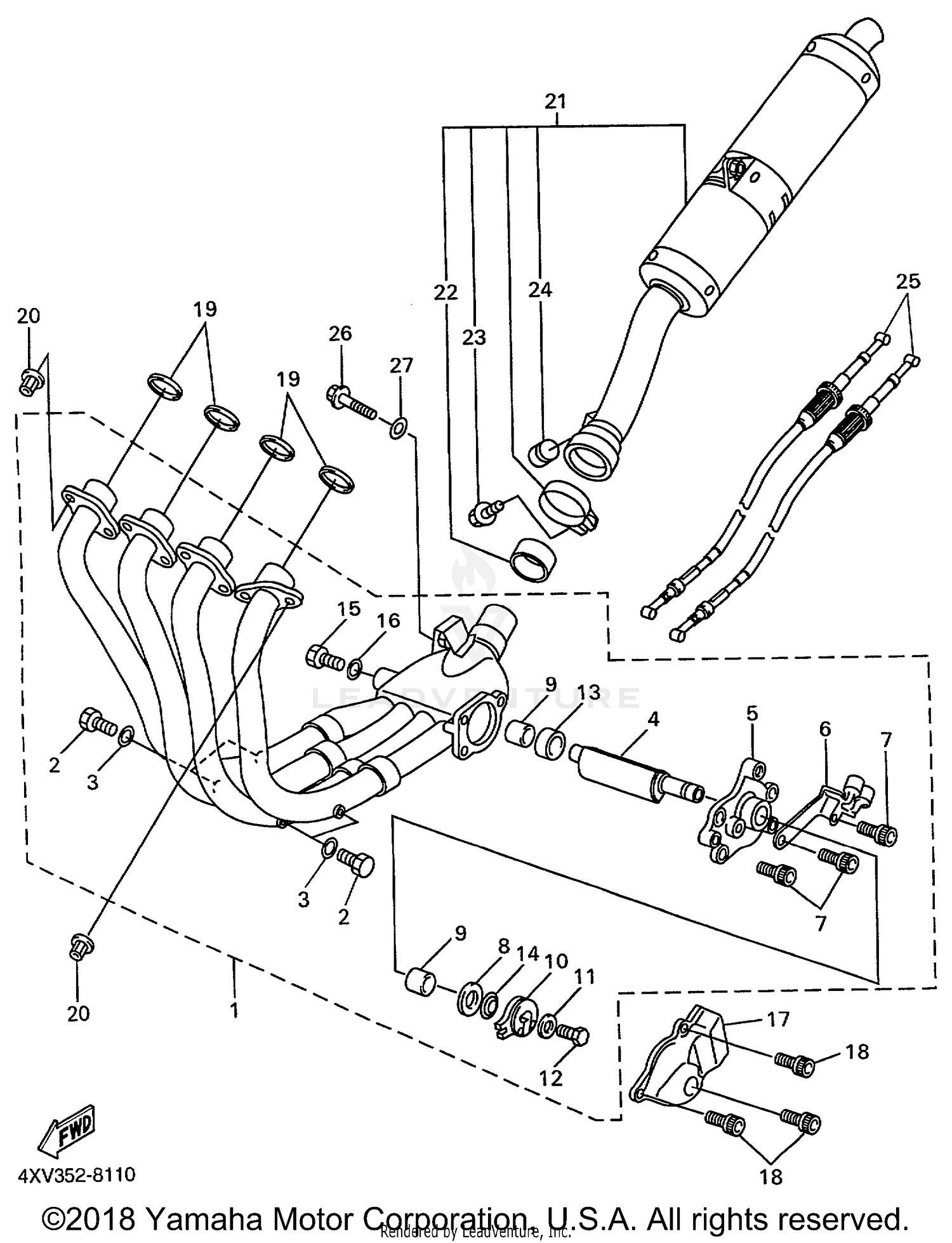

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
4XV-14610-00-00
Superseded by 5JJ-14610-00-00
|
$953.99 | ||
|
Unavailable |
|||
|
#2
BOLT, HEX.
97080-06008-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLAIN (646)
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, SHAFT (VALVE)
4SV-14821-00-00
|
$385.99 | ||
|
Unavailable |
|||
|
#5
HOUSING
3GM-14811-00-00
Superseded by 5JJ-14811-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET
2TK-14867-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06115-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-106M5-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
4SV-14638-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PULLEY
2TK-14865-01-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-050T4-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97080-05012-00
Superseded by 97095-05012-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-106U7-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, HOOK
3GM-14683-00-00
Superseded by 5PW-14683-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91380-04006-00
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PROTECTOR, EXHAUST
4HD-14826-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#18
BOLT, WITH WASHER
90119-06187-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, EXHAUST PIPE
4FM-14613-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-08410-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
MUFFLER ASSEMBLY 1
4XV-14710-10-00
Superseded by 4XV-14710-11-00
|
$1,389.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, MUFFLER
4XV-14714-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95814-08025-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, LOCATING 1
4FM-24181-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE PULLEY ASSY
4XV-1130E-00-00
Superseded by 4XV-1130E-01-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95817-08040-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-08612-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
