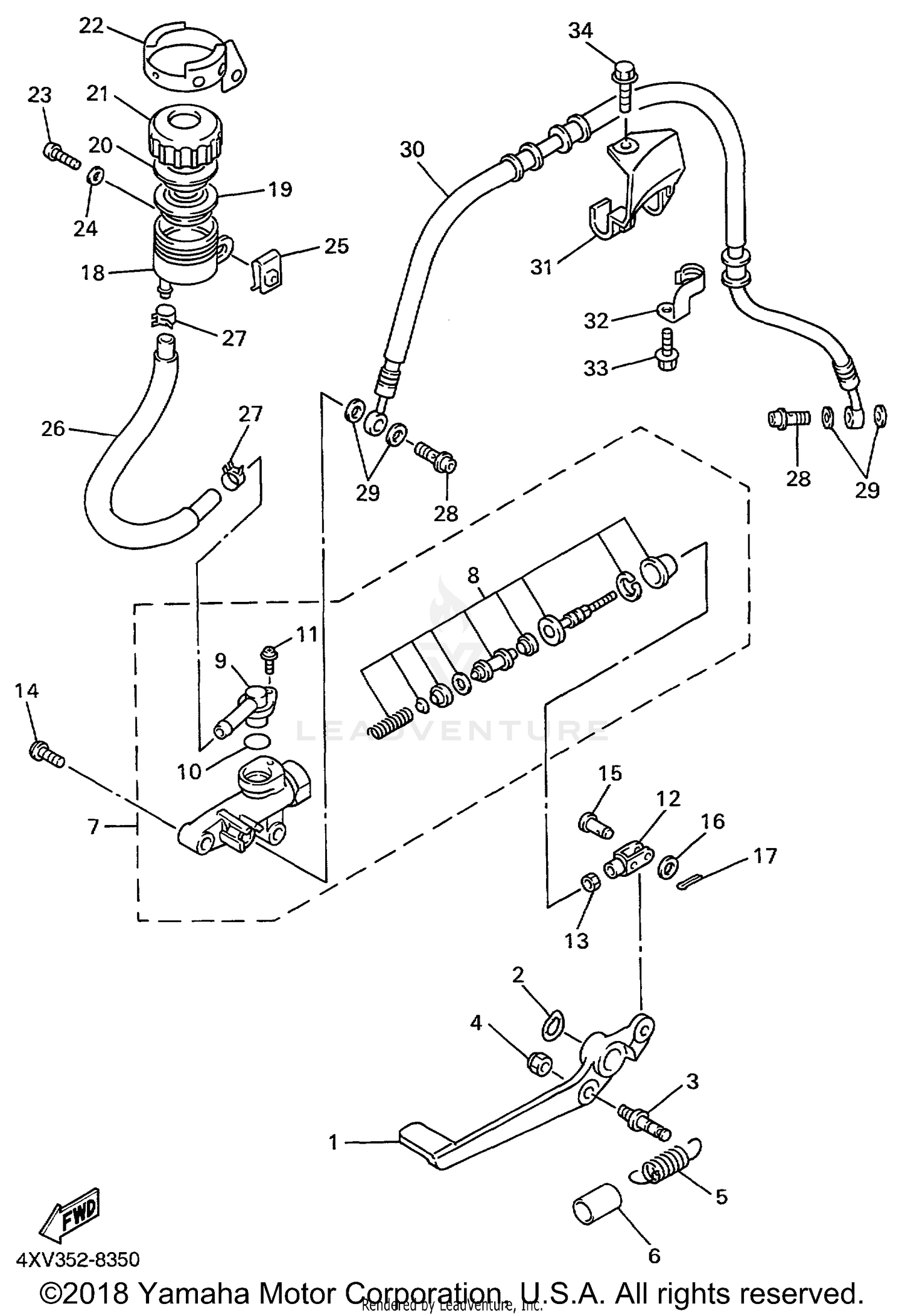

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
4XV-27211-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, WAVE
90206-17084-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PEDAL CRANK
3MA-27813-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#4
NUT, U
95604-08100-00
Superseded by 95680-08100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-20377-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE
90446-17346-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RR. MASTER CYLINDER ASSY.
3TU-2583V-01-00
|
$262.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER KIT, MASTER
3TU-W0042-51-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT
3LN-2582A-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#10
O-RING
3LN-2585F-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, SET
3LN-2585H-00-00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT
4XV-27222-00-00
Superseded by 4XV-27222-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92017-08030-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, CLEVIS
91701-06018-00
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
92907-06200-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COTTER
91401-16012-00
Superseded by 91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
TANK, RESERVOIR
31A-25894-01-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIAPHRAGM, RESERVOIR
360-25854-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, RESERVOIR
2KF-25852-50-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, RESERVOIR TANK
3PJ-25888-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#23
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, RESERVOIR
4XV-25895-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#27
CLIP
90467-14057-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE, BRAKE
4XV-25874-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOLDER, BRAKE HOSE
4XV-25886-00-00
Superseded by 4XV-25886-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#32
HOLDER, BRAKE HOSE 2
4FM-25876-00-00
Superseded by 4FM-25876-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95027-06010-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, WITH WASHER
90119-06052-00
Superseded by 90119-06226-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
