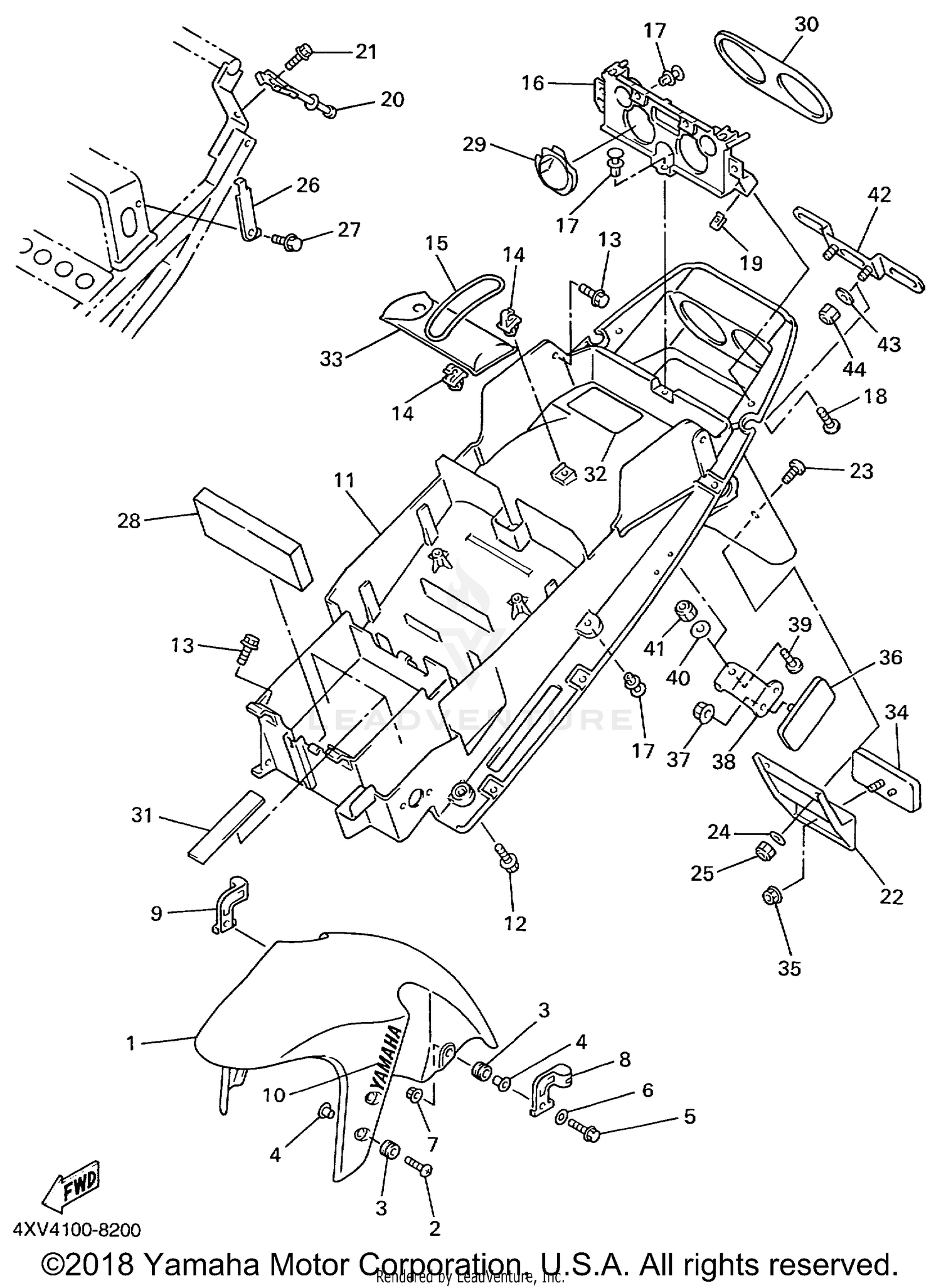

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
4XV-21511-00-P0
Superseded by 4XV-21511-01-P0
|
$192.99 | ||
|
Unavailable |
|||
|
#1
FENDER, FRONT
4XV-21511-00-P1
Superseded by 4XV-21511-01-P1
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, BINDING
90154-06061-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-12072-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,HEXAGON
97007-06030-00
Superseded by 97017-06030-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE
95707-06500-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, BRAKE HOSE 1
4XV-25875-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#9
HOLDER, BRAKE HOSE 2
4XV-25876-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#10
EMBLEM, YAMAHA
99231-00100-00
Superseded by 99241-00100-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
FENDER, REAR
4XV-21611-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-06096-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-07259-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND, TOOL
4XV-21376-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, TAILLIGHT
4XV-2117E-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#17
RIVET
90269-07077-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SPRING
90183-05061-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE
4XV-21654-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#21
BOLT,WASHER BASED
90105-063A3-00
Superseded by 90105-06069-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, REFLECTOR 1
4XV-85132-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#23
SCREW
90149-04278-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-04018-00
Superseded by 90201-044H9-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U
95607-04100-00
Superseded by 95617-04100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HANGER, HELMET
4XV-21398-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER 2
4XV-21639-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#29
COVER, TAILLIGHT
4XV-2172X-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#30
SEAL
4XV-21669-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
DAMPER 1
1AE-2834E-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE, EPA 2 (CALIFORNIA)
4XV-2179R-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#32
PLATE, EPA 1 (NON CALIFORNIA)
4XV-2179V-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#33
TOOL KIT
4XV-28100-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#34
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, FLANGE
95707-05500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$29.99 | ||
|
Unavailable |
|||
|
#37
NUT, FLANGE
95707-05500-00
|
$7.99 | ||
|
Unavailable |
|||
|
#38
BRACKET, REAR STAY
4XV-21688-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW
90149-04278-00
|
$2.34 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-04018-00
Superseded by 90201-044H9-00
|
$7.99 | ||
|
Unavailable |
|||
|
#41
NUT, U
95607-04100-00
Superseded by 95617-04100-00
|
$8.99 | ||
|
Unavailable |
|||
|
#42
BRACKET, LICENSE
4XV-84751-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#43
WASHER, PLATE
90201-06380-00
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
