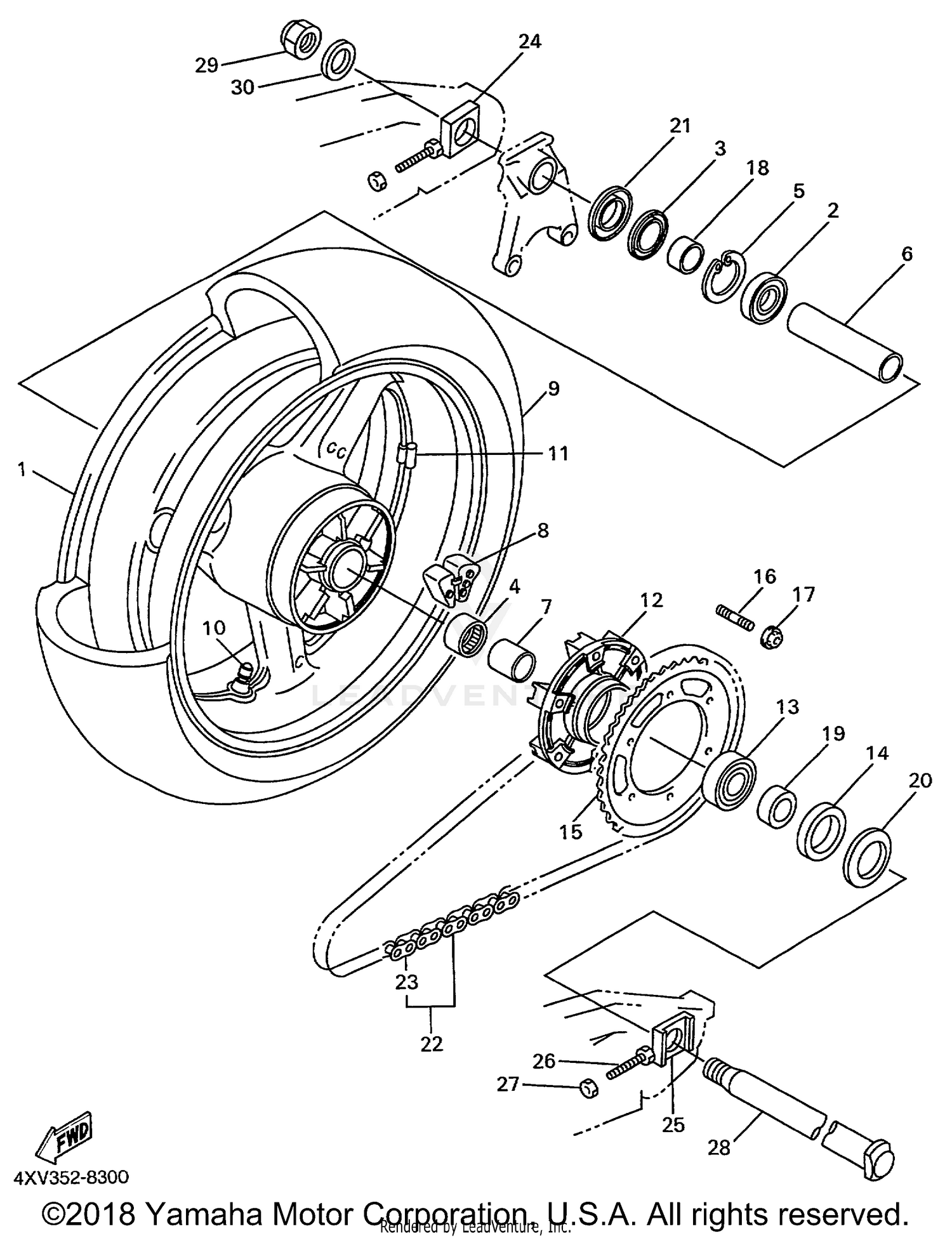

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
4XV-25338-00-33
|
$725.99 | ||
|
Unavailable |
|||
|
#1
CAST WHEEL, REAR
4XV-25338-00-35
|
$711.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20567-00
Superseded by 93306-07806-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93106-35042-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93317-43580-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99009-52500-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, BEARING
4XV-25317-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, WHEEL
4XV-25383-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
4XV-25364-00-00
Superseded by 2C0-25364-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE (190/50 ZR17 D207)
94119-1713K-00
Superseded by 94119-17009-00
|
$436.99 | ||
|
Unavailable |
|||
|
#10
VALVE, RIM (TR412)
93900-00030-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLUTCH, HUB
4XV-25366-00-00
Superseded by 4XV-25366-10-00
|
$247.99 | ||
|
Unavailable |
|||
|
#13
BEARING
93306-20646-00
Superseded by 93306-27802-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93106-40041-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (43T)
4XV-25443-20-00
Superseded by 4XV-25443-21-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD
90116-10485-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U FLANGE
95607-10200-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
4XV-25377-00-00
Superseded by 90387-28020-00
|
$28.99 | ||
|
Unavailable |
|||
|
#19
COLLAR
4XV-25376-00-00
Superseded by 90387-28019-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, WHEEL
4XV-25367-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#21
COVER, PLATE
4XV-25327-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CHAIN (DID50ZVM-114LL)
94581-69114-00
Superseded by 9Y581-69113-00
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JOINT, CHAIN
94681-69031-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PULLER, CHAIN 1
4XV-25388-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PULLER, CHAIN 2
4XV-25389-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (L=55 P=1.25)
90101-08766-00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT(6TA)
95307-08600-00
Superseded by 95337-08600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
AXLE, WHEEL
4XV-25381-00-00
Superseded by 4XV-25381-10-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SELF-LOCKING
90185-24165-00
Superseded by 90185-24007-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-257R5-00
Superseded by 90201-25020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
