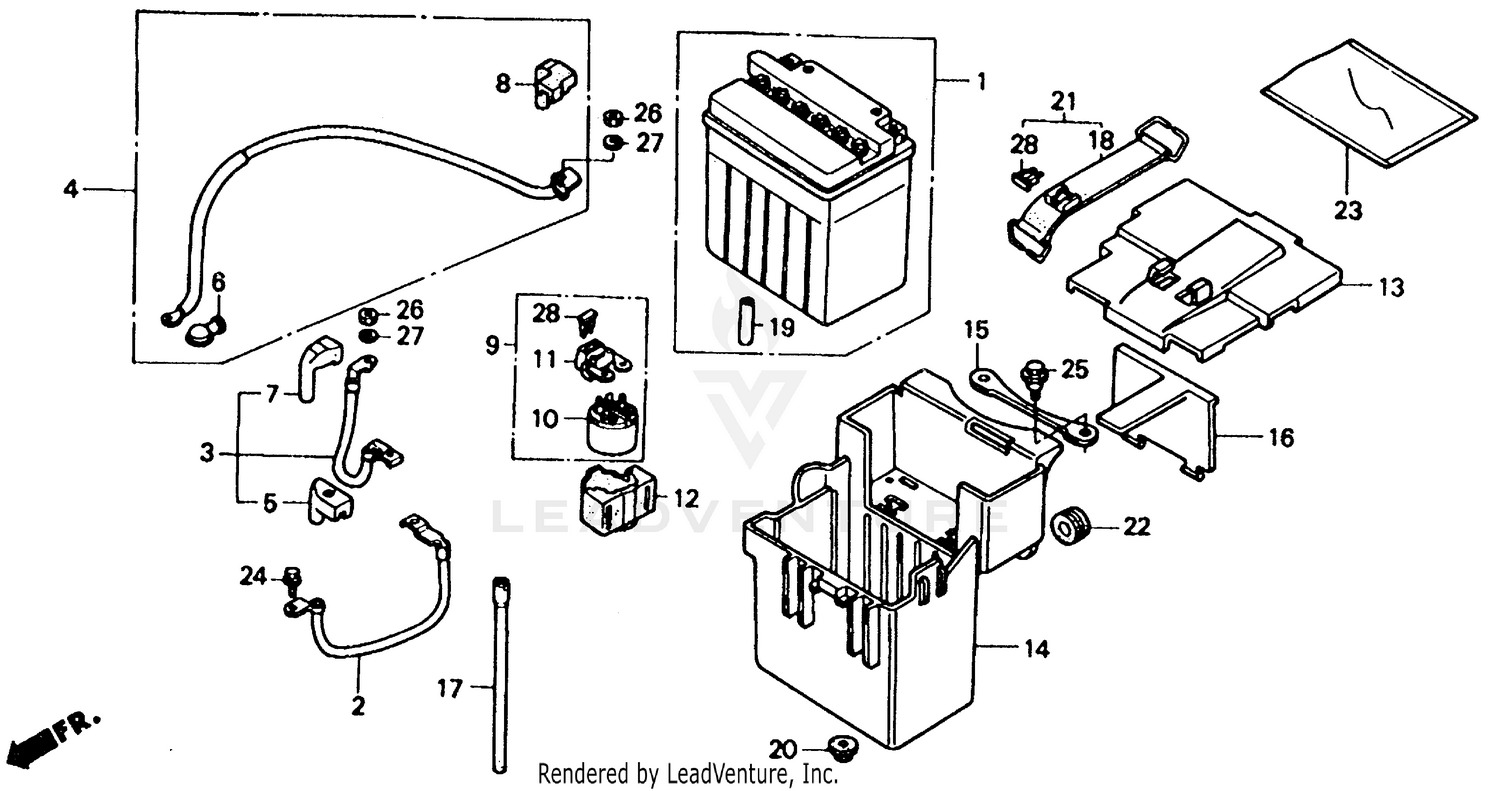

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY (YB14L-B2) (YUASA)
31500-MM5-674
Superseded by 31500-MM5-675AH
|
$106.52 | ||
|
Available to order. Add to View Price |
|||
|
#1
BATTERY (YB14L-B2) (YUASA)
31500-MM5-675
Superseded by 31500-MM5-675AH
|
$106.52 | ||
|
Unavailable |
|||
|
#1
BATTERY (YB14L-B2) (YUASA)
31500-MM5-675AH
|
$106.52 | ||
|
Unavailable |
|||
|
#1
BATTERY (YB14L-B2) (YUASA)
31500-MM5-673
Superseded by 31500-MM5-675AH
|
$106.52 | ||
|
Unavailable |
|||
|
#2
CABLE ASSY., GROUND
32350-MM5-000
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, STARTER MAGNETIC BATTERY
32401-MM5-000
Superseded by 32401-MW7-600
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, STARTER MAGNETIC BATTERY
32401-MW7-600
|
$18.35 | ||
|
Unavailable |
|||
|
#4
CABLE, STARTER MOTOR
32410-MM5-000
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, BATTERY
32411-MM5-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$7.60 | ||
|
Unavailable |
|||
|
#7
COVER B, MAGNETIC SWITCH
32416-MF5-000
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, MAGNETIC SWITCH
32416-MM5-300
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH ASSY., STARTER MAGNETIC
35850-MK3-671
|
$147.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH, STARTER MAGNETIC
35851-MF5-751
|
$123.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER ASSY., FUSE
35855-MG7-751
|
$40.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, SHOCK
35856-MF5-751
|
$10.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
LID A, BATTERY BOX
50324-MS2-000
|
$18.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOX, BATTERY
50325-MS2-000
|
$90.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, BATTERY BOX SETTING
50327-MS2-000
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
LID B, BATTERY BOX
50328-MS2-000
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, BATTERY
50329-MM5-000
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, BATTERY
50330-MM5-000
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE A, BATTERY
50331-MW7-000
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET, BATTERY BOX
50332-MM5-000
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND ASSY., BATTERY
50335-MM5-000
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER, FR. FENDER MOUNTING
61103-357-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAG, SERVICE BOOK
77251-342-000
Superseded by 77251-GR1-000
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X8) (NOT AVAILABLE)
90014-460-000
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SPECIAL (6MM)
90109-434-000
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEX. (6MM)
94002-06080-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING (6MM)
94111-06800
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUSE, BLADE (30A)
98200-33000
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
