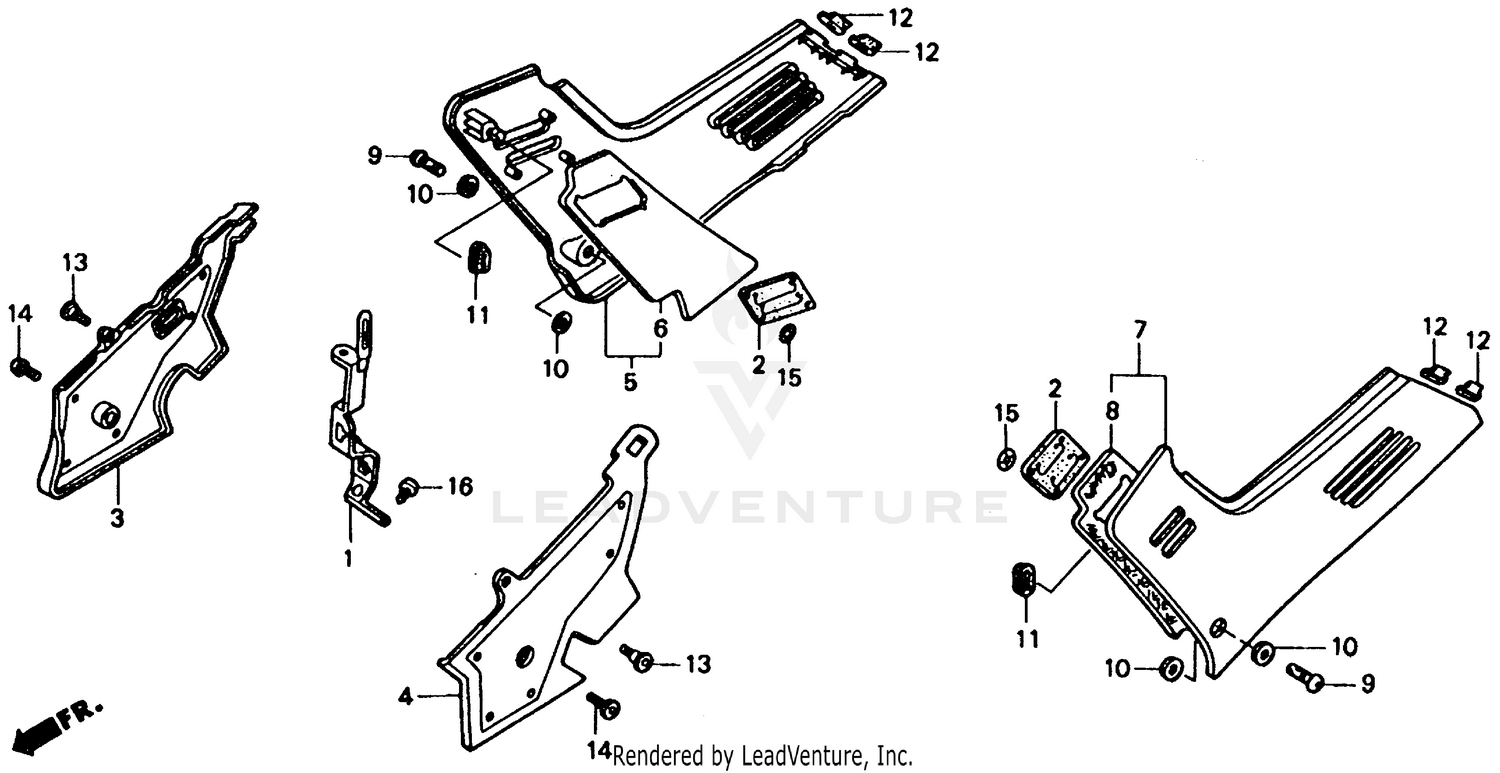

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER B, CONNECTOR
32501-MM5-770
|
$32.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUARD, SIDE COWL HEAT
64113-MS2-000
|
$11.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, R. PIVOT *NH264M* (HAZY GRAY METALLIC)
64285-MS2-000ZA
|
$143.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, L. PIVOT *NH264M* (HAZY GRAY METALLIC)
64295-MS2-000ZA
|
$147.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
COWL SET, R. SIDE *NH217M/R109* (TYPE4) (WL) (CHECKER BLACK METALLIC/ PASSION RED)
65300-MS2-870ZB
Superseded by 65300-MS2-870ZJ
|
$145.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
COWL SET, R. SIDE *NH217M/R109* (TYPE4) (WL) (CHECKER BLACK METALLIC/ PASSION RED)
65300-MS2-870ZJ
|
$145.19 | ||
|
Unavailable |
|||
|
#6
MAT, R. HEAT GUARD
64301-MS2-300
|
$23.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
COWL *R109/NH217M*
65350-MS2-870ZB
Superseded by 65350-MS2-870ZJ
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
MAT, L. HEAT GUARD
64351-MS2-300
|
$23.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
STUD (6X14)
64507-MN4-000
Superseded by 64508-ML7-921
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER (6MM)
64509-KE8-700
Superseded by 64509-KE8-701
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET, SIDE COVER
83551-MA6-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, SIDE COWL
83602-MS2-000
|
$6.71 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN (6X11)
90106-KY2-701
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (6X17)
90107-MM5-000
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL (6MM)
90407-952-300
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING (5X8)
93901-25010
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
