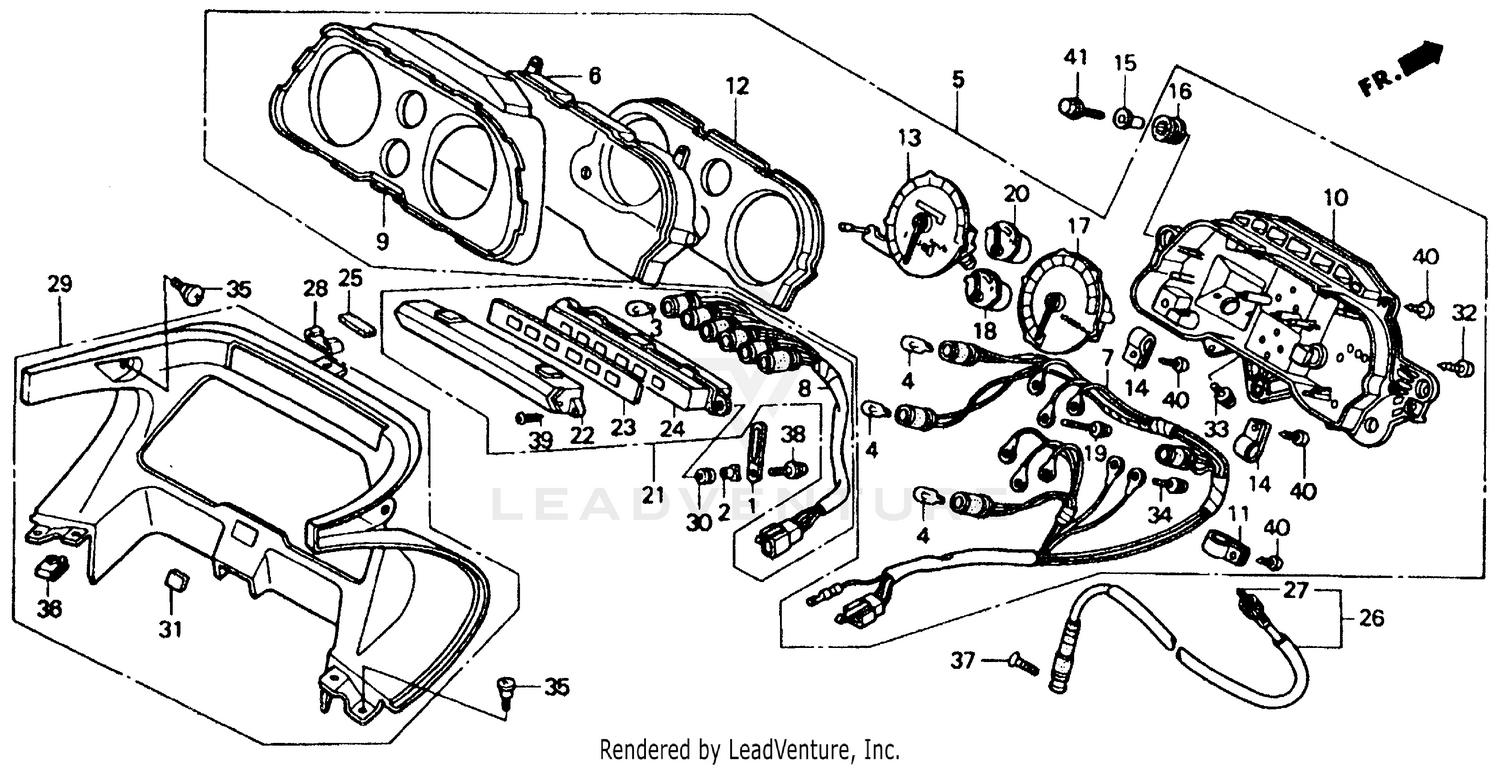

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP A, TUBE
17215-MG9-950
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, TAILLIGHT
33713-KJ2-000
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (14V 3.4W) (NS)
34908-GA7-701
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (14V 3.4W) (NS)
37102-567-009
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#3
BULB (12V3.4W2CP) (158) (NS)
37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#3
BULB (14V 3.4W) (NS)
37237-SA5-004
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#4
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)
34908-MB9-871
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
METER ASSY., COMBINATION
37100-MS2-671
|
$1,060.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS ASSY., METER
37102-MS2-601
|
$60.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
SOCKET, COMBINATION METER
37105-MS2-601
|
$56.86 | ||
|
Available to order. Add to View Price |
|||
|
#8
SOCKET, PILOT BOX
37106-MS2-601
|
$56.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
VISOR ASSY.
37110-MS2-601
|
$100.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE ASSY.
37111-MS2-601
|
$86.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
37121-ML7-671
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, REFLECTING
37130-MM5-008
|
$37.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPEEDOMETER ASSY.
37200-MS2-671
|
$259.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
37215-KAF-008
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, SPEEDOMETER MOUNTING
37243-MM4-000
Superseded by 37243-MBB-000
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, SPEEDOMETER MOUNTING
37244-MM4-000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
TACHOMETER ASSY.
37250-MS2-651
|
$545.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
METER ASSY., FUEL
37300-MS2-601
|
$72.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (3X22)
37305-KE5-008
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#20
METER ASSY., TEMPERATURE
37400-MS2-601
|
$71.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOX ASSY., PILOT
37600-MS2-851
|
$128.26 | ||
|
Available to order. Add to View Price |
|||
|
#22
LENS, SMOKE
37601-MS2-851
|
$23.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
PANEL
37602-MS2-601
|
$7.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
CASE ASSY. (LOWER)
37603-MS2-601
|
$50.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, PILOT BOX
37610-MS2-000
Superseded by 77212-KAZ-300
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, PILOT BOX
77212-KAZ-300
|
$0.58 | ||
|
Unavailable |
|||
|
#26
CABLE, SPEEDOMETER
44830-MS2-000
|
$31.86 | ||
|
Unavailable |
|||
|
#27
CABLE (INNER)
44831-MS2-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, METER VISOR (NOT AVAILABLE)
64573-MS2-000
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#29
VISOR SET, METER *R109* (PASSION RED)
64575-MS2-000ZB
|
$115.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUSHION A, RR. FENDER
80105-061-000
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#31
EMBLEM, WING MARK
86150-MN8-300
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, TAPPING (4X3)
90032-ML7-671
Superseded by 90133-SG0-A01
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, TAPPING (4X3)
90133-SG0-A01
|
$2.43 | ||
|
Unavailable |
|||
|
#33
SCREW, FLANGE (4X8)
90101-GC8-008
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW-WASHER (3X10)
90108-GN2-008
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (6X14)
90113-MM5-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, CLIP (6MM)
90321-MM5-000
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, OVAL (5X20)
93700-05020-0G
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-WASHER (5X18)
93894-05018-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, TAPPING (4X16)
93901-24410
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, TAPPING (4X20)
93903-24520
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
