< Back to Assembly Types

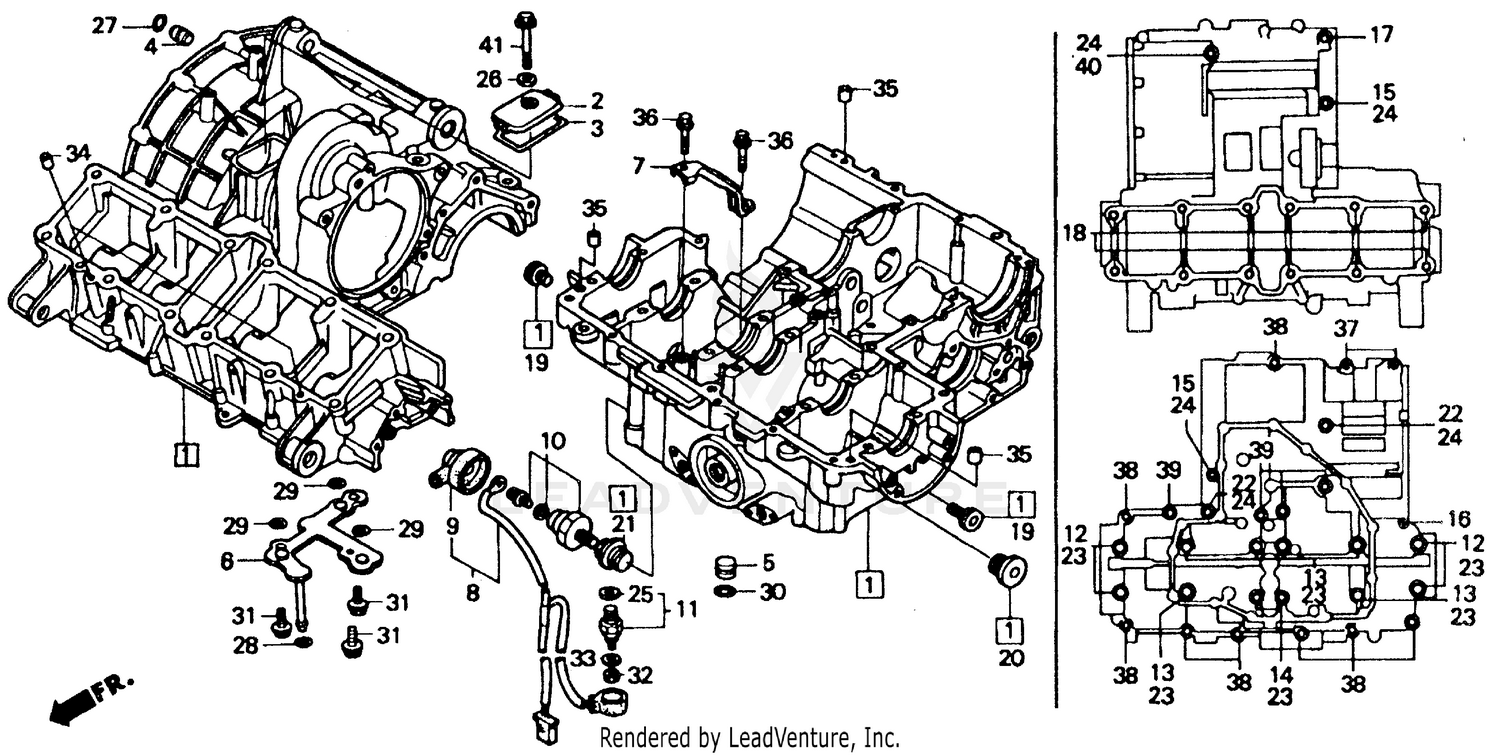

Crankcase Diagram

Item MSRP Qty
#1 CRANKCASE SET
11000-MS2-610
Superseded by 11000-MW7-790
 $2,617.43
Available to order.
Add to View Price
#1 CRANKCASE SET
11000-MW7-790
 $2,617.43
Unavailable
#2 COVER, ALTERNATOR CHAMBER
11103-MM5-000
 $17.18
Available to order.
Add to View Price
#3 GASKET, ALTERNATOR CHAMBER COVER
11104-MM5-000
 $4.27
Available to order.
Add to View Price
#4 COLLAR, CRANKCASE (UPPER)
11105-MS2-610
 $2.03
Available to order.
Add to View Price
#5 COLLAR, MAIN GALLERY
11208-MM5-000
 $7.21
Available to order.
Add to View Price
#6 PLATE, OIL PASSAGE
12260-MS2-610
 $69.99
Available to order.
Add to View Price
#7 GUIDE, OIL PUMP CHAIN
15162-MS2-610
 $35.03
Available to order.
Add to View Price
#8 SUB-HARNESS, ENGINE
32101-MM5-000
 $31.26
Available to order.
Add to View Price
#9 COVER, NEUTRAL SWITCH
32550-MJ6-000
 $4.00
Available to order.
Add to View Price
#10 SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
 $49.18
Available to order.
Add to View Price
#11 SWITCH ASSY., NEUTRAL (TEC)
35600-MM5-003
 $21.91
Available to order.
Add to View Price
#12 BOLT, UBS (9X86)
90001-MM5-000
 $7.98
Available to order.
Add to View Price
#13 BOLT, UBS (9X131)
90002-MM5-000
 $13.06
Available to order.
Add to View Price
#14 BOLT, UBS (9X151)
90003-MM5-000
 $15.68
Available to order.
Add to View Price
#15 BOLT, FLANGE (8X135)
90006-MM5-640
 $7.36
Available to order.
Add to View Price
#16 BOLT, FLANGE (6X93)
90011-MM5-640
 $6.29
Available to order.
Add to View Price
#17 BOLT, FLANGE (10X75)
90015-MM5-640
 $6.27
Available to order.
Add to View Price
#18 BOLT, STUD (10X153)
90032-MM5-641
 $13.73
Available to order.
Add to View Price
#19 BOLT, SPECIAL (10MM)
90042-MM5-000
 $6.98
Available to order.
Add to View Price
#20 BOLT, SEALING (20MM)
90048-ME5-000
 $17.00
Available to order.
Add to View Price
#21 BOLT, SEALING (20MM)
90048-MAL-600
 $12.96
Available to order.
Add to View Price
#21 BOLT, SEALING (20MM)
90048-MM5-000
Superseded by 90048-MAL-600
 $12.96
Unavailable
#22 BOLT, FLANGE (8X115) (NOT AVAILABLE)
90069-MC7-000
 $4.58
Available to order.
Add to View Price
#23 WASHER (10MM)
90403-ML4-610
Superseded by 90403-ML4-611
 $6.77
Available to order.
Add to View Price
#24 WASHER, SEALING (8MM)
90442-028-000
 $1.92
Available to order.
Add to View Price
#25 WASHER, NEUTRAL
90443-MJ6-000
 $2.09
Available to order.
Add to View Price
#26 WASHER, SEALING (6.5MM)
90463-ML7-000
 $3.36
Available to order.
Add to View Price
#27 O-RING (3.6X1.4) (NOT AVAILABLE)
91301-MC0-000
 $1.08
Available to order.
Add to View Price
#28 WASHER, OIL SEAL PATH (ARAI)
91307-MM5-641
 $2.59
Available to order.
Add to View Price
#29 O-RING (9X2.3) (NOK)
91313-PC9-003
 $3.43
Available to order.
Add to View Price
#30 O-RING (11.9X2.2)
91370-461-000
 $2.62
Available to order.
Add to View Price
#31 BOLT, HEX. (6X14)
92101-06014-0A
 $1.45
Available to order.
Add to View Price
#32 NUT, HEX. (4MM)
94001-04000-0S
 $1.03
Available to order.
Add to View Price
#33 WASHER, SPRING (4MM)
94111-04800
 $0.98
Available to order.
Add to View Price
#34 PIN, DOWEL (10X16)
94301-10160
 $2.47
Available to order.
Add to View Price
#35 PIN B, DOWEL (10X16)
94302-10160
 $1.92
Available to order.
Add to View Price
#36 BOLT, FLANGE (6X14)
95701-06014-00
 $1.09
Available to order.
Add to View Price
#37 BOLT, FLANGE (6X50)
95701-06050-00
 $2.17
Available to order.
Add to View Price
#38 BOLT, FLANGE (8X40)
95701-08040-00
 $1.42
Available to order.
Add to View Price
#39 BOLT, FLANGE (8X60)
95701-08060-00
 $1.66
Available to order.
Add to View Price
#40 BOLT, FLANGE (8X80)
95701-08080-00
 $1.86
Available to order.
Add to View Price
#41 BOLT, FLANGE (6X55)
96001-06055-00
 $1.79
Available to order.
Add to View Price
