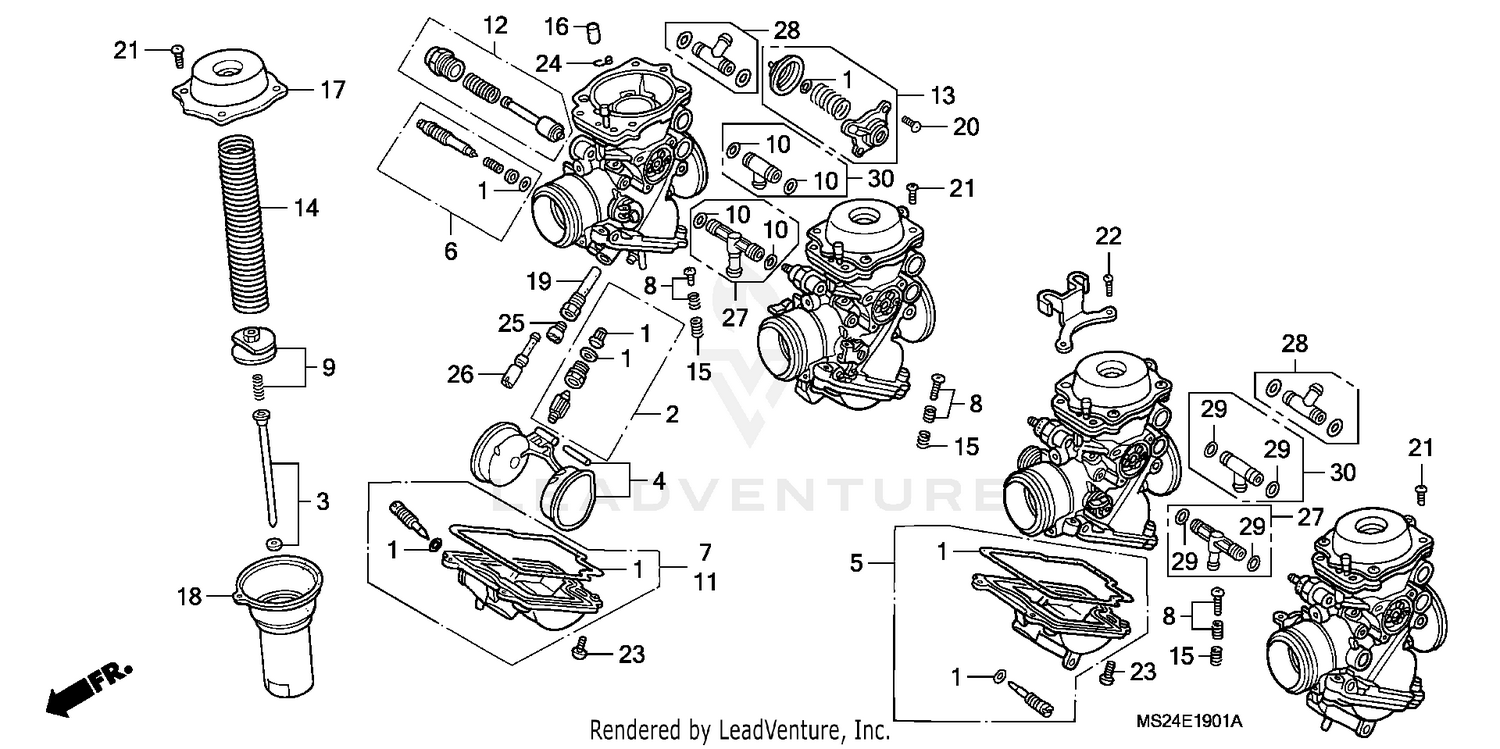

Carburetor (components) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET A
16010-MM8-505
|
$67.69 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET A
16010-MS2-601
Superseded by 16010-MM8-505
|
$67.69 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-MS2-601
|
$50.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET
16012-MS2-670
|
$40.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-MAH-000
|
$57.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-ML7-004
Superseded by 16013-MAH-000
|
$57.41 | ||
|
Unavailable |
|||
|
#5
CHAMBER SET A, FLOAT
16015-MM4-004
|
$138.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET, A
16016-MS2-670
|
$15.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAMBER SET B, FLOAT
16023-MM4-004
|
$135.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET
16029-KE8-004
Superseded by 16029-KEJ-900
|
$22.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE SET, VALVE (NOT AVAILABLE)
16037-MK7-771
Superseded by 16037-MK7-772
|
$16.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE SET, VALVE
16037-MK7-772
|
$16.08 | ||
|
Unavailable |
|||
|
#10
GASKET B SET
16040-MM5-601
|
$17.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE SET, STARTER (NOT AVAILABLE)
16046-MM5-601
|
$42.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COMPRESSION COIL
16050-MS2-601
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
16052-ME9-672
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP
16097-ME9-671
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
TOP
16107-MS2-601
|
$43.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON, VACUUM
16111-MM5-692
|
$132.72 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, NEEDLE JET (NOT AVAILABLE)
16165-MS2-601
|
$25.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (4X10)
93500-04010-0H
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (4X10)
93500-04010-1H
Superseded by 93500-04010-0H
|
$0.90 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN (4X12)
93500-04012-0A
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (4X12)
93500-04012-1A
Superseded by 93500-04012-0A
|
$0.81 | ||
|
Unavailable |
|||
|
#23
SCREW-WASHER (4X16)
93892-04016-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (4X16)
93892-04016-10
Superseded by 93892-04016-00
|
$0.55 | ||
|
Unavailable |
|||
|
#24
CLIP, TUBE (B6.5)
95002-02650
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, MAIN (#120)
99101-GHB-1200
Superseded by 99101-MBZ-1200
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, MAIN (#120)
99101-393-1200
Superseded by 99101-MBZ-1200
|
$10.56 | ||
|
Unavailable |
|||
|
#26
JET, SLOW (#40)
99103-MT2-0400
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
T-JOINT SET (A)
16026-MM4-004
|
$31.63 | ||
|
Available to order. Add to View Price |
|||
|
#28
JOINT SET, FUEL
16027-KT7-013
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET B SET
16040-MM5-601
|
$17.01 | ||
|
Unavailable |
|||
|
#30
JOINT SET
16047-MA6-003
Superseded by 16048-KR3-980
|
$56.86 | ||
|
Available to order. Add to View Price |
|||
