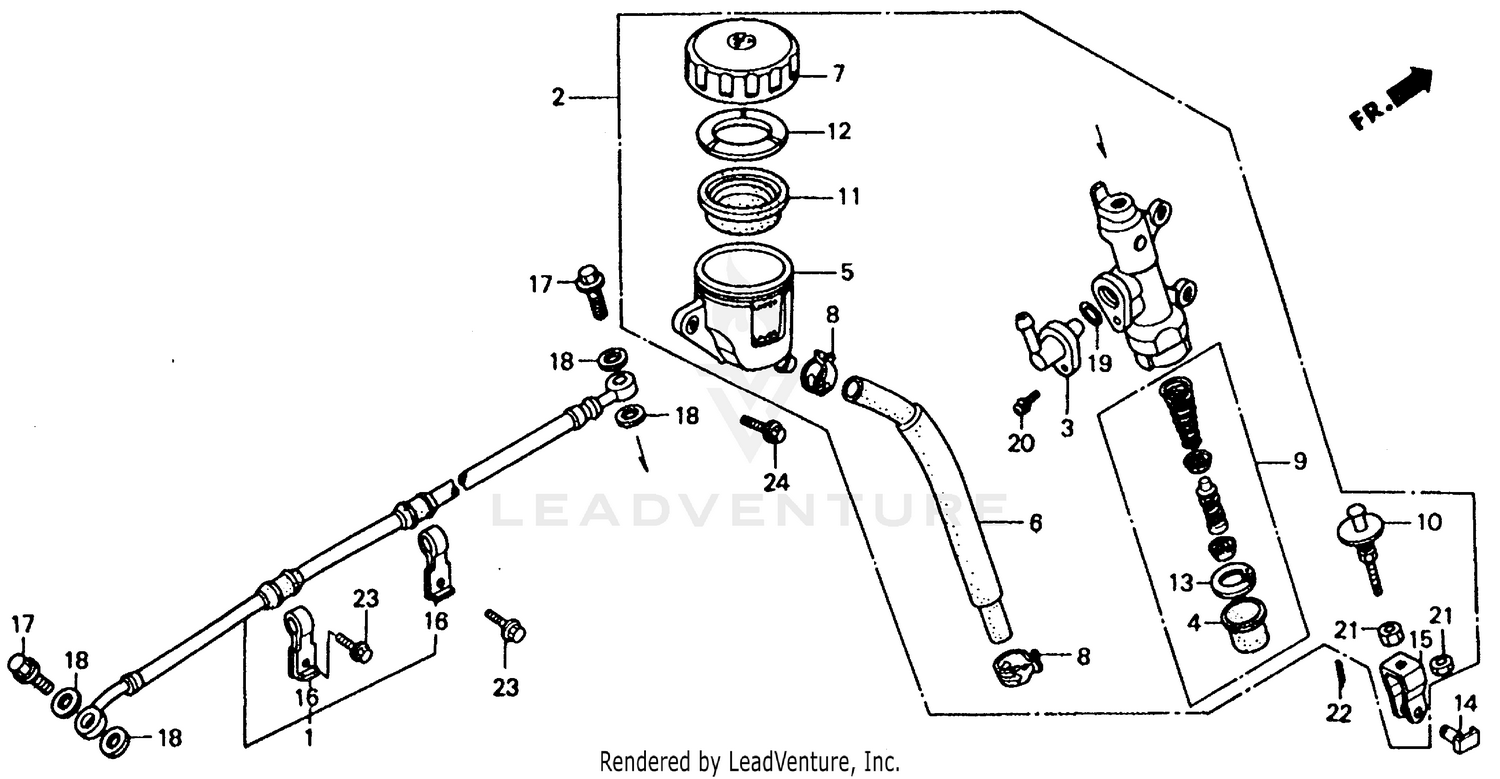

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. BRAKE
43310-MS2-871
|
$59.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER CYLINDER ASSY., RR. BRAKE
43500-MS2-006
|
$375.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNECTOR, MASTER CYLINDER
43503-MB2-006
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
43504-MB2-006
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUP, MASTER CYLINDER OIL
43511-MA6-006
|
$46.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, MASTER CYLINDER
43512-MS2-006
|
$16.81 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, OIL CUP
43513-MB4-672
|
$26.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, MASTER CYLINDER OIL HOSE
43514-445-771
|
$14.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON SET, MASTER CYLINDER
43520-MJ6-305
Superseded by 43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON SET, MASTER CYLINDER
43520-MJ6-315
|
$54.98 | ||
|
Unavailable |
|||
|
#10
ROD, PUSH
43530-MM5-006
|
$30.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM
45520-300-000
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DIAPHRAGM
45521-MJ6-006
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
46182-500-013
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN D, JOINT
46503-KW3-000
Superseded by 95015-54000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN D, JOINT
95015-54000
|
$5.09 | ||
|
Unavailable |
|||
|
#15
JOINT, BRAKE ROD
46504-MB2-006
|
$8.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP, RR. BRAKE HOSE
52116-KV3-020
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, OIL (10X22)
90145-MS9-612
|
$8.20 | ||
|
Unavailable |
|||
|
#18
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (14.8X2.4)
91212-422-006
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-WASHER (4X12)
93893-04012-08
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-WASHER (4X12)
93893-04012-18
Superseded by 93893-04012-08
|
$1.35 | ||
|
Unavailable |
|||
|
#21
NUT, HEX. (8MM)
94002-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, SPLIT (2.0X12)
94201-20120
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
