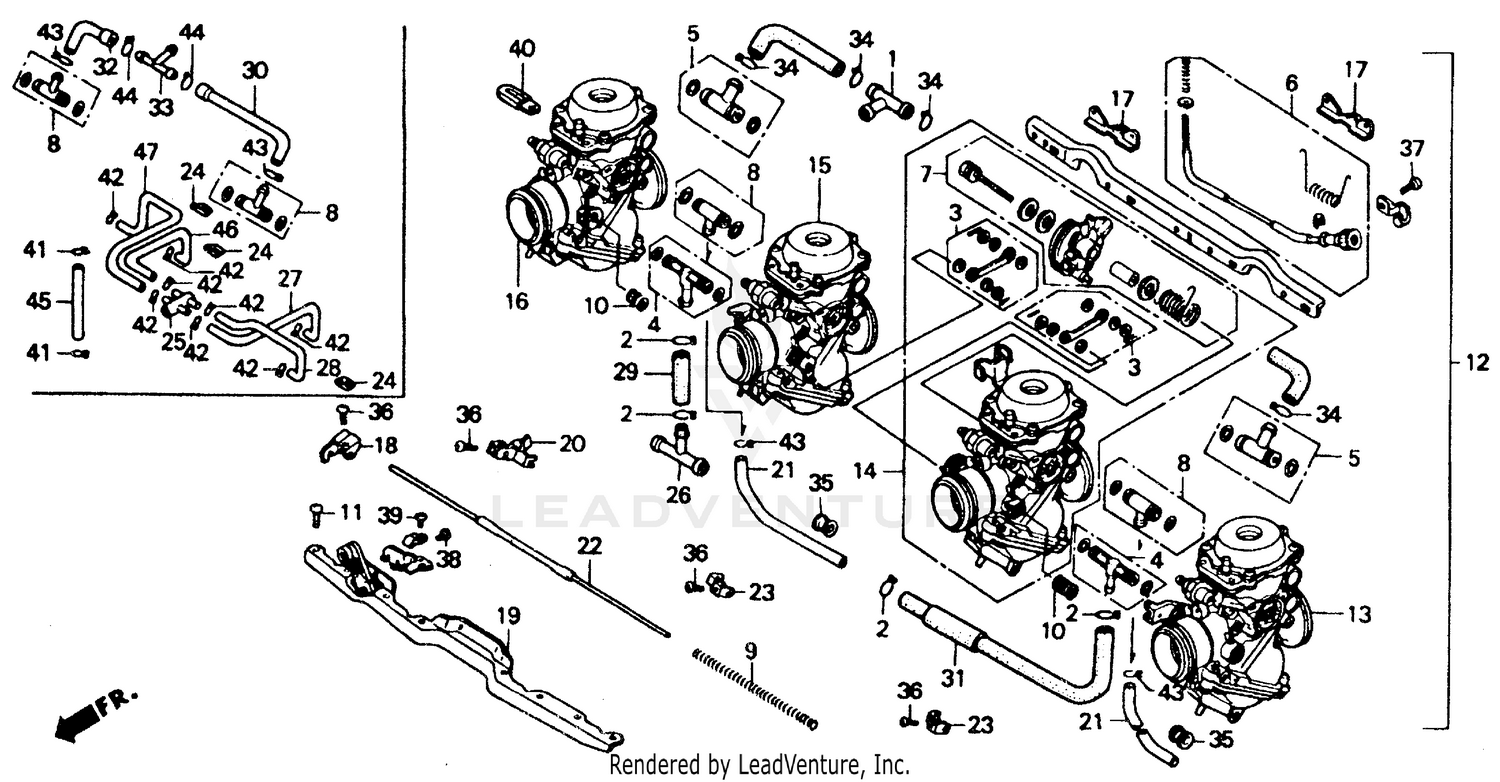

Carburetor (assy.) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, BREATHER (THREE-WAY)
15772-HA7-670
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, BREATHER TUBE
15772-292-010
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM SET, LINK (NOT AVAILABLE)
16018-MM5-601
|
$34.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
T-JOINT SET (A)
16026-MM4-004
|
$31.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT SET, FUEL
16027-KT7-013
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET B
16028-MS2-670
|
$43.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
DRUM SET, THROTTLE
16032-MM5-602
|
$101.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT SET
16047-MA6-003
Superseded by 16048-KR3-980
|
$56.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION COIL
16050-MM5-601
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION COIL
16053-MM5-601
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN (6X12)
16080-ML4-611
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
CARBURETOR ASSY. (VG93A A)
16100-MS2-673
|
$2,083.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
CARBURETOR ASSY. 1
16101-MS2-670
|
$639.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
CARBURETOR ASSY. 2
16102-MS2-670
|
$639.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
CARBURETOR ASSY. 3
16103-MS2-670
|
$639.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
CARBURETOR ASSY. 4
16104-MS2-670
|
$639.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, PLATE
16119-MM5-671
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, STARTER (NOT AVAILABLE)
16120-MM5-601
|
$14.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, STARTER
16121-MM5-601
|
$39.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
LEVER, STARTER
16122-MM5-601
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE
16144-MS2-601
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHAFT, STARTER LINK
16145-MM5-601
|
$16.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
LEVER, STARTER
16146-MM5-601
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
T-JOINT
16180-MM5-601
|
$25.43 | ||
|
Available to order. Add to View Price |
|||
|
#29
TUBE
16198-MS2-601
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#31
TUBE (NOT AVAILABLE)
16199-MS2-601
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, BREATHER TUBE
17369-KB4-670
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#35
RUBBER, BUSH
45159-MG9-003
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN (4X8)
93500-04008-0A
|
$0.86 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN (4X8)
93500-04008-1A
Superseded by 93500-04008-0A
|
$0.86 | ||
|
Unavailable |
|||
|
#37
SCREW, PAN (5X12)
93500-05012
Superseded by 93500-05012-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, PAN (5X12)
93500-05012-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#37
SCREW, PAN (5X12)
93500-05012-00
Superseded by 93500-05012-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#37
SCREW, PAN (5X12)
93500-05012-1A
Superseded by 93500-05012-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#38
SCREW-WASHER (4X8)
93892-04008-00
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-WASHER (4X8)
93892-04008-10
Superseded by 93892-04008-00
|
$0.48 | ||
|
Unavailable |
|||
|
#39
SCREW-WASHER (4X10)
93892-04010-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW-WASHER (4X10)
93892-04010-10
Superseded by 93892-04010-00
|
$1.00 | ||
|
Unavailable |
|||
|
#43
CLIP, TUBE (B12)
95002-02120
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
