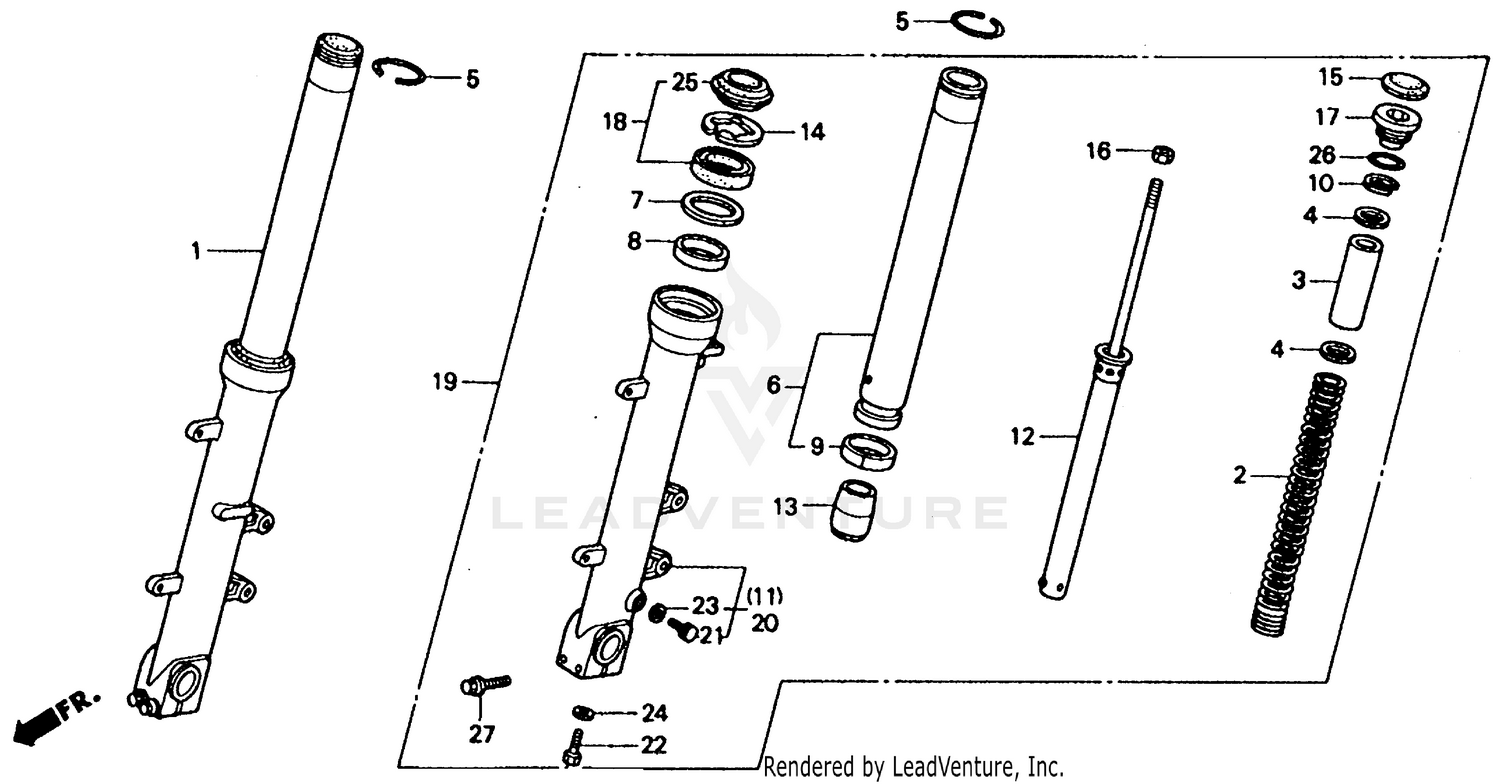

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK ASSY., R. FR. (SHOWA)
51400-MS2-003
|
$924.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, FR. FORK (SHOWA)
51401-MS2-003
|
$91.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SPRING (SHOWA)
51402-MS2-003
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING
51403-KF0-003
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
51405-MB4-003
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, FR. FORK (SHOWA)
51410-MS2-003
|
$318.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, BACK-UP
51412-MB4-003
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, GUIDE (SHOWA)
51414-KCR-003
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, GUIDE (SHOWA)
51414-MN5-003
Superseded by 51414-KCR-003
|
$16.26 | ||
|
Unavailable |
|||
|
#9
BUSH, SLIDER (SHOWA)
51415-KCR-003
|
$14.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SLIDER (SHOWA)
51415-MM8-003
Superseded by 51415-KCR-003
|
$14.21 | ||
|
Unavailable |
|||
|
#10
SEAT, SPRING (SHOWA)
51415-MS2-003
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, R. (LOWER)
51421-MS2-003
|
$333.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, FR. (SHOWA)
51430-MS2-003
|
$286.66 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIECE, OIL LOCK
51432-MS2-003
|
$34.86 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, OIL SEAL STOPPER
51447-KA4-711
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, FR. FORK (SHOWA)
51449-MS2-003
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, LOCK (SHOWA)
51451-KS7-003
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FR. FORK (SHOWA)
51455-MS2-003
|
$61.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL SET, FR. FORK
51490-MN8-305
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK ASSY., L. FR. (SHOWA)
51500-MS2-003
|
$924.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CASE, L. (LOWER)
51521-MS2-003
|
$344.63 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (6X8)
90111-MK7-671
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (8X27)
90116-383-721
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL
91254-MM8-003
|
$20.72 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (33.2X2.4)
91356-KF0-003
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X45)
96300-08045-07
|
$4.33 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (8X45) (SOURCE: VINTAGE PARTS INC.)
96500-08045-07
Superseded by 96300-08045-07
|
$4.33 | ||
|
Unavailable |
|||
