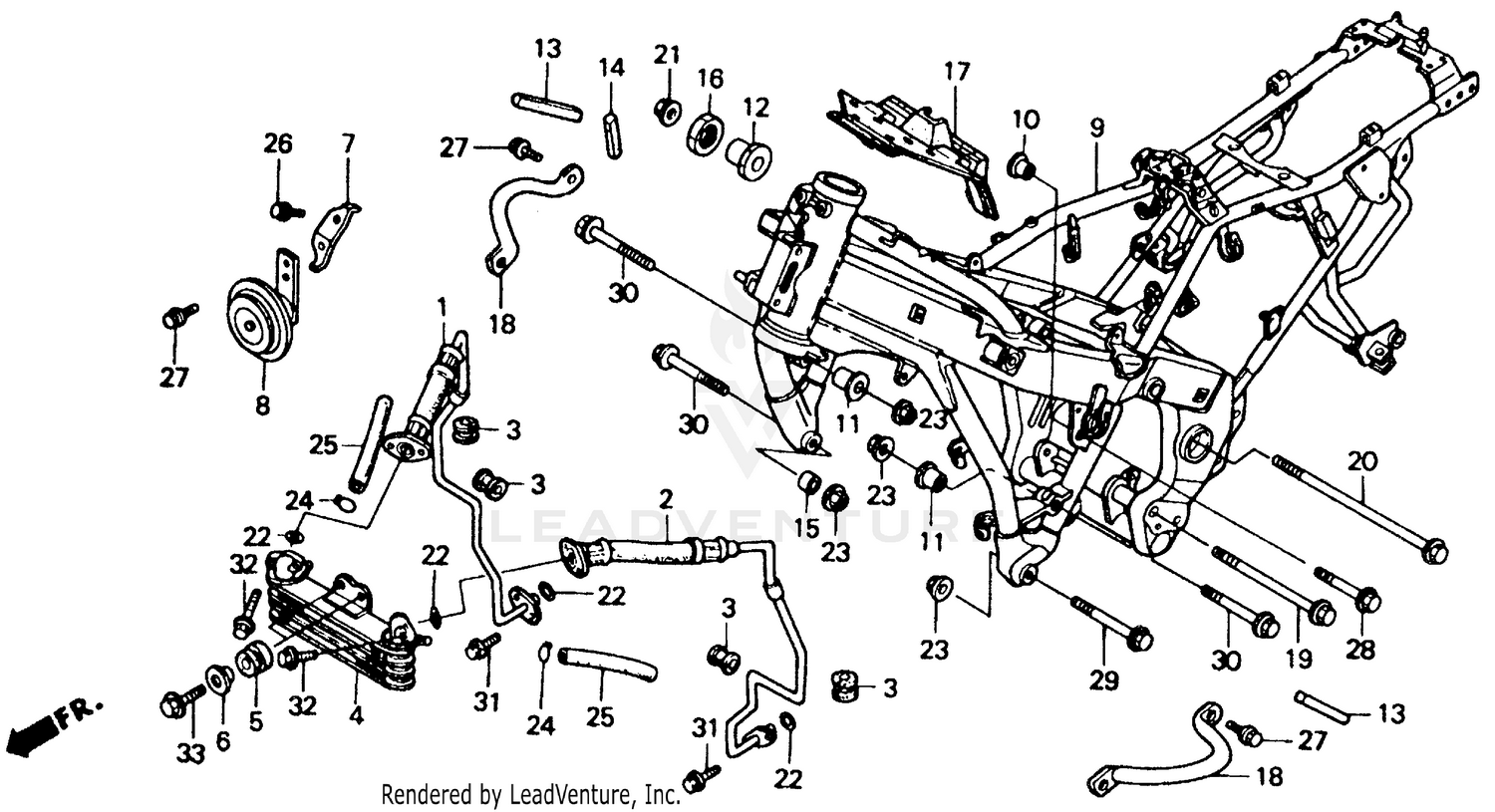

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, R. OIL HOSE
15510-MS2-000
|
$182.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, L. OIL HOSE
15515-MS2-670
|
$182.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, OIL PIPE CUSHION
15521-MA6-000
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
COOLER, OIL
15600-MS2-003
Superseded by 15600-MZ2-G01
|
$317.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
COOLER, OIL
15600-MZ2-G01
|
$317.52 | ||
|
Unavailable |
|||
|
#5
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, HORN
19056-MS2-000
Superseded by 19056-MZ2-000
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
HORN (LOW)
38120-MS2-004
|
$57.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
FRAME
50100-MS2-670
|
$2,289.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, PIVOT PLATE
50121-KV3-830
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR A, ENGINE HANGER
50209-MM5-000
|
$8.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, ADJUSTING
50217-MM5-000
|
$22.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER A, SEAL
50261-MS2-300
|
$8.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER B, SEAL
50262-MS2-300
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, FR. ENGINE HANGER (LOWER)
50356-KT8-000
|
$9.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, ACCUMULATOR
57071-SB0-800
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, HEAT GUARD
64110-MS2-670
|
$46.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, BUMPER
64327-MS2-000
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (12X239)
90102-MS2-670
|
$18.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (12X365)
90103-MM5-000
|
$21.54 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (12MM)
90304-GJ3-600
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (10X2.6) (ARAI)
91314-ME5-003
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE (10MM)
94050-10000
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, TUBE (C11)
95002-70000
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULK HOSE, VINYL (7X11X8000) (7X11X130)
95003-19008-60M
|
$34.72 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X10)
95701-06010-00
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (10X45)
95701-10045-00
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (10X70)
95701-10070-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (10X85)
95701-10085-00
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
