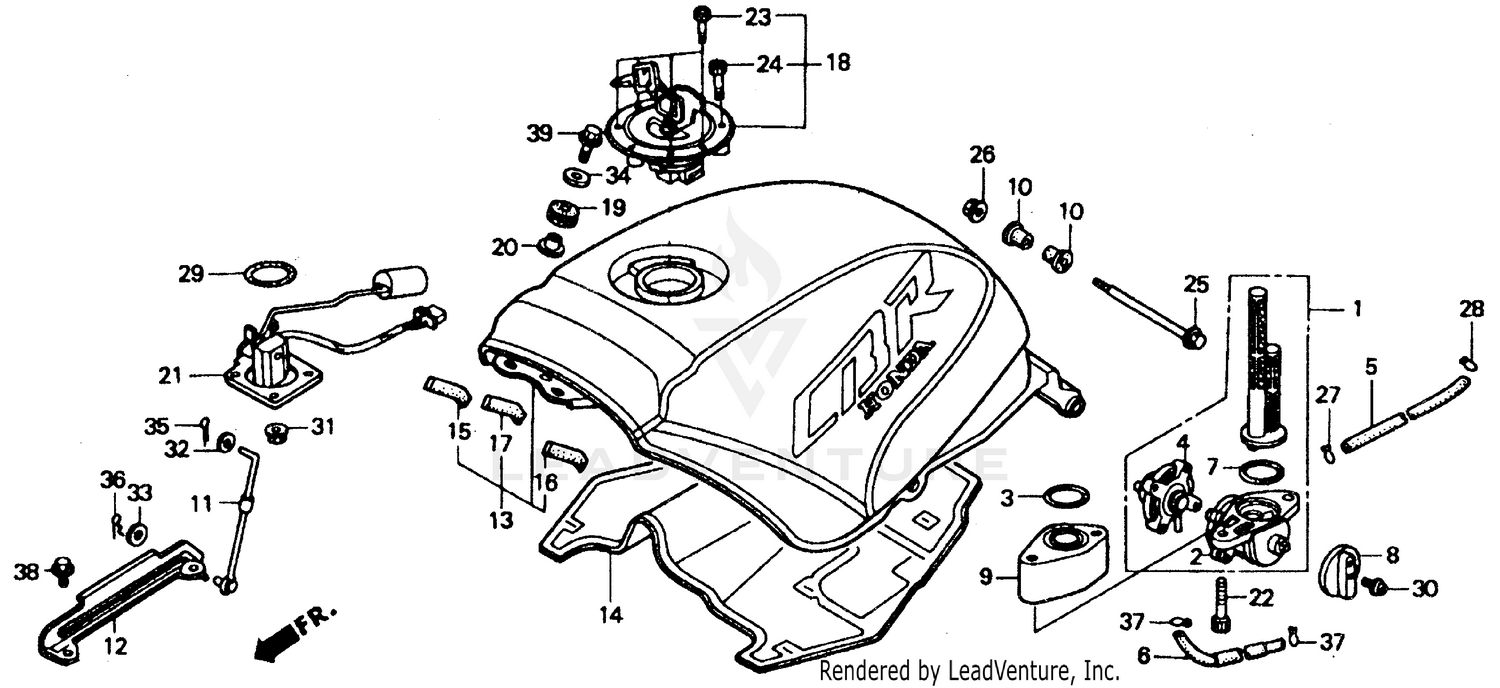

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-MS2-013
Superseded by 16950-MZ2-790
|
$175.05 | ||
|
Unavailable |
|||
|
#1
PETCOCK ASSY.
16950-MW7-601
Superseded by 16950-MZ2-790
|
$175.05 | ||
|
Unavailable |
|||
|
#1
PETCOCK ASSY.
16950-MZ2-000
Superseded by 16950-MZ2-790
|
$175.05 | ||
|
Unavailable |
|||
|
#1
PETCOCK ASSY.
16950-MZ2-010
Superseded by 16950-MZ2-790
|
$175.05 | ||
|
Unavailable |
|||
|
#1
PETCOCK ASSY.
16950-MZ2-790
|
$175.05 | ||
|
Unavailable |
|||
|
#2
BODY, PETCOCK
16951-MS2-013
Superseded by 16951-MS2-505
|
$156.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, PETCOCK
16951-MS2-505
|
$156.67 | ||
|
Unavailable |
|||
|
#3
O-RING
16952-MS2-000
|
$9.45 | ||
|
Unavailable |
|||
|
#4
COVER SET, PETCOCK
16953-ME5-005
Superseded by 16953-ME5-025
|
$51.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER SET, PETCOCK
16953-ME5-015
Superseded by 16953-ME5-025
|
$51.16 | ||
|
Unavailable |
|||
|
#4
COVER SET, PETCOCK
16953-449-751
Superseded by 16953-ME5-025
|
$51.16 | ||
|
Unavailable |
|||
|
#5
TUBE, FUEL
16955-MS2-000
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, VACUUM
16956-MS2-000
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
16958-KY6-003
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, PETCOCK
16965-MS2-010
|
$23.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER, FUEL VALVE
17504-MS2-000
|
$39.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, FUEL TANK PIVOT
17506-MB1-000
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, TANK OPEN
17515-MM4-000
|
$9.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SLIDER, TANK ROD
17516-MM5-000
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK SET, FUEL *R109* (TYPE4) (WL) (PASSION RED)
17520-MS2-870ZB
Superseded by 17520-MS2-870ZJ
|
$1,056.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK SET, FUEL *R109* (TYPE4) (WL) (PASSION RED)
17520-MS2-870ZJ
|
$1,056.33 | ||
|
Unavailable |
|||
|
#14
PROTECTOR, FUEL TANK HEAT
17525-MS2-000
|
$111.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
TAPE, R. TANK GUARD
17553-MS2-300
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
TAPE, L. TANK GUARD
17554-MS2-300
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
TAPE B, TANK GUARD
17555-MS2-300
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP COMP.,FUEL FILL
17620-MN8-760
Superseded by 17620-MT4-040
|
$296.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP COMP.,FUEL FILL
17620-MT4-010
Superseded by 17620-MT4-040
|
$296.07 | ||
|
Unavailable |
|||
|
#18
CAP COMP.,FUEL FILL
17620-MT4-020
Superseded by 17620-MT4-040
|
$296.07 | ||
|
Unavailable |
|||
|
#19
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUEL UNIT
37800-MS2-601
|
$63.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (6X45)
90008-KN8-730
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SOCKET (4X6)
90073-MR7-000
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SOCKET (4X21)
90074-KV3-700
Superseded by 90074-MT4-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SOCKET (4X21)
90074-MT4-000
|
$3.65 | ||
|
Unavailable |
|||
|
#25
BOLT, TANK HINGE
90135-MS2-000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, U (6MM)
90301-473-003
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP, TUBE (12.0MM) (B)
90661-GHB-600
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP B, TUBE (12.5MM)
90661-GHB-610
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (39.5X5)
91305-MC7-000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-WASHER (5X10)
93893-05010-07
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (5MM)
94101-05000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (5MM)
94103-05000
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN (6MM)
94103-06700
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, LOCK (5MM)
94251-05000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, LOCK (8MM)
94251-08000
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP, TUBE (B7)
95002-02070
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X25)
96001-06025-07
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
