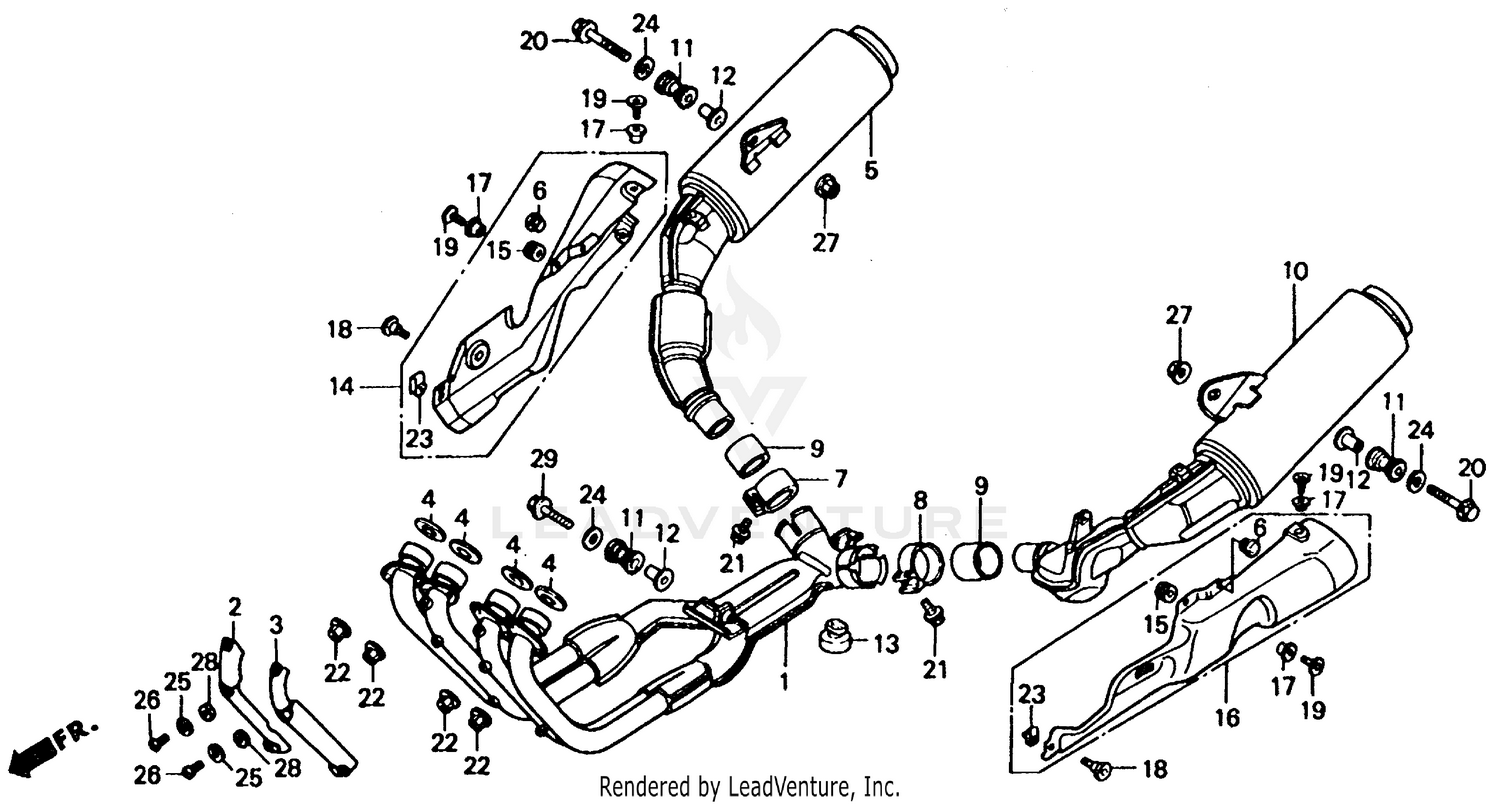

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EX.
18150-MS2-721
|
$733.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, R. EX. PIPE
18156-MS2-721
|
$77.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, L. EX. PIPE
18256-MS2-721
|
$79.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, EX. PIPE
18291-MM5-860
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER, R. EX.
18310-MS2-405
|
$633.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER, R. EX.
18310-MS2-671ZB
Superseded by 18310-MS2-405
|
$633.23 | ||
|
Unavailable |
|||
|
#6
GROMMET A, MUFFLER PROTECTOR
18366-GW8-670
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, R. MUFFLER
18371-MM5-640
|
$30.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, L. MUFFLER
18372-MM5-640
|
$36.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, MUFFLER
18391-ML0-003
|
$33.94 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUFFLER, L. EX. *NH274M* (BLIZZARD SILVER)
18410-MS2-405
|
$633.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUFFLER, L. EX. *NH274M* (BLIZZARD SILVER)
18410-MS2-671ZB
Superseded by 18410-MS2-405
|
$633.23 | ||
|
Unavailable |
|||
|
#11
RUBBER, MUFFLER SETTING
18421-MA6-000
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, MUFFLER MOUNTING
18422-MA6-000
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, STAND STOPPER
50524-MG9-000
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, R. PIVOT (LOWER) *NH264M* (HAZY GRAY METALLIC)
64385-MS2-670ZB
|
$245.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, PIVOT COVER (LOWER)
64386-MS2-000
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, L. PIVOT (LOWER) *NH264M* (HAZY GRAY METALLIC)
64395-MS2-670ZB
|
$234.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, LOCK SETTING
83119-MG9-000
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (6X11)
90106-KY2-701
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (6X14)
90118-MR1-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL FLANGE (8X45)
90158-MS9-000
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X35)
90161-ML7-000
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (7MM)
90304-MM5-000
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CLIP (6MM)
90344-MS2-000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (8.5X26)
90504-MM5-000
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING (6MM)
90567-ZV4-000
Superseded by 94111-06400
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING (6MM)
94111-06400
|
$0.30 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN (6X10)
93500-06010-4J
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE (8MM)
94050-08000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (6MM)
94101-06200
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (8X45)
95701-08045-07
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
