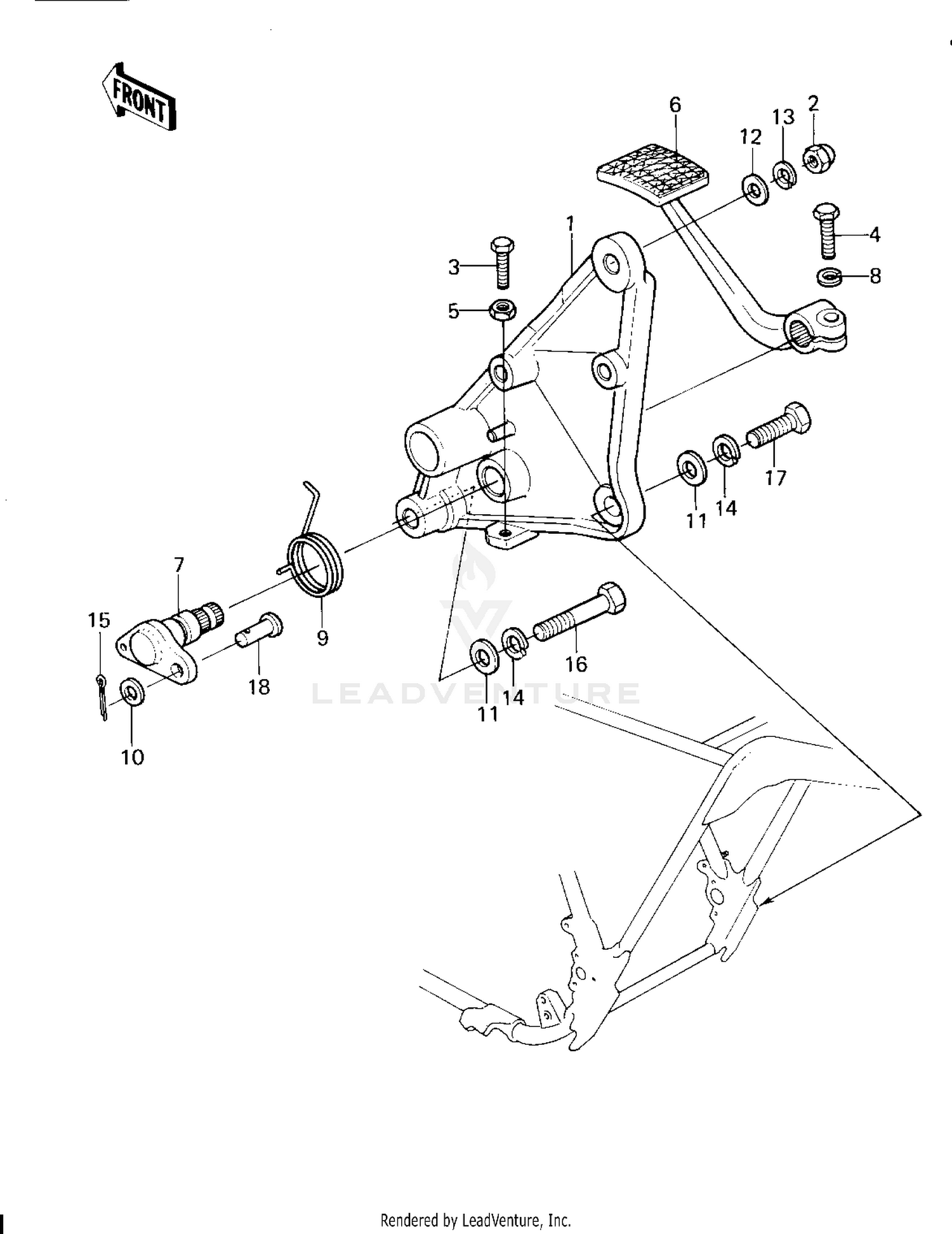

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET,BRAKE PEDAL
11034-1263
|
$155.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT,CAP,8M/M
323N0800
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-UPSET
112B0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT-SMALL-UPSET,8X25
115G0825
Superseded by 115BA0825
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
PEDAL,BRAKE
43001-1024
|
$127.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT,BRAKE
43004-1006
|
$53.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING,BRAKE PEDAL RT
92081-1088
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Unavailable |
|||
|
#14
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN-COTTER,2.0X20
550D2020
Superseded by 550AA2020
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-HEX HEAD,10X46
92007-029
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,HEX HEAD,10X25
92007-045
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN RR BRAKE CABLE
92043-107
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
