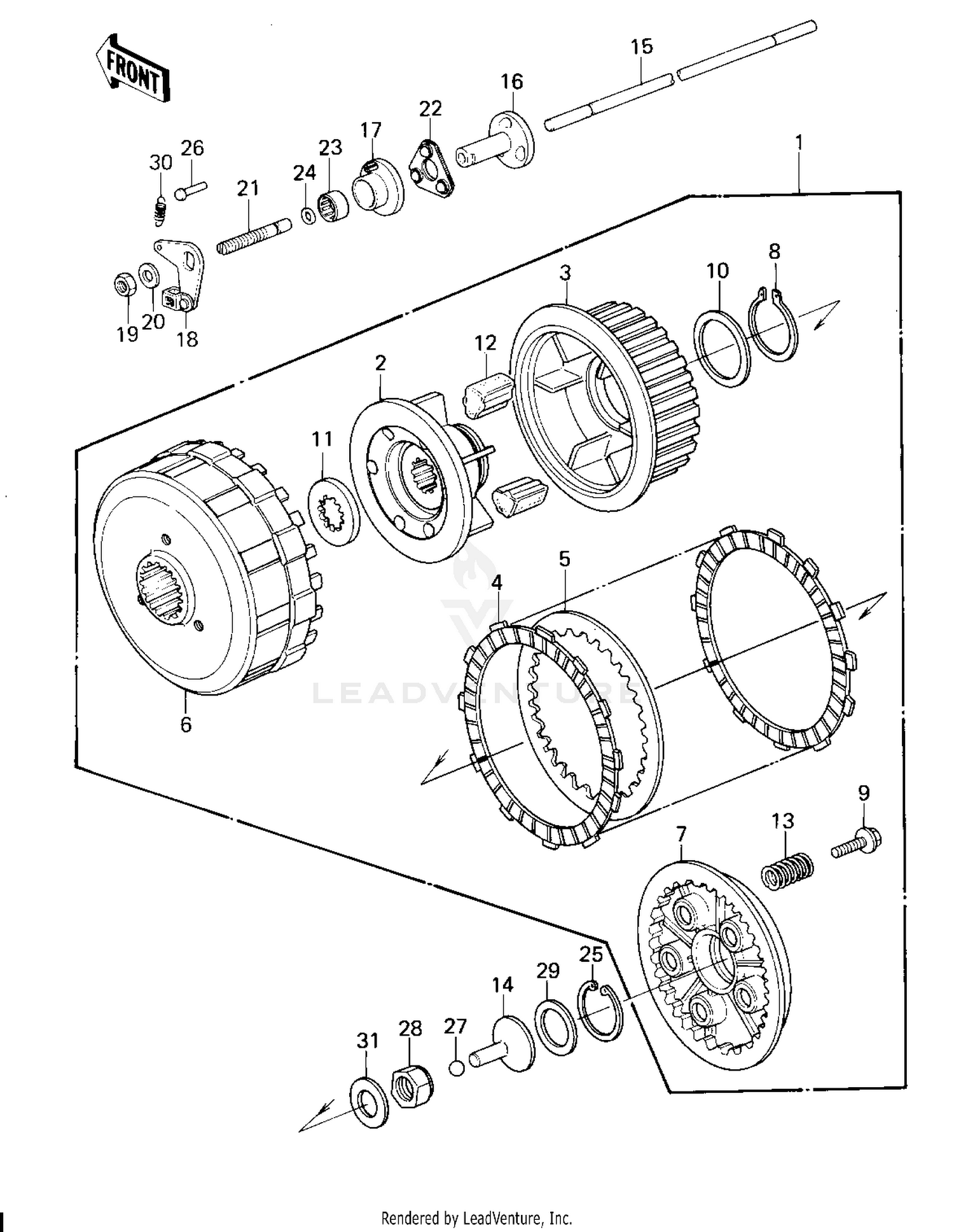

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH-ASSY
13081-1018
|
$519.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
HUB,CLUTCH,INNER
13087-1006
|
$113.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
HUB,CLUTCH,OUTER
13087-1007
|
$164.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE,FRICTION
13088-1004
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,CLUTCH,STEEL
13089-1003
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOUSING,CLUTCH
13096-1007
|
$344.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE,CLUTCH SPRING
13187-1002
|
$45.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP,50MM
480J5000
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,50.3X60X1.0
92022-1081
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,SPLINED
92022-1082
|
$27.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER,CLUTCH
92075-1088
|
$17.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING,CLUTCH
92081-1149
|
$12.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
PUSHER,CLUTCH SPRG PL
13116-022
|
$25.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD,PUSH,CLUTCH,8X328
13116-1013
|
$44.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAM,RELEASE,INNER
13119-1005
|
$48.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAM,RELEASE,OUTER
13119-1006
|
$50.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER,CLUTCH RELEASE
13236-1008
|
$14.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HEX-SMALL,8MM
318B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW,SLOTTED,8M/M
92009-1038
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
BALL ASSY,CLUTCH RELE
92045-1014
|
$11.32 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING,N,TLA1412
92046-1013
|
$45.57 | ||
|
Available to order. Add to View Price |
|||
|
#24
O RING,5MM
670B1505
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP-TYPE-C,45MM
481J4500
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
RIVET,ROUND,4X20
530C0420
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#27
"BALL-STEEL,3/8",,2017-03-16 13:30:
600A1200
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT,20M/M,CLUTCH HUB
92015-1054
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER,30X44.7X3.2
92022-1097
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING GEAR CHNG LEV
92083-011
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER
92125-002
|
$15.86 | ||
|
Available to order. Add to View Price |
|||
