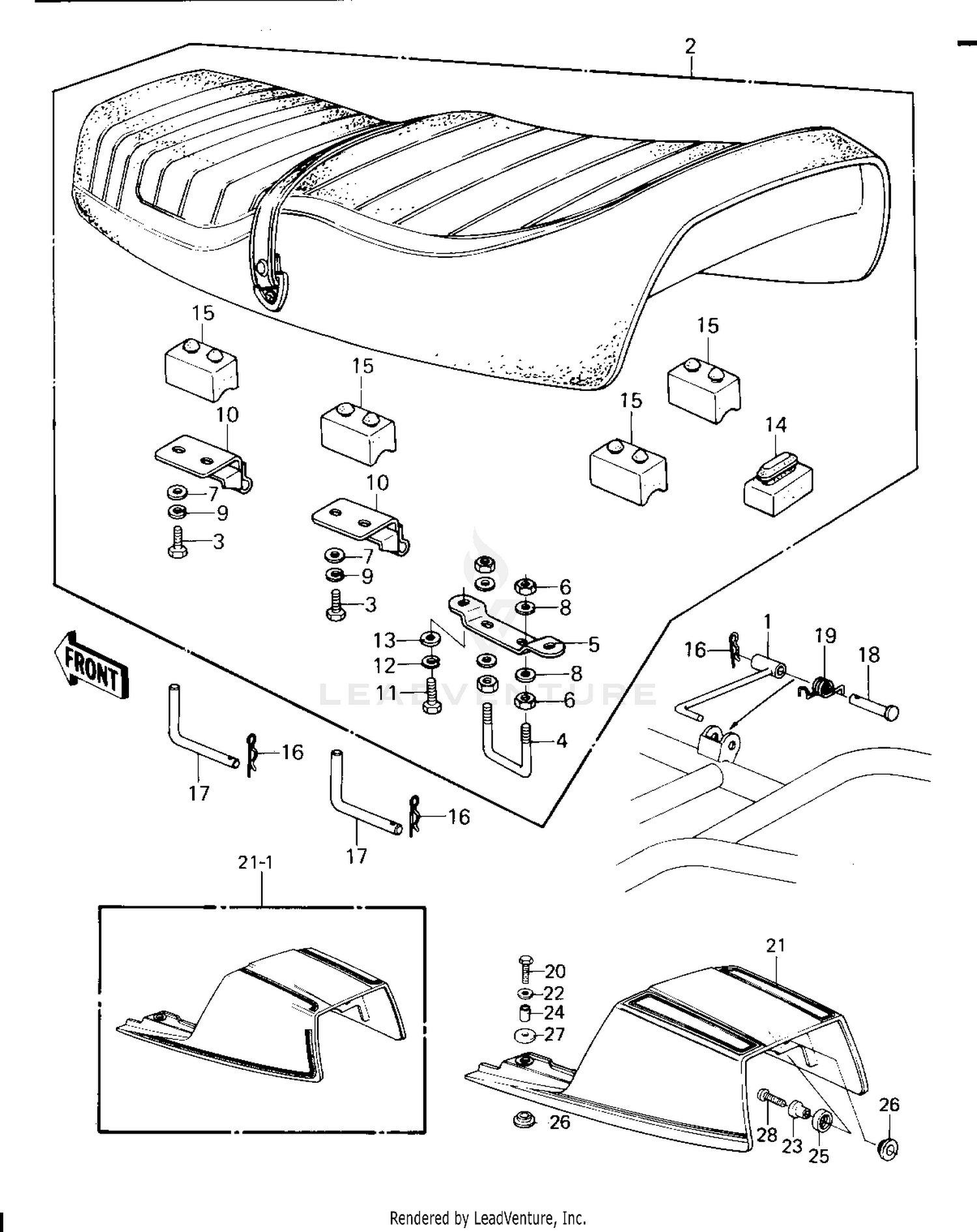

Seat/seat Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY,SEAT STAND
35011-1018
|
$9.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
DESC-SEAT-ASSY,DUAL
53001-1358
|
$670.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
DESC-SEAT-ASSY,DUAL
53001-1358
|
$670.94 | ||
|
Unavailable |
|||
|
#3
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
CATCH, SEAT
53056-002
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT CATCH
53058-001
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#9
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
HINGE,SEAT
53009-1011
|
$13.61 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Unavailable |
|||
|
#12
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#13
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#14
DAMPER
92075-099
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER RUBBER,SEAT
92075-139
|
$11.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
COTTER PIN
92041-003
|
$5.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN-SNAP,1.2X21.2
554A0600
Superseded by 554DA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN,SEAT PIVOT
92043-1021
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN,SEAT STAND
92043-1045
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING,SEAT STAND
92081-1100
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-UPSET
112B0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER,SEAT,L.S.BLUE
14025-1064-C1
|
$360.14 | ||
|
Available to order. Add to View Price |
|||
|
#21-1
COVER,SEAT,EBONY
14025-1064-8G
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,7X24X1.6
92022-228
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR,SEAT COVER
92027-1122
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR,6.8X10X12
92027-241
Superseded by 92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER,SEAT COVER FIT
92075-1097
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER,MALE
92075-174
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER,FEMALE
92075-175
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
