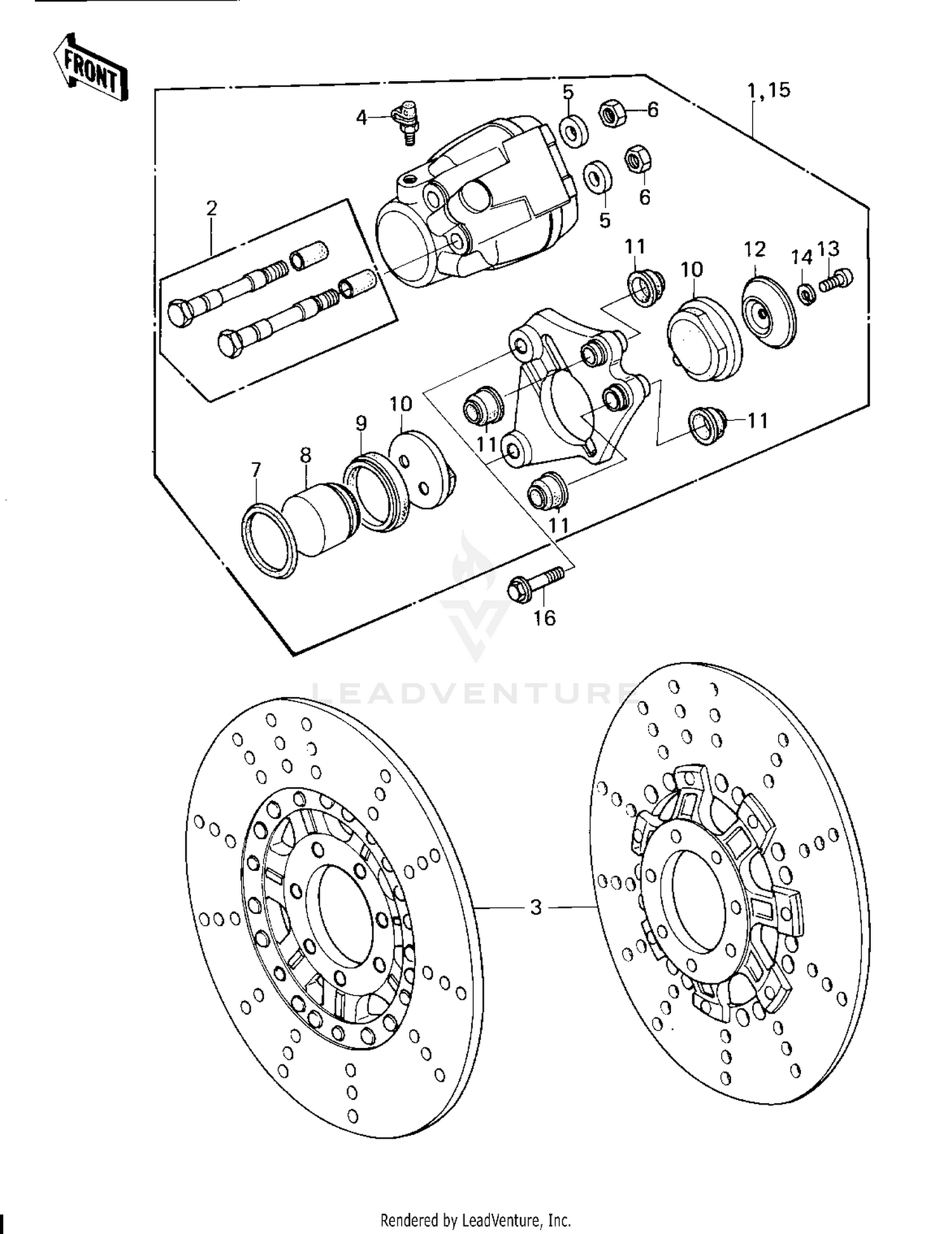

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY,FRONT,LH
43041-1016
|
$422.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT ASSY,CALIPER
13234-1002
|
$53.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
DISC,FR,SILVER
41080-1123
|
$587.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
BLEEDER SET
43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG
43088-002
|
$10.38 | ||
|
Unavailable |
|||
|
#6
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
PACKING,PISTON SEAL
43049-002
Superseded by 43049-1098
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON,BRAKE,42M/M
43020-1012
|
$104.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEALD,RUBBER
43054-003
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAD SET
43082-1004
|
$85.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUST SHILD,SHAFT
43052-005
|
$12.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
43040-004
|
$9.65 | ||
|
Unavailable |
|||
|
#13
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
CALIPER ASSY,FRONT,RH
43041-1017
|
$422.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,HEX HEAD,10X44
92001-1299
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,HEX HEAD,10X44
92001-1299
|
$6.47 | ||
|
Unavailable |
|||
