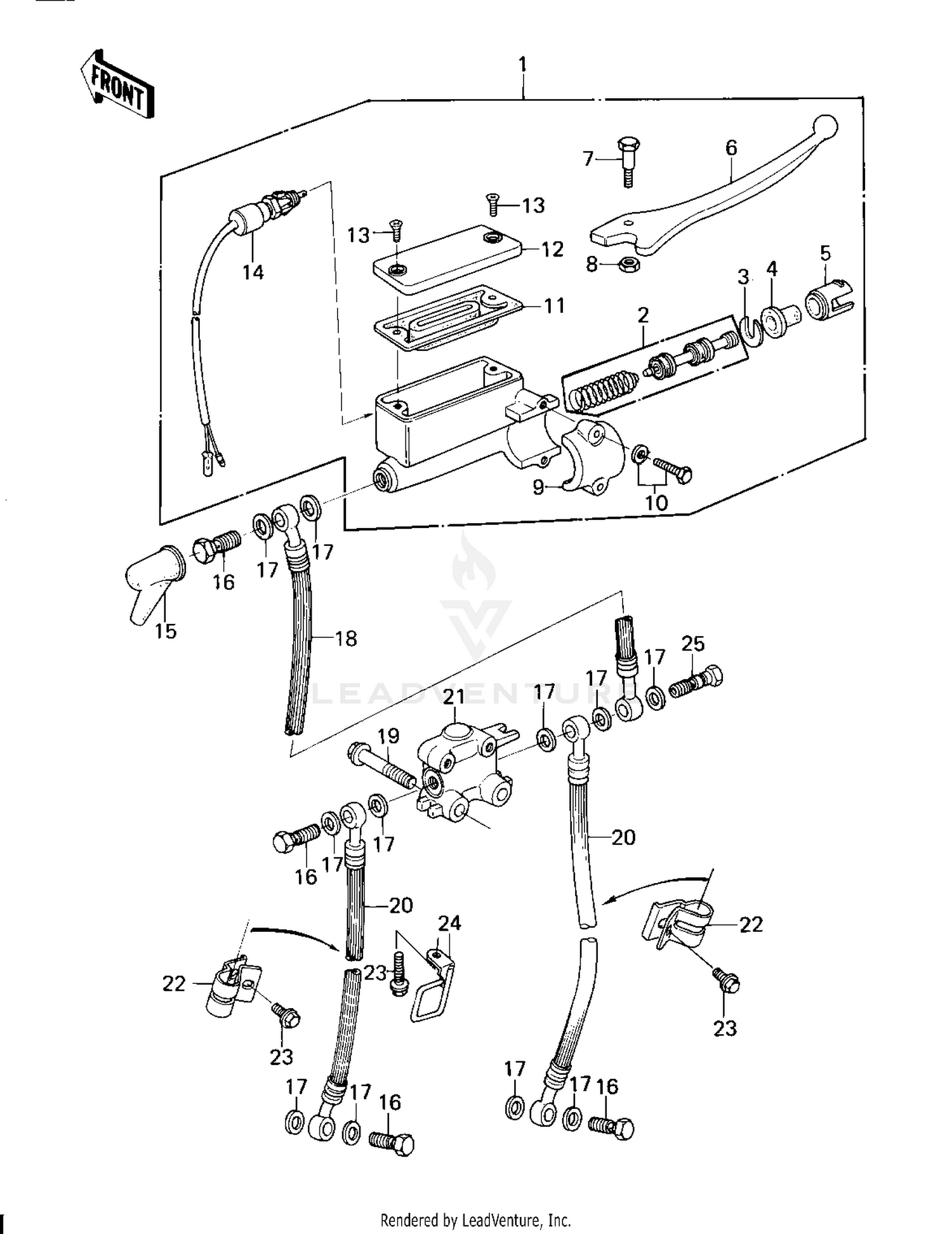

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY,FRONT
43015-1060
|
$449.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON-COMP-BRAKE
43020-1023
|
$91.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPER,PISTON
43022-1001
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
DUST COVER
49016-1010
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
LINER,PISTON
14008-1007
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER,FRONT BRAKE
46092-1004
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,CLUTCH LEV FITT
92001-1056
|
$14.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER,MASTER CYLINDR
43034-1001
|
$33.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,HEX HEAD,6X25
43033-003
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM
43028-1008
|
$35.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP,OIL CUP
43026-1012
|
$30.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,COUNTERSUNK HED
92001-1055
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH,BRAKE
27010-1028
|
$32.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT,DUST
49006-1041
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,BRAKE
43059-1042
|
$136.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-FLANGED,8X45
130G0845
Superseded by 130BA0845
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE-BRAKE
43059-1175
Superseded by 43059-1524
|
$122.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT,BRAKE
43061-1001
|
$55.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET,BRAKE HOSE
11034-1284
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-FLANGED,6X8
130B0608
Superseded by 130AA0608
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET,SPEED CABLE
11034-1285
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,OIL,L=37
92002-1909
Superseded by 92153-0628
|
$11.41 | ||
|
Available to order. Add to View Price |
|||
