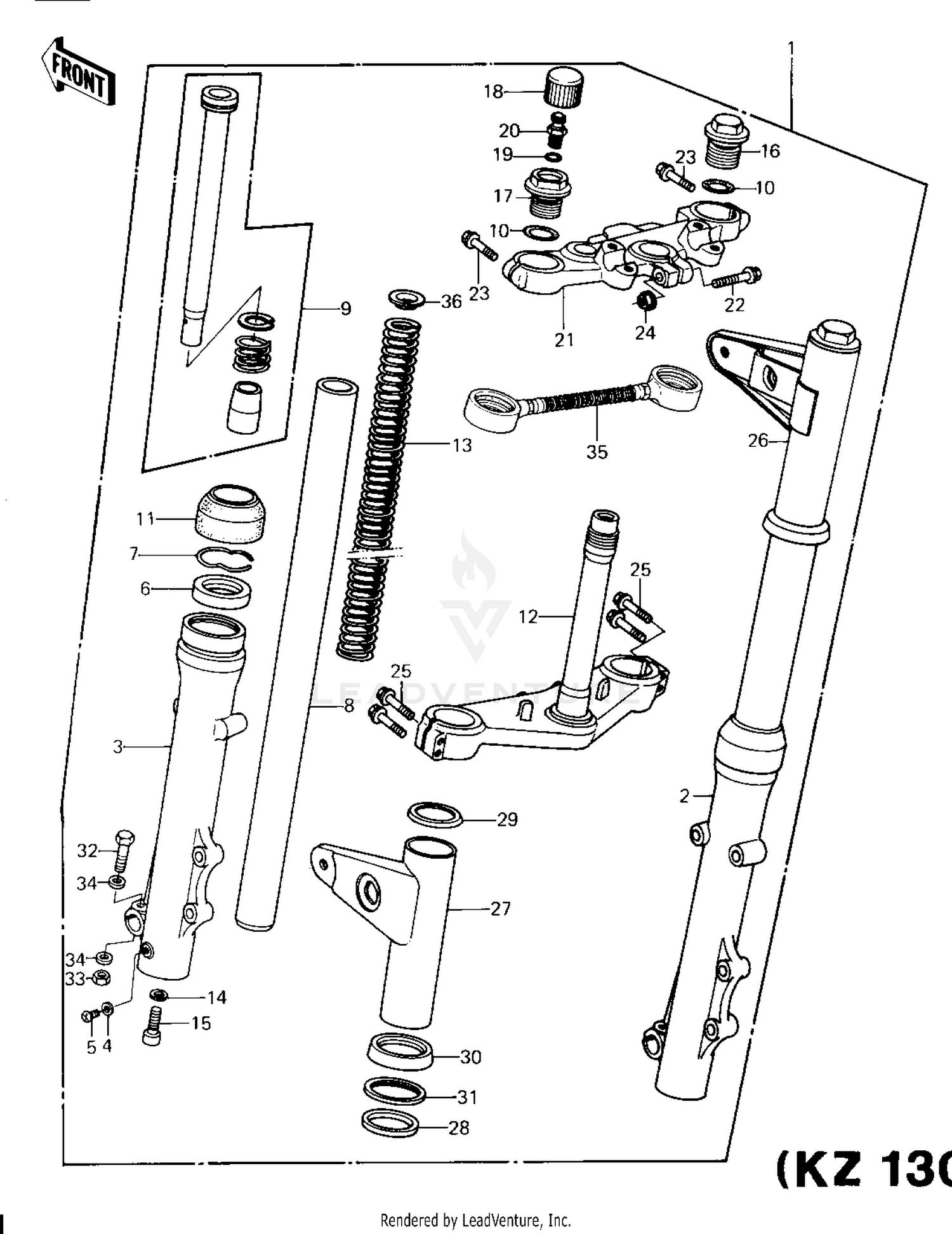

Front Fork (kz1300-a3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK-FRONT
44001-1267
|
$1,054.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE,RH,FORK OUTER
44006-1043
|
$342.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE,LH,FORK OUTER
44005-1043
|
$517.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL-OIL,FORK OUTER TUBE
92049-1043
Superseded by 92049-1356
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING-SNAP
92033-1036
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE FORK INNER
44013-1057
|
$397.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYLINDER-FORK
44022-1029
|
$114.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
0 RING,FORK TOP CAP
92055-1050
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUST SHIELD,FORK
92093-1023
|
$17.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
STEM,STEERING
44037-1016
|
$479.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING,FORK
44026-1028
|
$75.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FORK CYLINDER
92001-1309
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP FORK TOP RH
44029-1023
|
$45.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP FORK TOP LH
44029-1024
|
$52.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP,AIR VALVE
11012-1241
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING,6MM
92055-1094
Superseded by 670B1506
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE AIR
16126-1052
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
HEAD,STEERING STEM
44039-1013
|
$335.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT FLANGED 8X55
92001-1398
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,10X45
92001-1189
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT,8M/M
44007-1002
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,FLANGED,8X40
92001-1188
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER FORK RH
44033-1064
|
$120.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER FORK LH
44033-1063
|
$117.71 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER,FORK COVER
92075-1155
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#29
GUIDE,FORK COVER,UPER
13169-1164
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#30
GUIDE,FORK COVER,LOWE
13169-1163
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
GUIDE,FORK COVER DMPE
13169-1154
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT-SMALL-UPSET,8X55
114G0855
Superseded by 115G0855
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE ASSY FRONT FORK
51044-1005
|
$155.31 | ||
|
Available to order. Add to View Price |
|||
|
#36
GUIDE-FORK SPRING
44028-1003
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
