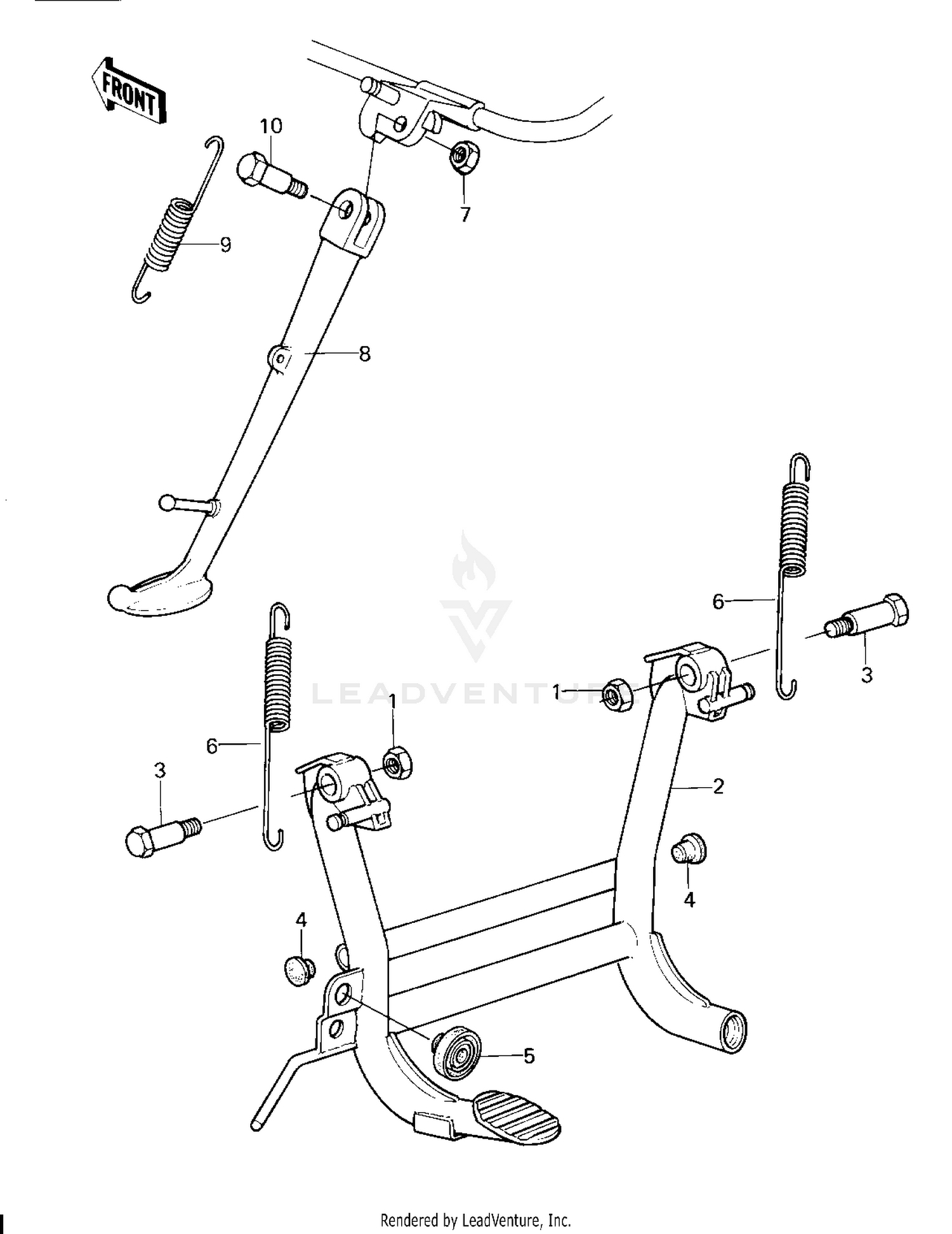

Stands Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAND-MAIN
34011-1021
|
$245.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,CENTER STAND
92001-1214
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG,FRAME END,12X13
92066-1034
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
92075-015
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING,MAIN STAND
92081-1154
|
$11.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Unavailable |
|||
|
#8
STAND-SIDE
34024-1023
|
$120.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING,STAND
34025-005
Superseded by 92145-0106
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,SIDE STAND
92003-079
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
