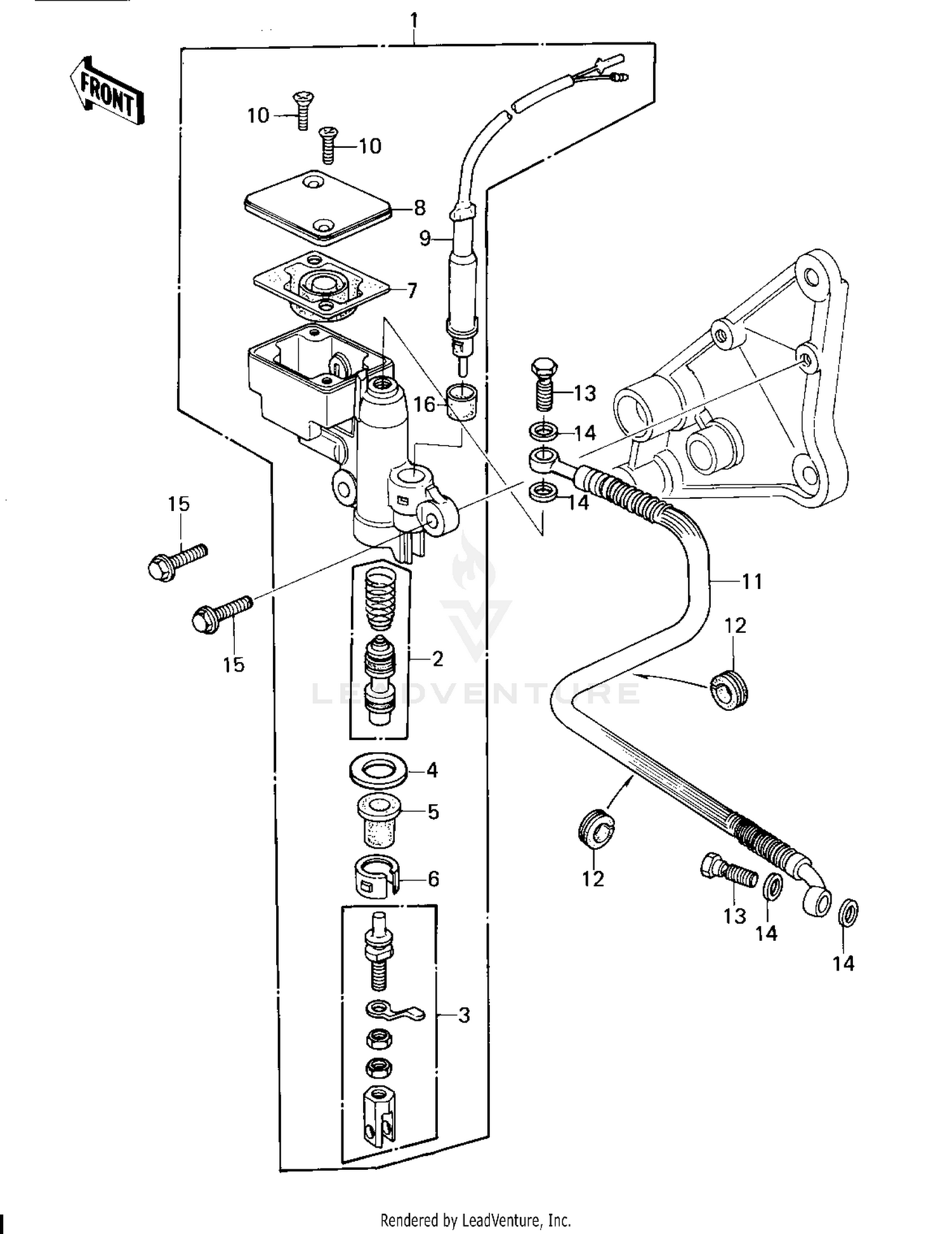

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY,REAR
43015-1062
|
$594.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON-COMP-BRAKE
43020-1024
|
$66.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROD ASSY,BRAKE
43010-1001
|
$66.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER,PISTON
43022-1002
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUST COVER
49016-1026
|
$13.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER,DUST COVER
43022-1003
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM
43028-1007
|
$32.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP,OIL CUP
43026-1013
|
$45.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH,REAR BRAKE
27010-1027
|
$107.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW,COUNTERSUNK HED
92001-1055
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE-BRAKE,L=620
43059-1177
|
$59.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET,HOSE CLAMP
43064-007
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FLANGED,8X28
92001-1095
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSHING
92092-1007
|
$13.78 | ||
|
Available to order. Add to View Price |
|||
