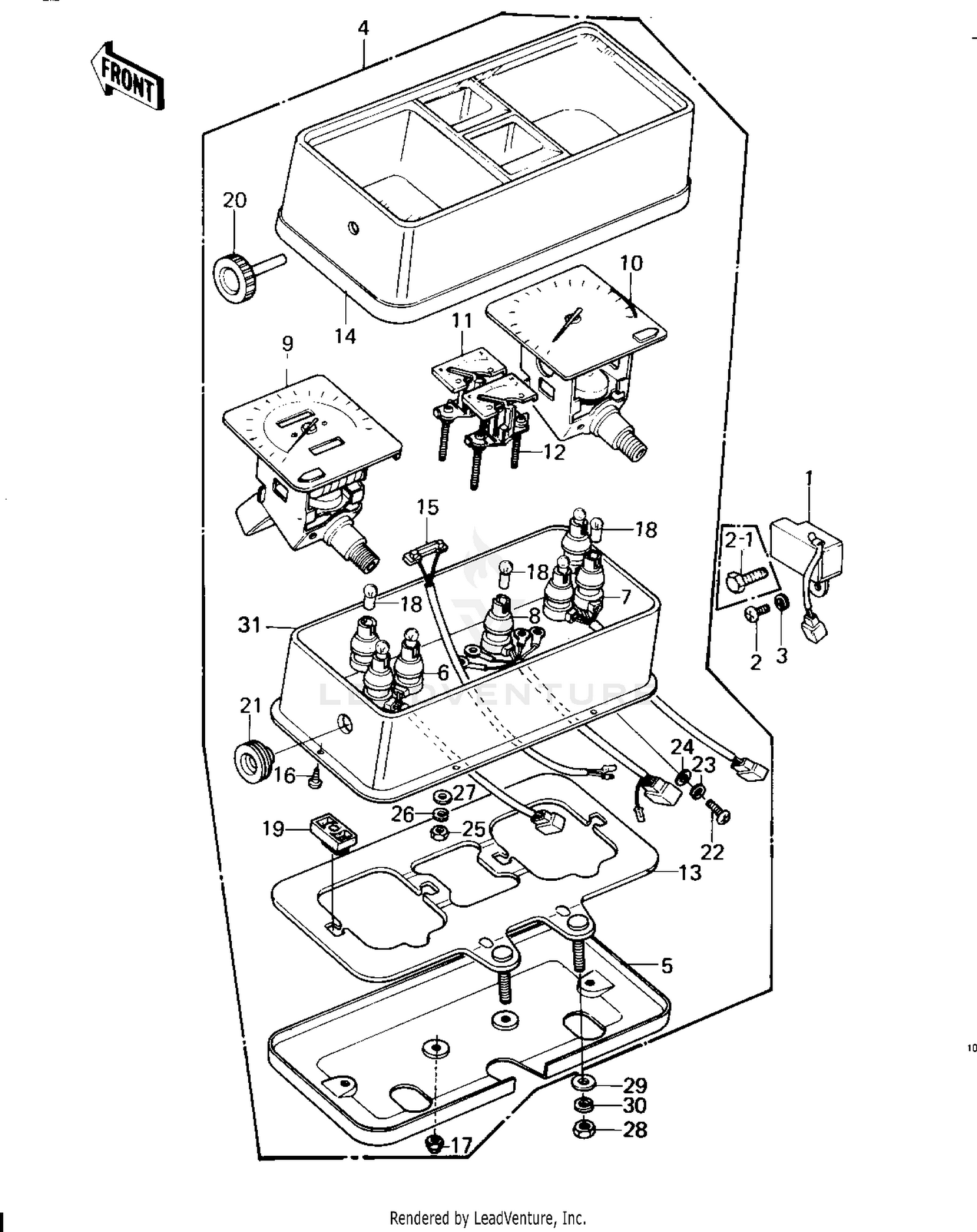

Meters Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REGULATOR,VOLTAGE
21066-1006
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
METER ASSY,MPH
25001-1299
|
$806.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
METER ASSY,MPH
25001-1147
|
$958.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
METER ASSY,MPH
25001-1147
|
$958.66 | ||
|
Unavailable |
|||
|
#4
25001-1148 (Canada)
25001-1088
|
|||
|
Unavailable |
|||
|
#4
METER ASSY,KPH (Canada)
25001-1148
|
|||
|
Unavailable |
|||
|
#5
COVER,METER,LOWER
14025-1098
|
$43.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
SOCKET ASSY,SPEEDOMET
23008-1033
|
$29.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
SOCKET ASSY,TACHOMETE
23008-1034
|
$29.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
SOCKET ASSY,FUEL & TE
23008-1035
|
$22.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPEEDOMETER ASSY,MPH
25005-1044
|
$325.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPEEDOMETER UNIT,MPH
25005-1069
|
$275.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPEEDOMETER UNIT,KPH (Canada)
25005-1051
|
|||
|
Unavailable |
|||
|
#10
TACHOMETER UNIT
25015-1037
|
$434.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
METER,FUEL
28011-1003
|
$102.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
METER,TEMPERATURE
28011-1007
|
$102.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
METER,TEMPERATURE
28011-1007
|
$102.89 | ||
|
Unavailable |
|||
|
#13
BRACKET,METER
25008-1015
|
$40.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,METER,UPPER
25023-1010
|
$230.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR,DISTANCE
27010-1032
|
$34.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,TAPPING
92008-012
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT-CAP,5MM
322N0500
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULB 12V 3W
92069-018
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER,METER BRACKET
92075-1140
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
KNOB,TRIP
92077-1008
|
$8.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL,TRIP KNOB
92093-1029
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-PLAIN-SMALL,4MM
410B0400
Superseded by 410AA0400
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT-HEX,4MM
311B0400
Superseded by 311AA0400
|
$0.52 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Unavailable |
|||
|
#27
WASHER-PLAIN-SMALL,4MM
410B0400
Superseded by 410AA0400
|
$0.48 | ||
|
Unavailable |
|||
|
#28
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER,METER CASE
14025-1805
|
$155.56 | ||
|
Available to order. Add to View Price |
|||
