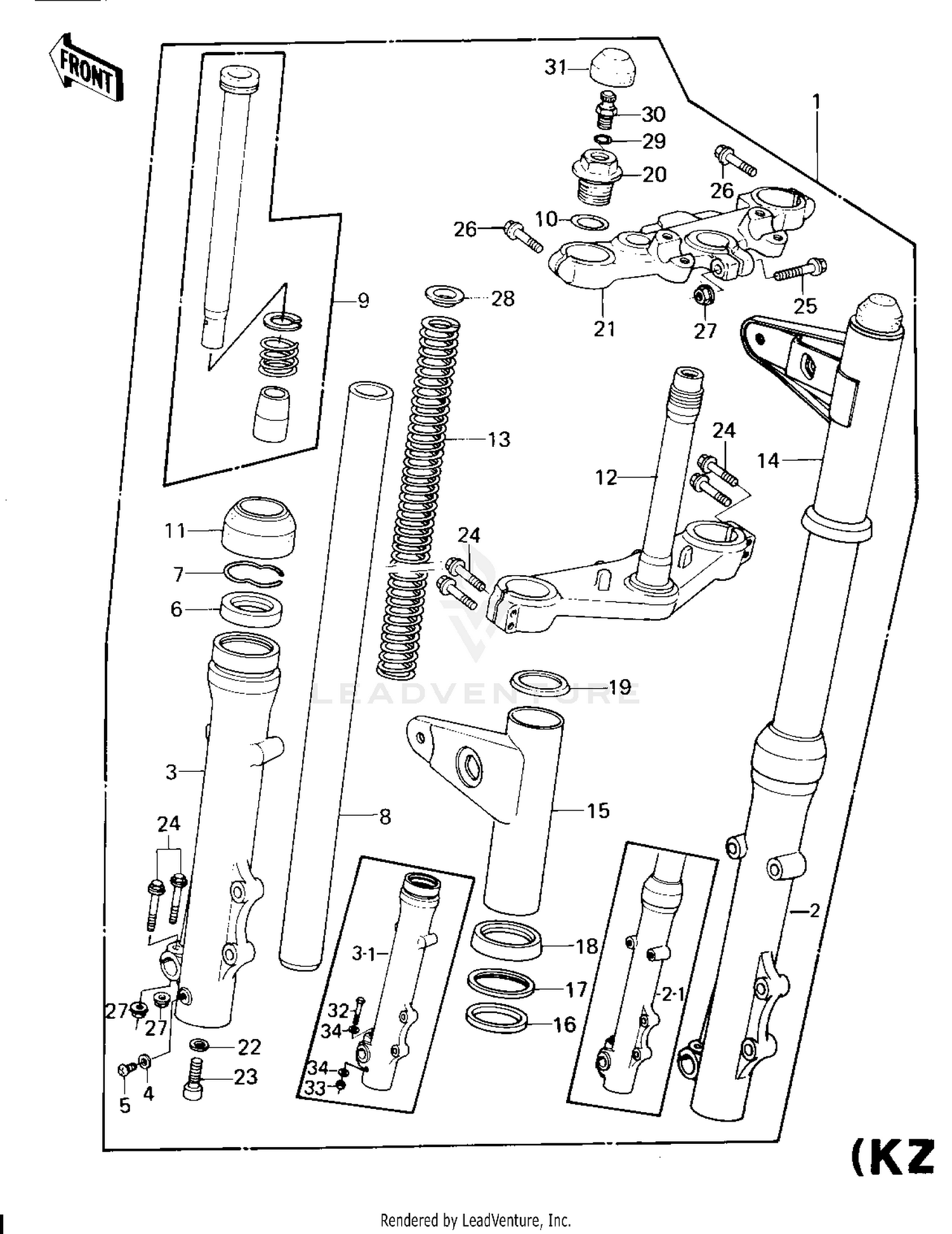

Front Fork (kz1300-a1/a2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK-FRONT
44001-1227
|
$1,212.07 | ||
|
Available to order. Add to View Price |
|||
|
#1
FORK-FRONT
44001-1227
|
$1,212.07 | ||
|
Unavailable |
|||
|
#2
TUBE,RH,FORK OUTER
44006-1022
|
$261.04 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
TUBE,RH,FORK OUTER
44006-1043
|
$342.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE,LH,FORK OUTER
44005-1022
|
$284.44 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
TUBE,LH,FORK OUTER
44005-1043
|
$517.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL-OIL,FORK OUTER TUBE
92049-1043
Superseded by 92049-1356
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING-SNAP
92033-1036
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE,FORK INNER
44013-1019
|
$418.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYLINDER-FORK
44022-1029
|
$114.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
0 RING,FORK TOP CAP
92055-1050
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUST SHIELD,FORK
92093-1023
|
$17.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
STEM,STEERING
44037-1016
|
$479.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING,FORK
44026-1028
|
$75.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,R.H,FORK
44033-1036
|
$127.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,L.H,FORK
44033-1037
|
$141.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER,FORK COVER
92075-1155
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE,FORK COVER DMPE
13169-1154
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE,FORK COVER,LOWE
13169-1163
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE,FORK COVER,UPER
13169-1164
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP,FORK TOP
44029-1008
|
$50.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
HEAD,STEERING STEM
44039-1013
|
$335.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,FORK CYLINDER
92001-1186
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,FLANGED,8X40
92001-1188
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,FLANGED,8X40
92001-1188
|
$8.33 | ||
|
Unavailable |
|||
|
#25
BOLT,HEX HEAD,8X53
92001-1060
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT,10X45
92001-1189
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT,8M/M
44007-1002
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT,8M/M
44007-1002
|
$3.48 | ||
|
Unavailable |
|||
|
#28
GUIDE-FORK SPRING
44028-1003
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#29
0 RING,AIR VALVE
92055-1018
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#30
VALVE ASSY,AIR
16126-1003
|
$40.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP,RUBBER,FORK TOP
44029-1009
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT-SMALL-UPSET,8X55
114G0855
Superseded by 115G0855
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
