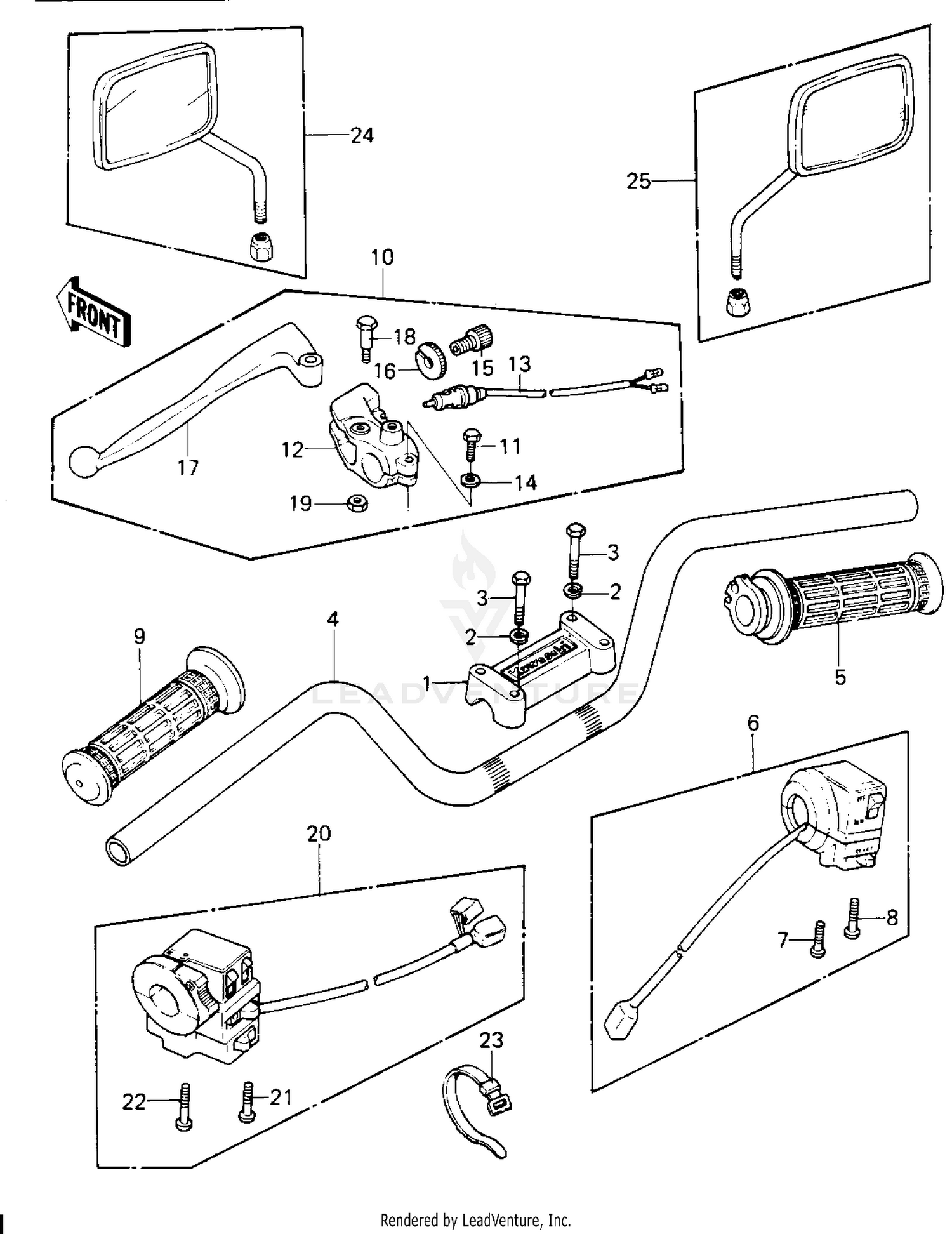

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER,HANDLEBAR
46012-1007
|
$27.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT 8X38
92001-1405
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
HANDLEBAR
46003-1030
|
$117.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP-ASSY,THROTTLE
46019-1013
|
$39.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP-ASSY,THROTTLE
46019-1013
|
$39.47 | ||
|
Unavailable |
|||
|
#6
HOUSING ASSY,R.H
46091-1058
|
$158.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOUSING ASSY,R.H
46091-1080
|
$250.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-PAN-CROS
220B0530
Superseded by 220AA0530
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW-PAN-CROS
220B0540
Superseded by 220AA0540
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP,LH
46075-1020
|
$24.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP,LH
46075-1020
|
$24.08 | ||
|
Unavailable |
|||
|
#10
LEVER ASSY,CLUTCH
46076-1006
|
$36.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX HEAD 6X22
110N0622
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER,CLUTCH LEVER
13091-1046
|
$48.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH,CLUTCH
27043-002
|
$38.34 | ||
|
Unavailable |
|||
|
#14
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW,CABLE ADJUST,8MM
46055-003
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT,CABLE ADJUST LOCK,8MM
46056-005
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER,CLUTCH
46092-1005
|
$27.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,CLUTCH LEVER FIT
92001-1075
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOUSING ASSY,L.H
46091-1059
|
$281.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-PAN-CROS
220B0535
Superseded by 220AA0535
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN-CROSS,5X45
220B0545
Superseded by 220AA0545
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
MIRROR-ASSY,LH&RH
56001-5006
|
$172.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
MIRROR-ASSY,LH&RH
56001-1089
Superseded by 56001-5006
|
$172.05 | ||
|
Unavailable |
|||
|
#25
MIRROR-ASSY,LH&RH
56001-5006
|
$172.05 | ||
|
Unavailable |
|||
|
#25
MIRROR-ASSY,LH&RH
56001-1090
Superseded by 56001-5006
|
$172.05 | ||
|
Unavailable |
|||
