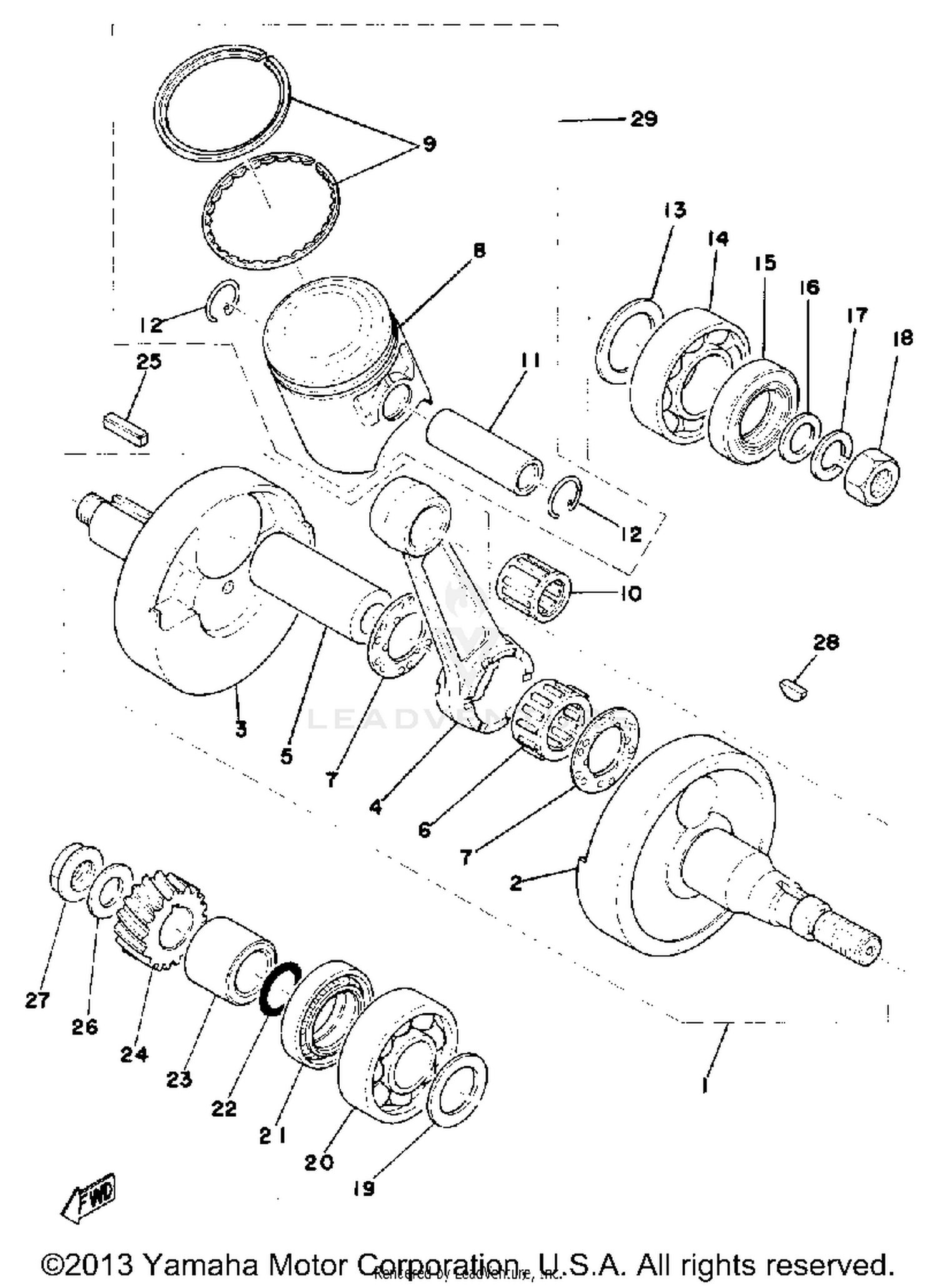

Crankshaft-piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
559-11400-01-00
|
$148.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
1W1-11412-01-00
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
525-11422-00-00
|
$70.50 | ||
|
Unavailable |
|||
|
#4
ROD, CONNECTING 1
25V-11651-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CRANK 1
3M5-11681-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, CYLINDER.
93310-42277-00
Superseded by 93310-422C8-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-22248-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON STD
443-11631-03-96
|
$189.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (66.50MM 2ND
443-11636-03-00
|
$189.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00
443-11638-03-00
|
$96.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75
443-11637-03-00
|
$109.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25 (66.25MM 1ST
443-11635-03-00
|
$189.99 | ||
|
Unavailable |
|||
|
#9
PISTON RINGSET STD
443-11610-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST (1ST O.S)
443-11610-10-00
|
$88.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND (2ND O.S)
443-11610-20-00
|
$39.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD (3RD O.S)
443-11610-30-00
|
$39.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH (4TH O.S0)
443-11610-40-00
|
$88.99 | ||
|
Unavailable |
|||
|
#10
BEARING
93310-216E1-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
251-11633-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-17025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM, CRANK 1
132-11561-00-03
|
$4.55 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
132-11561-00-05
|
$4.65 | ||
|
Unavailable |
|||
|
#14
BEARING (B6205C4)
93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL, SD-TYPE
93102-25061-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-12535-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEXAGON
90170-12347-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM, CRANK 1
136-11561-00-04
|
$9.49 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-05
|
$8.49 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-06
|
$11.49 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-07
|
$5.99 | ||
|
Unavailable |
|||
|
#20
BEARING
93306-30421-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-180A6-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-20488-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, PRI DRIVE
401-16111-00-30
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
KEY, STRAIGHT
90282-05005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PISTON 3 O/S 0.75
443-11637-03-00
|
$109.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00
443-11638-03-00
|
$96.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT STD
443-11630-00-00
|
$31.88 | ||
|
Unavailable |
|||
|
#
PISTON KIT 1ST
443-11630-10-00
|
$31.88 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND
443-11630-20-00
|
$31.88 | ||
|
Unavailable |
|||
