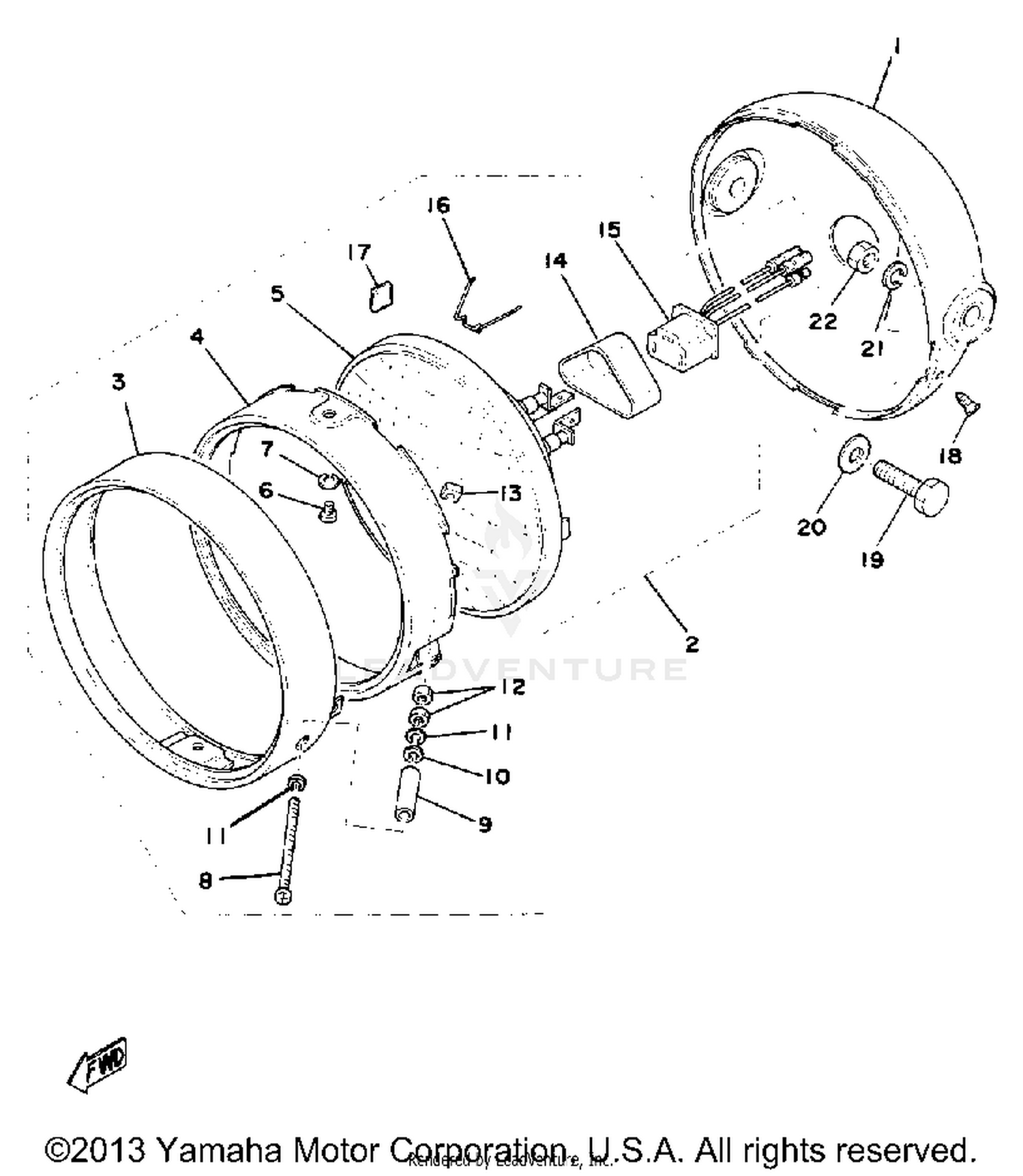

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY, HEADLIGHT
498-84130-60-20
|
$42.99 | ||
|
Unavailable |
|||
|
#2
PULLY, ALTERNATOR 2 GROOVE
UNA-VAILA-BL-EI
|
|||
|
Unavailable |
|||
|
#3
RIM, HEADLIGHT
498-84115-60-00
|
$78.99 | ||
|
Unavailable |
|||
|
#4
RING, RETAINING
498-84195-60-00
|
$45.99 | ||
|
Unavailable |
|||
|
#5
LENS ASSEMBLY
498-84120-61-00
|
$88.99 | ||
|
Unavailable |
|||
|
#6
RING, MOUNTING
438-84194-60-00
|
$4.50 | ||
|
Unavailable |
|||
|
#7
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, RIM ADJUSTING
90157-04001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, SCREW
438-84133-60-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
WASHER, PLAIN
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95301-04600-00
Superseded by 95307-04600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, SOCKET
341-84397-61-00
|
$26.99 | ||
|
Unavailable |
|||
|
#15
SOCKET
371-84312-60-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, SET
507-84324-60-00
Superseded by 1UY-84124-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
498-84128-60-00
|
$21.59 | ||
|
Unavailable |
|||
|
#18
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97303-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
