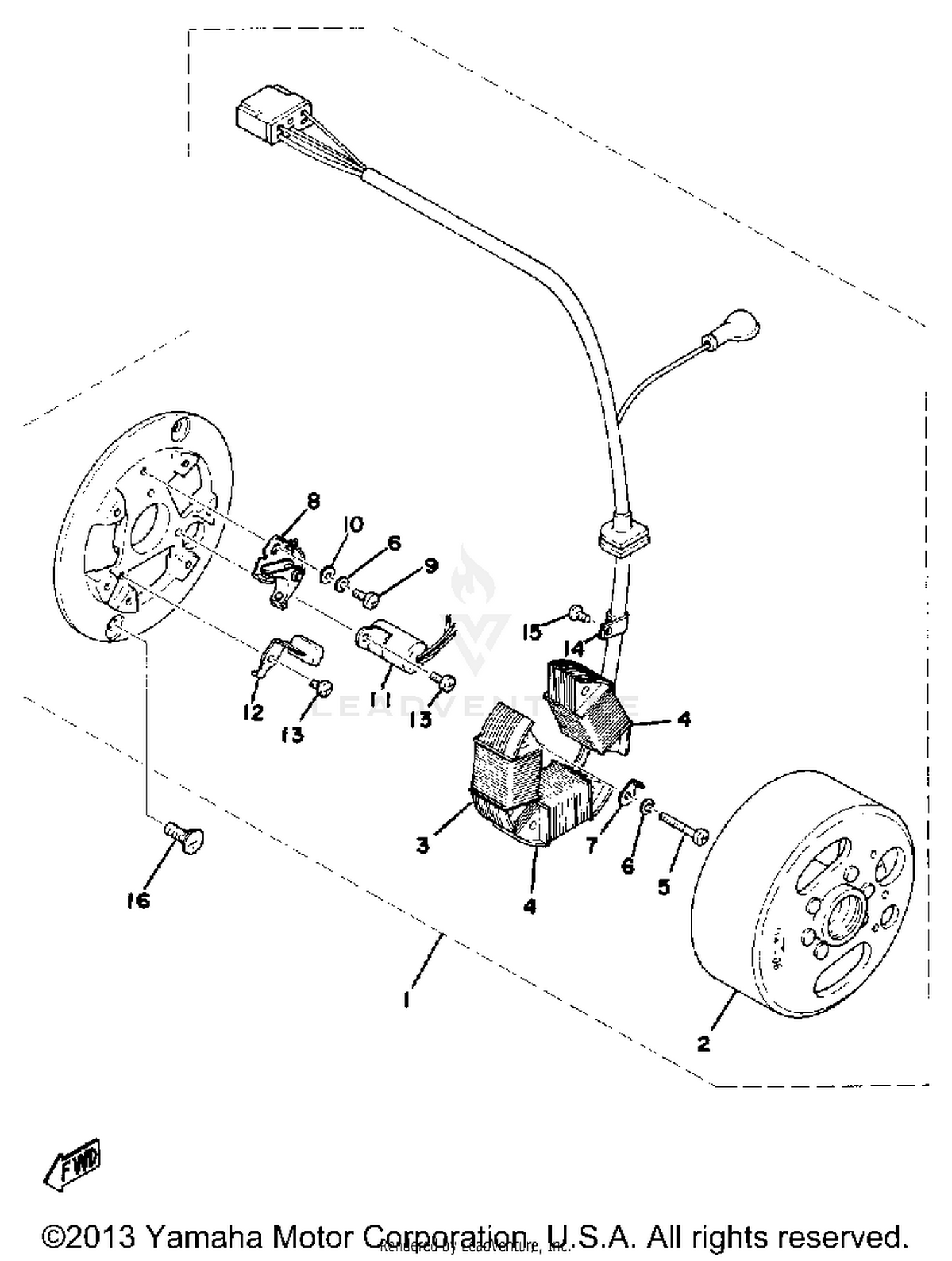

Flywheel Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHL MAGNETO ASSEMBLYASSY
443-81300-13-00
|
$362.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
576-81350-11-00
|
$384.99 | ||
|
Unavailable |
|||
|
#3
COIL, SOURCE
443-81312-10-00
|
$100.99 | ||
|
Unavailable |
|||
|
#4
COIL, LIGHTING 1
443-81313-12-00
|
$108.99 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98501-04028-00
|
$0.75 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, TIMING
443-81332-10-00
|
$3.36 | ||
|
Unavailable |
|||
|
#8
CONTACT BRKR ASSEMBLYASSY
443-81321-10-00
|
$59.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONDENSER 2
277-81326-90-00
|
$15.99 | ||
|
Unavailable |
|||
|
#12
LUBRICATOR
207-81331-10-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
109-81328-11-00
|
$9.49 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
