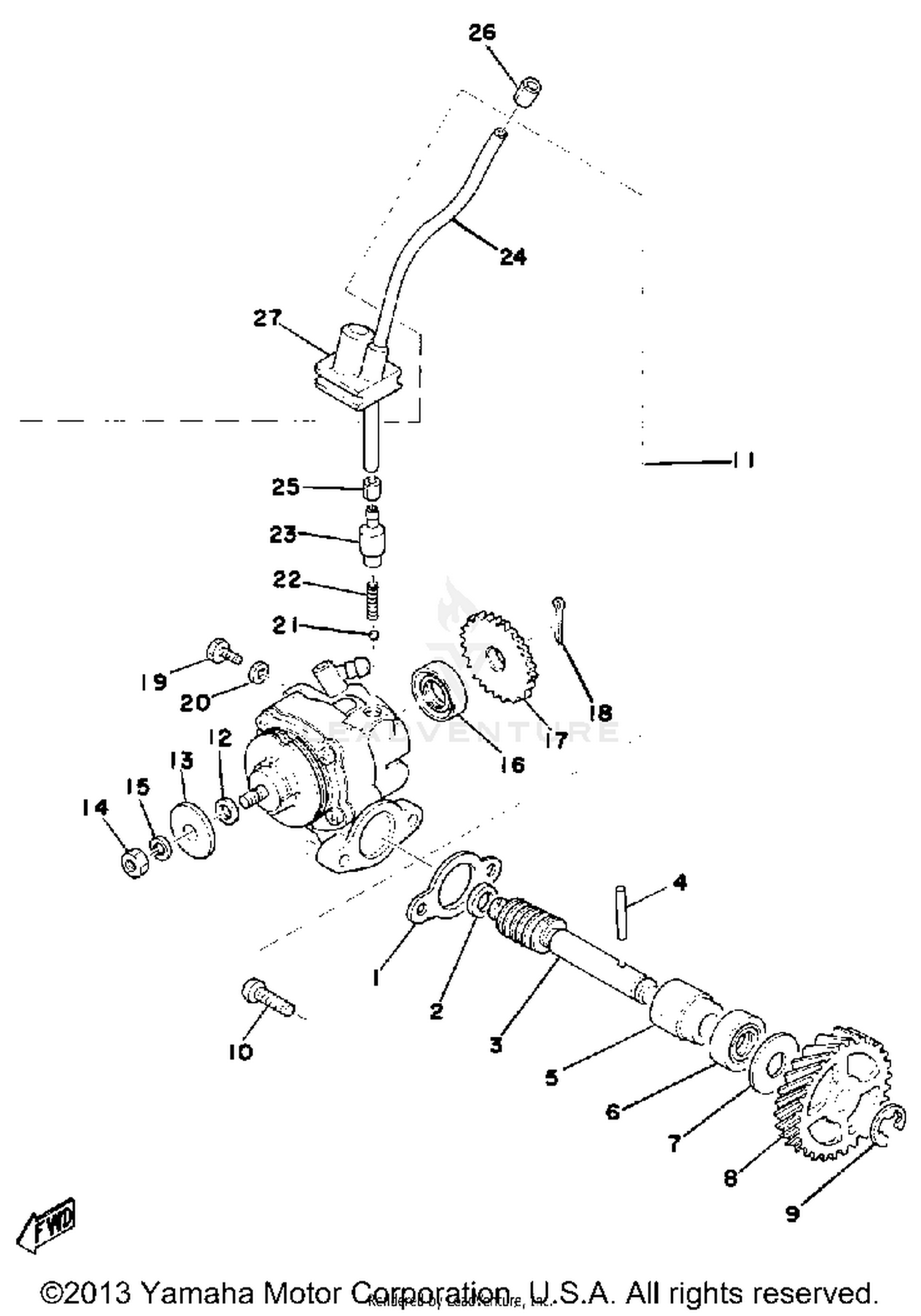

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, PUMP CASE
3MT-13116-00-00
Superseded by 126-13116-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-08624-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, WORM
559-13175-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#4
PIN, DOWEL
93603-22028-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, WORM SHAFT OUTER
1E7-13176-00-00
Superseded by 137-13176-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93101-10002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-106M5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE (28T)
248-13178-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL PUMP ASSEMBLY
525-13101-01-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM (T=1.0)
137-13137-00-10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM (T=0.5)
137-13137-00-05
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PLUNGER
137-13137-00-30
|
$1.40 | ||
|
Unavailable |
|||
|
#13
UNAVAILABLE IN PRICE BOOK
137-13128-01-00
|
|||
|
Unavailable |
|||
|
#14
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93101-10090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, STARTER
137-13128-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#18
PIN, COTTER
91401-12018-00
|
$2.55 | ||
|
Unavailable |
|||
|
#19
SCREW, BIND
98901-04008-00
Superseded by 98980-04008-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
90430-04004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
93505-32002-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, COMPRESSION
90501-02018-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NOZZLE
402-13552-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (L200)
90445-05278-00
Superseded by 90445-05N13-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90468-02033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90468-02033-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
HOLDER OIL PIPE
525-13174-00-00
Superseded by 525-13174-01-00
|
$6.49 | ||
|
Unavailable |
|||
