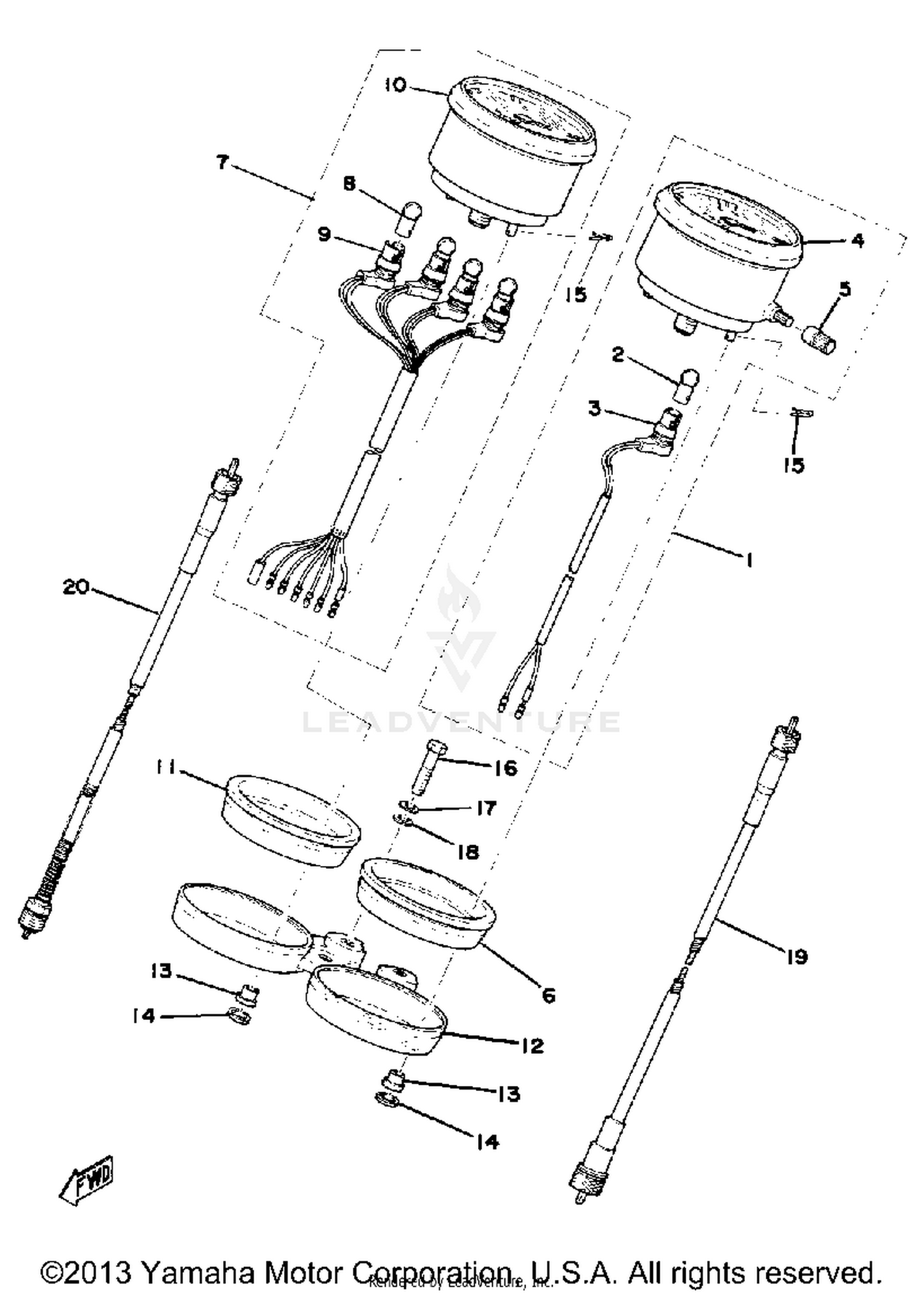

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
438-83570-31-00
|
$119.99 | ||
|
Unavailable |
|||
|
#2
BULB
122-83516-10-00
Superseded by 122-83516-10-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
SOCKET, METER
438-83536-30-00
|
$9.28 | ||
|
Unavailable |
|||
|
#4
DAMPER
437-83513-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#5
KNOB, TRIP METER
308-83578-30-00
|
$3.76 | ||
|
Unavailable |
|||
|
#6
DAMPER 2
438-83526-01-00
|
$6.04 | ||
|
Unavailable |
|||
|
#7
TACHOMETER ASSEMBLY
443-83540-02-00
|
$91.99 | ||
|
Unavailable |
|||
|
#8
BULB
122-83516-10-00
Superseded by 122-83516-10-XX
|
$2.40 | ||
|
Unavailable |
|||
|
#9
SOCKET CORD ASSEMBLY
443-83520-00-00
|
$19.50 | ||
|
Unavailable |
|||
|
#10
DAMPER
437-83513-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#11
DAMPER 2
438-83526-01-00
|
$6.04 | ||
|
Unavailable |
|||
|
#12
BRACKET, METER
438-83519-02-98
|
$71.99 | ||
|
Unavailable |
|||
|
#13
DAMPER
437-83523-00-00
|
$6.24 | ||
|
Unavailable |
|||
|
#14
WASHER, SPECIAL
437-83524-00-00
|
$4.75 | ||
|
Unavailable |
|||
|
#15
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPEEDOMETER CABLE AS
3J0-83550-00-00
Superseded by 1JN-83550-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TACHOMETER CABLEASSEMBLY
443-83560-01-00
|
$31.99 | ||
|
Unavailable |
|||
