1976 Yamaha DT175 Fender OEM Parts

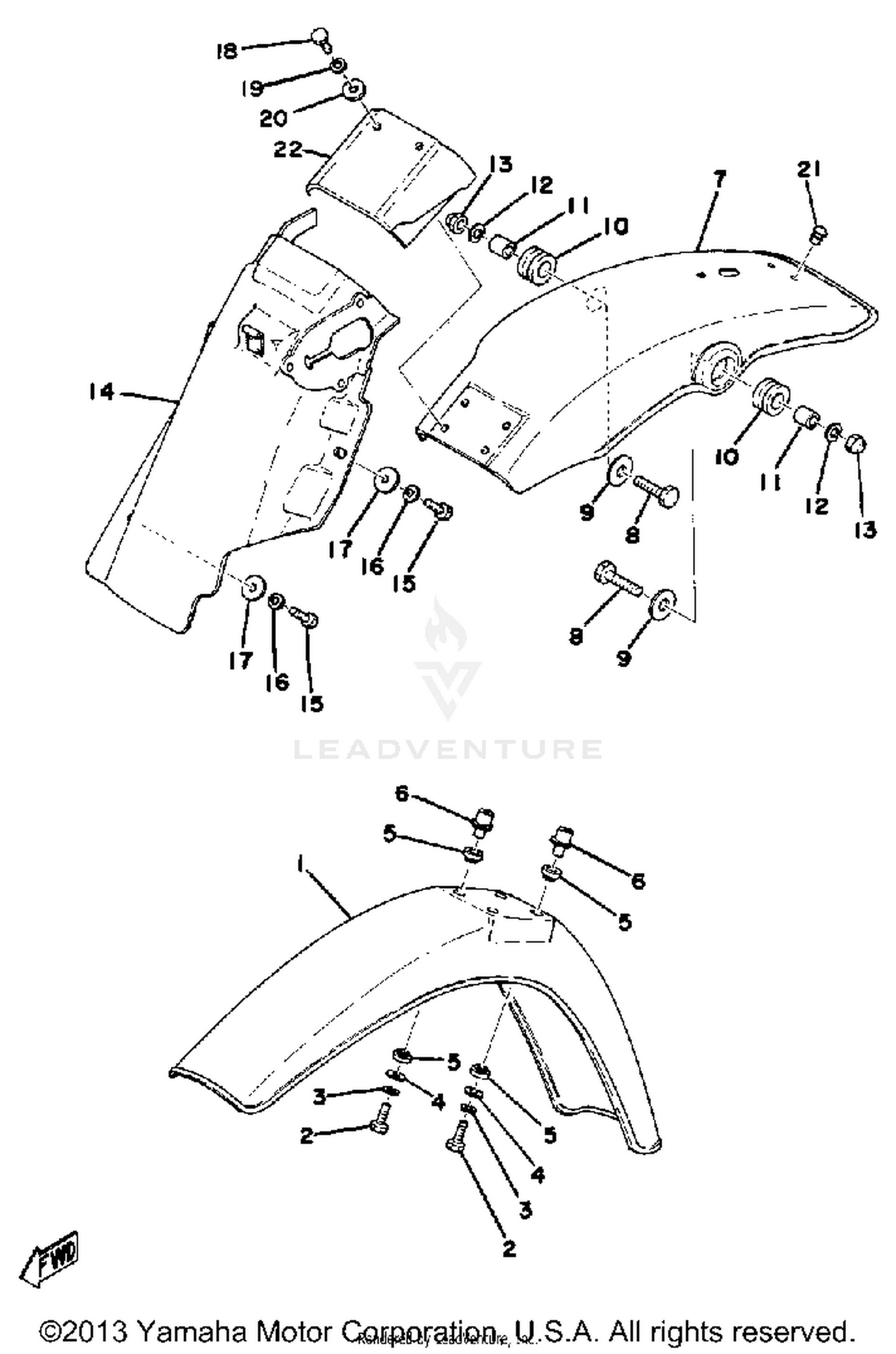

Fender Diagram

Item	MSRP	Qty
#1 FENDER, FRONT 401-21511-01-20	$65.99
Unavailable
#2 BOLT, HEXAGON 97013-06035-00 Superseded by 97014-06035-00	$2.60
Available to order. Add to View Price
#3 WASHER, SPRING 92995-06100-00	$3.20
Available to order. Add to View Price
#4 WASHER PLAIN 90201-06067-00 Superseded by 90201-06380-00	$0.55
Available to order. Add to View Price
#5 DAMPER 1 322-21541-00-00	$7.49
Available to order. Add to View Price
#6 COLLAR 1 558-21544-00-00	$2.97
Unavailable
#7 FENDER, REAR 437-21610-00-20	$58.07
Unavailable
#8 BOLT 97313-08035-00 Superseded by 97013-08035-00	$4.95
Available to order. Add to View Price
#9 WASHER, PLATE 90201-08753-00 Superseded by 90201-081R9-00	$8.49
Available to order. Add to View Price
#10 DAMPER 2 168-21639-00-00	$10.49
Available to order. Add to View Price
#11 COLLAR 90387-08258-00	$9.49
Available to order. Add to View Price
#12 WASHER, SPRING 92990-08100-00	$5.49
Available to order. Add to View Price
#13 NUT (CROWN) (93501-08800-00) 95303-08800-00	$8.49
Available to order. Add to View Price
#14 GUARD, MUD 558-21620-01-00	$22.08
Unavailable
#15 BOLT, HEXAGON DEEP R 97313-06016-00 Superseded by 97D95-06016-00	$2.60
Available to order. Add to View Price
#16 WASHER, SPRING 92995-06100-00	$3.20
Unavailable
#17 WASHER PLAIN 90201-06067-00 Superseded by 90201-06380-00	$0.55
Unavailable
#18 BOLT, HEXAGON DEEP R 97313-06016-00 Superseded by 97D95-06016-00	$2.60
Unavailable
#19 WASHER, SPRING 92995-06100-00	$3.20
Unavailable
#20 WASHER, PLATE 90201-061A5-00	$6.49
Available to order. Add to View Price
#21 PLUG, BLIND 378-21279-00-00	$0.39
Unavailable
#22 BRACKET, RR FENDER 559-21612-00-00	$2.77
Unavailable
