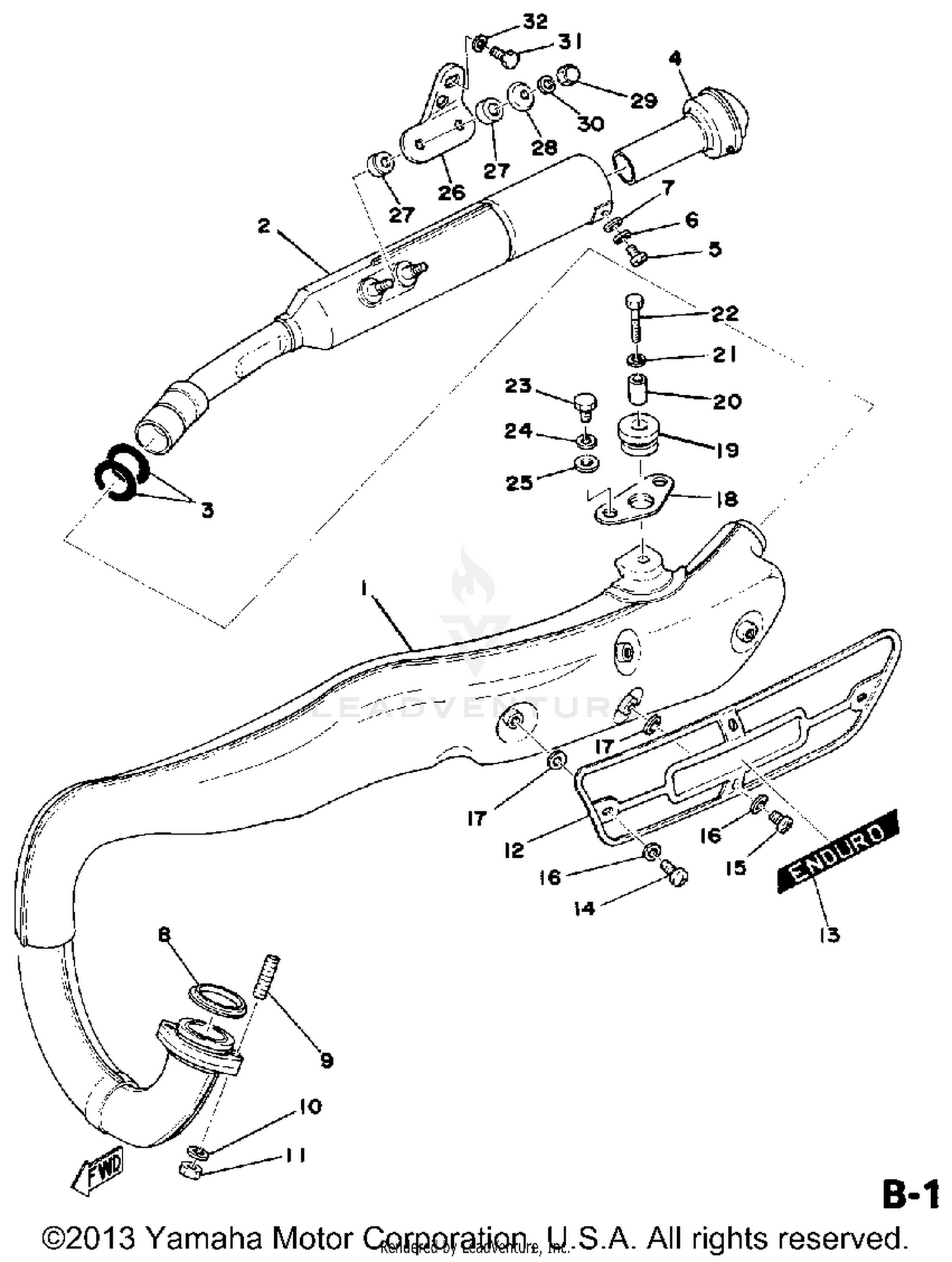

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
576-14610-01-00
|
$152.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SILENCER, EXHAUST
558-14753-01-00
|
$58.95 | ||
|
Unavailable |
|||
|
#
SILENCER SET (558)
99999-01080-00
|
$61.99 | ||
|
Unavailable |
|||
|
#3
O-RING
93210-24235-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, OUTLET
438-14752-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, EXHAUST PIPE
152-14613-00-00
Superseded by 3PA-14613-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
90116-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#11
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR, MUFF 1
558-14718-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#13
EMBLEM, PROTECTOR
558-14729-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#14
SCREW, BIND
98980-06030-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90202-05005-00
Superseded by 90202-05188-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, MUFFLER 1
437-14771-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#19
GROMMET
90480-20132-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-08242-00
|
$5.99 | ||
|
Unavailable |
|||
|
#21
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
97001-06018-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#25
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY, MUFFLER 2
558-14781-01-00
|
$6.66 | ||
|
Unavailable |
|||
|
#27
DAMPER, MUFFLER 2
438-14757-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#28
WASHER, SPEC''L SHAP
90209-06061-00
|
$4.40 | ||
|
Unavailable |
|||
|
#29
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#31
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
