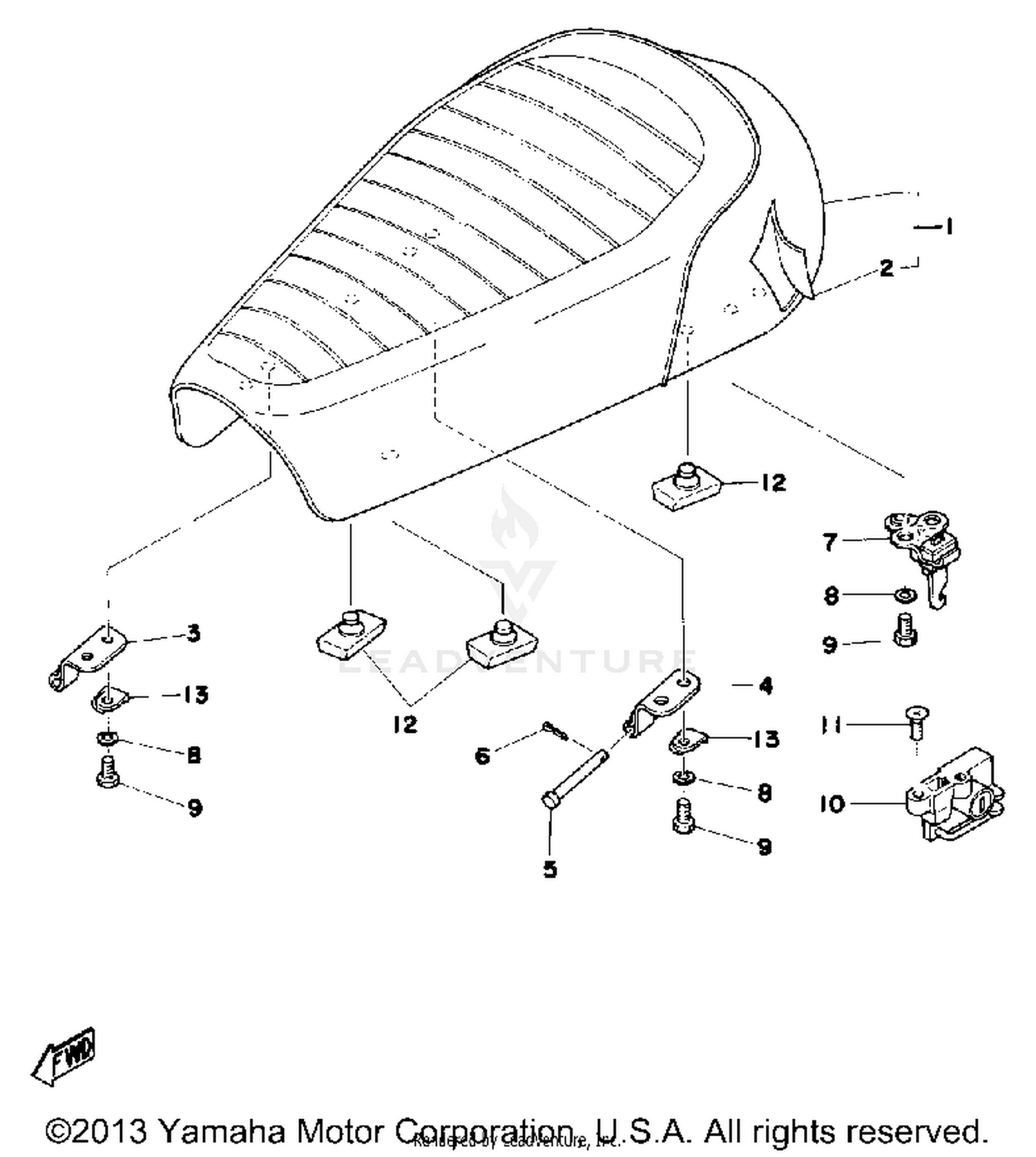

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
558-24710-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#2
COVER, SINGLE SEAT
558-24711-00-00
|
$40.56 | ||
|
Unavailable |
|||
|
#3
HINGE, SEAT
248-24726-00-33
|
$14.49 | ||
|
Unavailable |
|||
|
#4
HINGE, SEAT
437-24726-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#5
PIN, CLEVIS
91701-05055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT
371-24728-02-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT LOCK ASSEMBLY
558-24705-00-00
|
$36.74 | ||
|
Unavailable |
|||
|
#11
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#12
DAMPER, SEAT
214-24724-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOPPER
437-24768-00-00
|
$1.98 | ||
|
Unavailable |
|||
