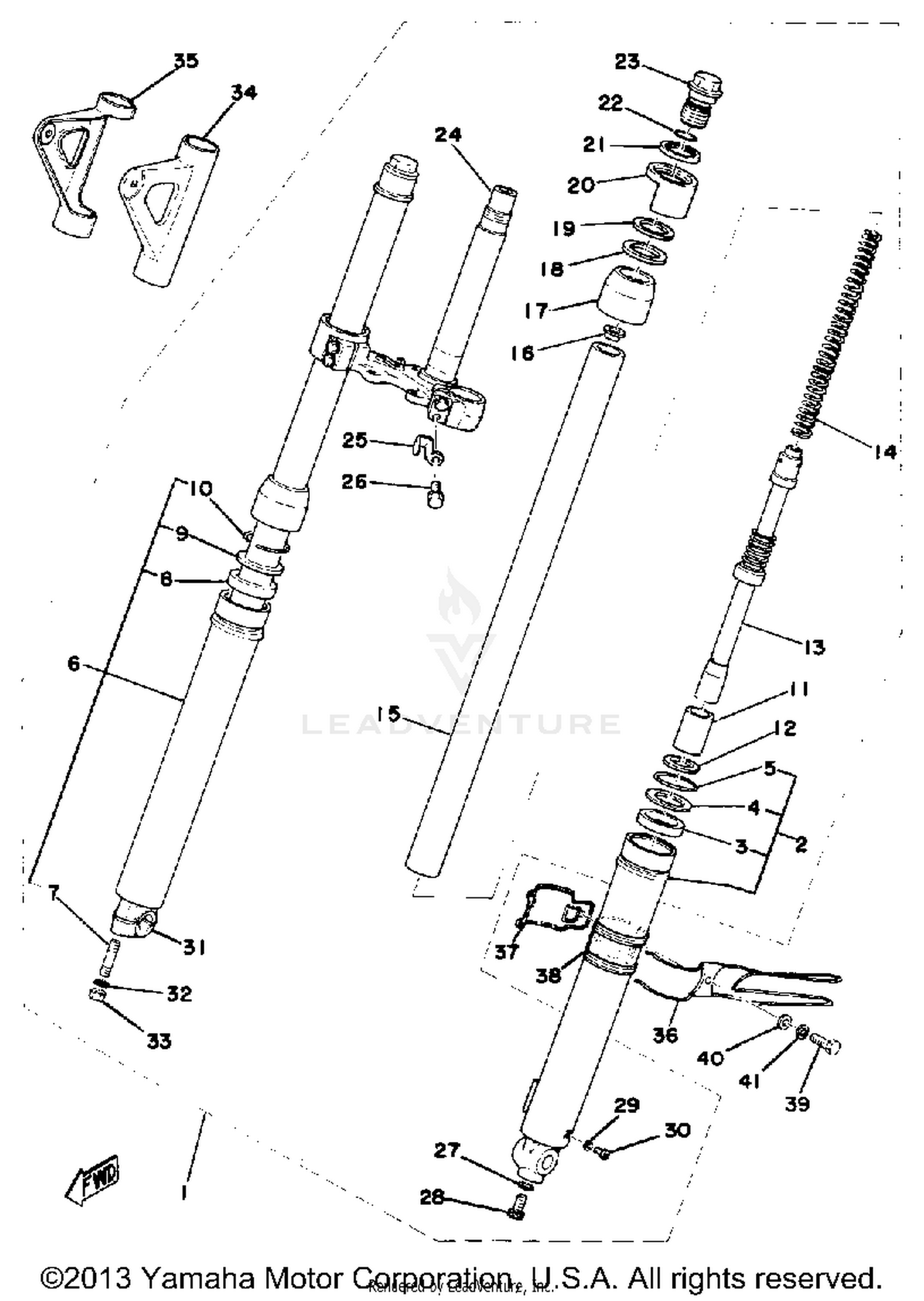

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
559-23101-00-00
|
$313.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
559-23126-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
137-23145-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
315-23146-50-00
|
$2.97 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
315-23156-50-00
|
$3.16 | ||
|
Unavailable |
|||
|
#6
TUBE, OUTER 2
559-23136-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#7
BOLT, STUD
90116-08261-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
137-23145-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#9
WASHER, OIL SEAL
315-23146-50-00
|
$2.97 | ||
|
Unavailable |
|||
|
#10
CLIP, OIL SEAL
315-23156-50-00
|
$3.16 | ||
|
Unavailable |
|||
|
#11
PISTON, FRONT FORK
535-23171-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
535-23183-01-00
|
$4.10 | ||
|
Unavailable |
|||
|
#13
CYLINDER, FRTFRK
525-23170-00-00
|
$56.74 | ||
|
Unavailable |
|||
|
#14
SPRING, FRONT FORK
559-23141-00-00
|
$17.60 | ||
|
Unavailable |
|||
|
#15
TUBE, INNER 1
525-23124-00-00
|
$74.77 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
304-23142-50-00
|
$4.60 | ||
|
Unavailable |
|||
|
#17
SEAL, DUST
535-23144-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
UNAVAILABLE IN PRICE BOOK
437-23165-00-00
|
|||
|
Unavailable |
|||
|
#19
WASHER, LIGHT STAY
437-23161-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#20
COVER, OUTER 1
304-23122-50-00
|
$8.88 | ||
|
Unavailable |
|||
|
#21
GUIDE, COVER UPPER
248-23115-01-00
|
$4.80 | ||
|
Unavailable |
|||
|
#22
O-RING
146-23114-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, CAP
2K5-23111-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#24
UNDER BRACKET
559-23340-00-33
|
$112.99 | ||
|
Unavailable |
|||
|
#25
HOLDER, CABLE 1
256-23318-60-00
|
$3.30 | ||
|
Unavailable |
|||
|
#26
BOLT, W/WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
214-23158-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
91311-08020-00
Superseded by 91314-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOLDER, AXLE
315-23167-51-00
|
$101.99 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, HEXAGON
90170-08176-00
|
$1.74 | ||
|
Unavailable |
|||
|
#34
COVER, UPPER 1
438-23121-00-20
|
$41.99 | ||
|
Unavailable |
|||
|
#35
COVER, UPPER 2
438-23131-00-20
|
$41.99 | ||
|
Unavailable |
|||
|
#36
HOLDER, CABLE 1
559-23318-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#37
HOLDER, CABLE 2
559-23319-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#38
DAMPER 1
559-21541-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
