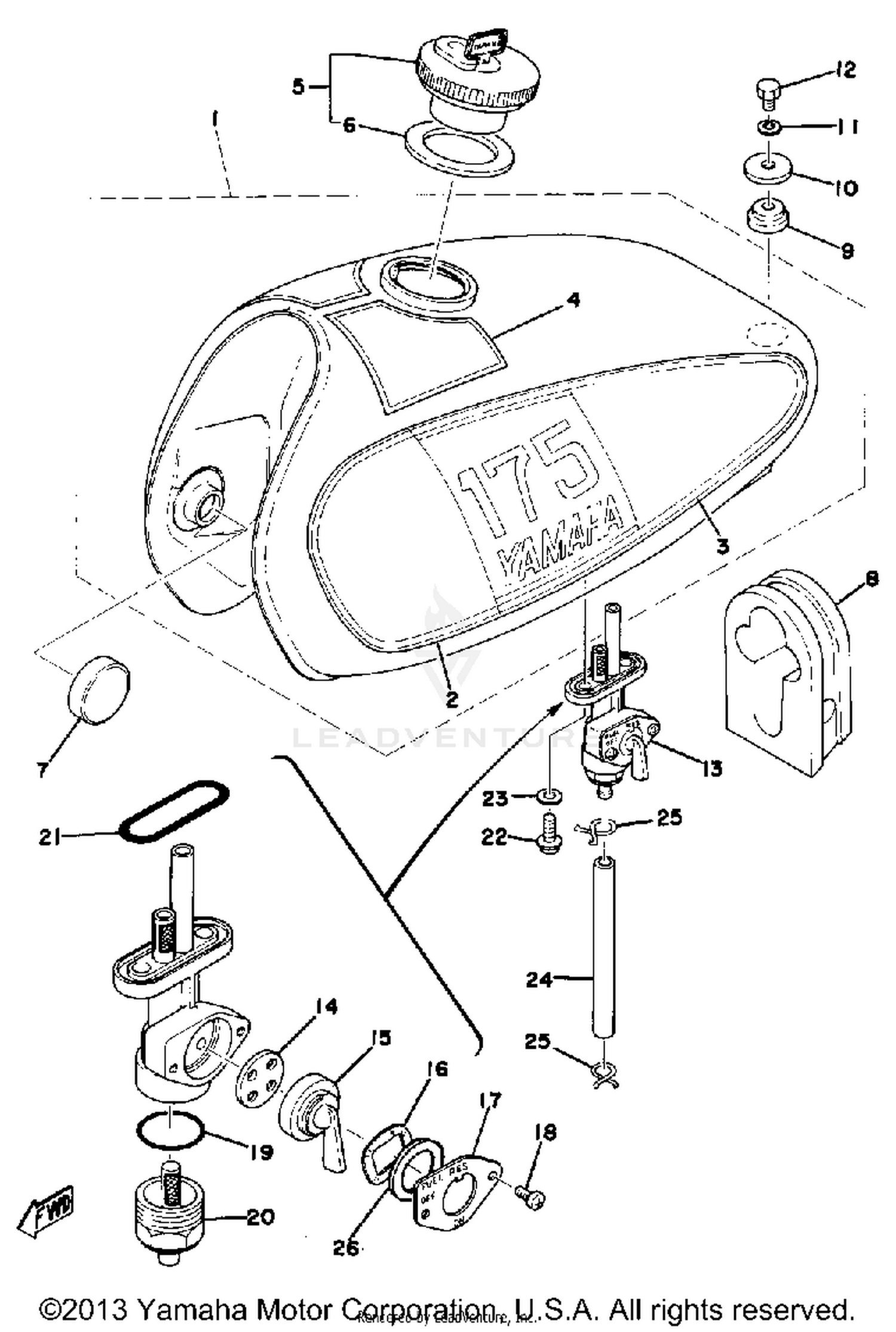

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
558-24110-00-02
|
$212.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
558-24244-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 2
558-24245-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 3
559-24246-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 4
559-24247-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 7
558-24254-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 8
558-24255-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#5
CAP ASY.
3FR-24602-00-00
Superseded by 3FU-24650-12-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CAP
498-24612-00-00
|
$10.32 | ||
|
Unavailable |
|||
|
#7
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, LOCATING 3
401-24183-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-25189-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUEL COCK ASSEMBLY 1
558-24500-01-00
|
$164.99 | ||
|
Unavailable |
|||
|
#14
VALVE
498-24523-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, COCK
498-24524-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#16
WASHER, WAVE
90206-18025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, LVR FITTING
498-24525-00-00
|
$12.16 | ||
|
Unavailable |
|||
|
#18
SCREW, LEVER FITTING
214-24535-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
498-24522-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUP, FILTER
498-24521-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#21
GASKET
214-24512-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (L100)
90445-11295-00
Superseded by 90445-11293-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
498-24528-00-00
|
$2.97 | ||
|
Unavailable |
|||
