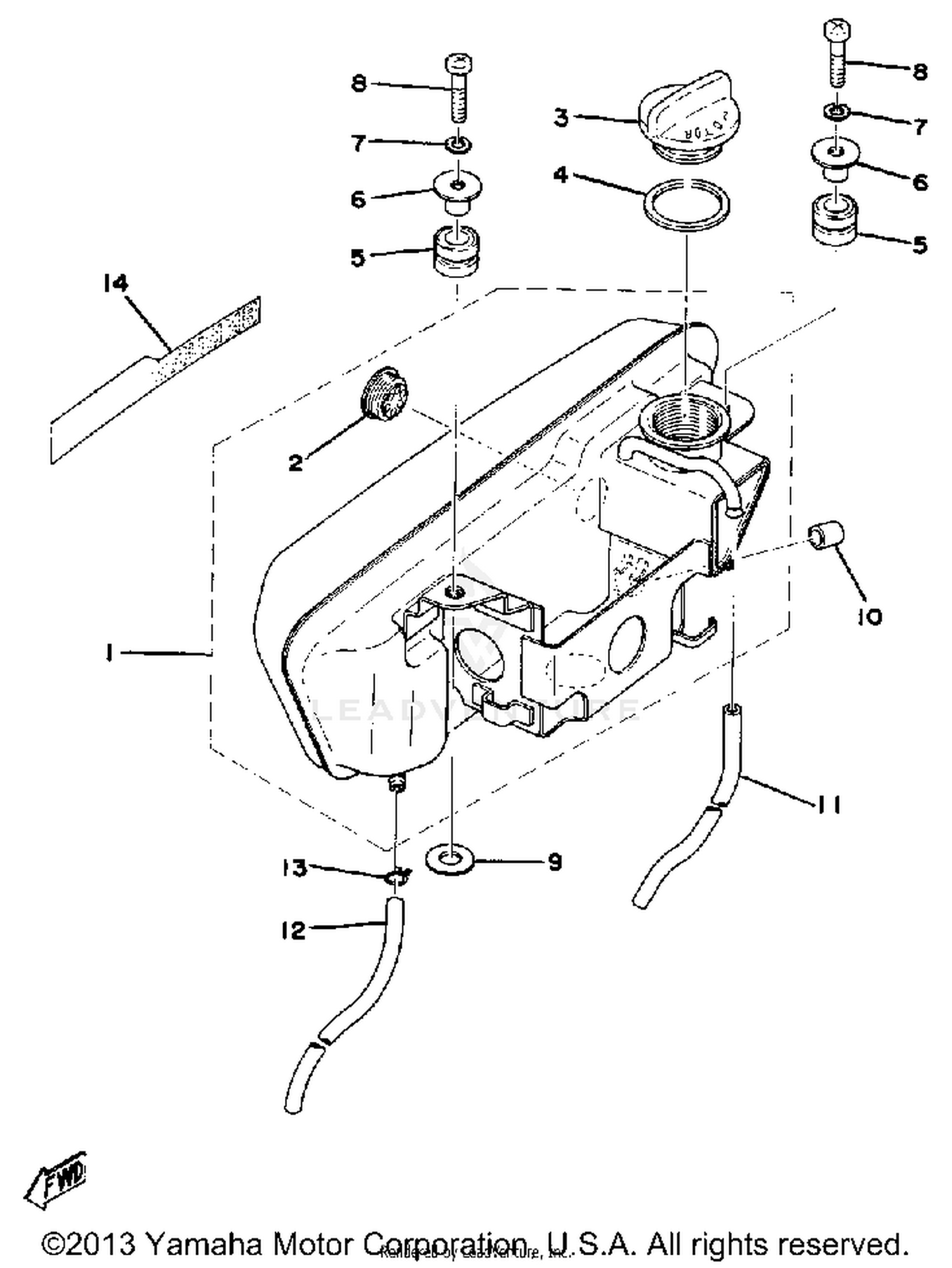

Oil Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL TANK ASSEMBLY
558-21705-01-G3
|
$75.99 | ||
|
Unavailable |
|||
|
#2
GAUGE, LEVEL
360-21761-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#3
BODY, CAP
214-21771-00-00
Superseded by 1A0-21771-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-29114-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 2
437-21779-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, FLEXIBLE VINYL
90446-09232-00
Superseded by 91A30-05080-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE 5
90445-09107-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
EMBLEM 7
498-21787-01-00
|
$3.36 | ||
|
Unavailable |
|||
