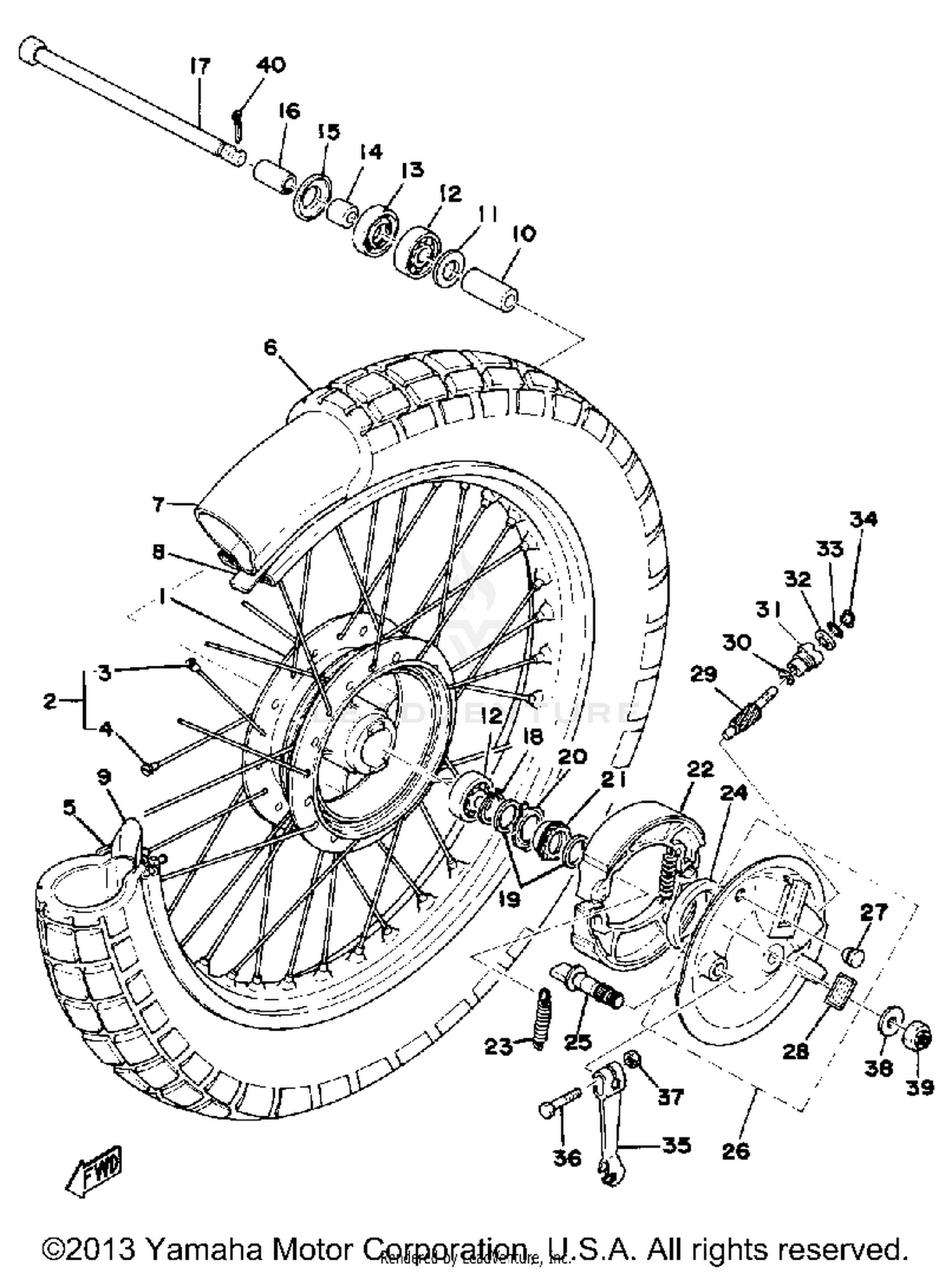

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
443-25111-00-00
|
$53.10 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
458-25104-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#3
SPOKE SET, INNER 1
458-25196-90-00
|
$8.06 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 1
458-25197-90-00
|
$7.26 | ||
|
Unavailable |
|||
|
#5
RIM 1.60X21
94416-21223-00
|
$107.99 | ||
|
Unavailable |
|||
|
#6
275X21 DUN TRIUNI
94127-21332-00
|
$53.99 | ||
|
Unavailable |
|||
|
#7
UNAVAILABLE IN PRICE BOOK
94227-21186-00
|
|||
|
Unavailable |
|||
|
#8
BAND, RIM
94327-21024-00
|
$4.60 | ||
|
Unavailable |
|||
|
#9
SPACER, BEAD
1T1-25194-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-12095-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, HUB DUST
2K5-25118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-12100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
AXLE, WHEEL
401-25181-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-20269-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLUTCH, METER
183-25149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, DRIVE
37A-25135-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#22
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#23
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRAKE SHOE PLT ASSEMBLY
559-25120-00-00
|
$45.91 | ||
|
Unavailable |
|||
|
#27
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
LABEL, INDICATOR
437-25134-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#29
GEAR, METER
37A-25138-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
RING, STOP
102-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
UNAVAILABLE IN PRICE BOOK
2NG-25155-00-00
|
|||
|
Unavailable |
|||
|
#36
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLAIN
92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, CASTLE
90171-12005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
