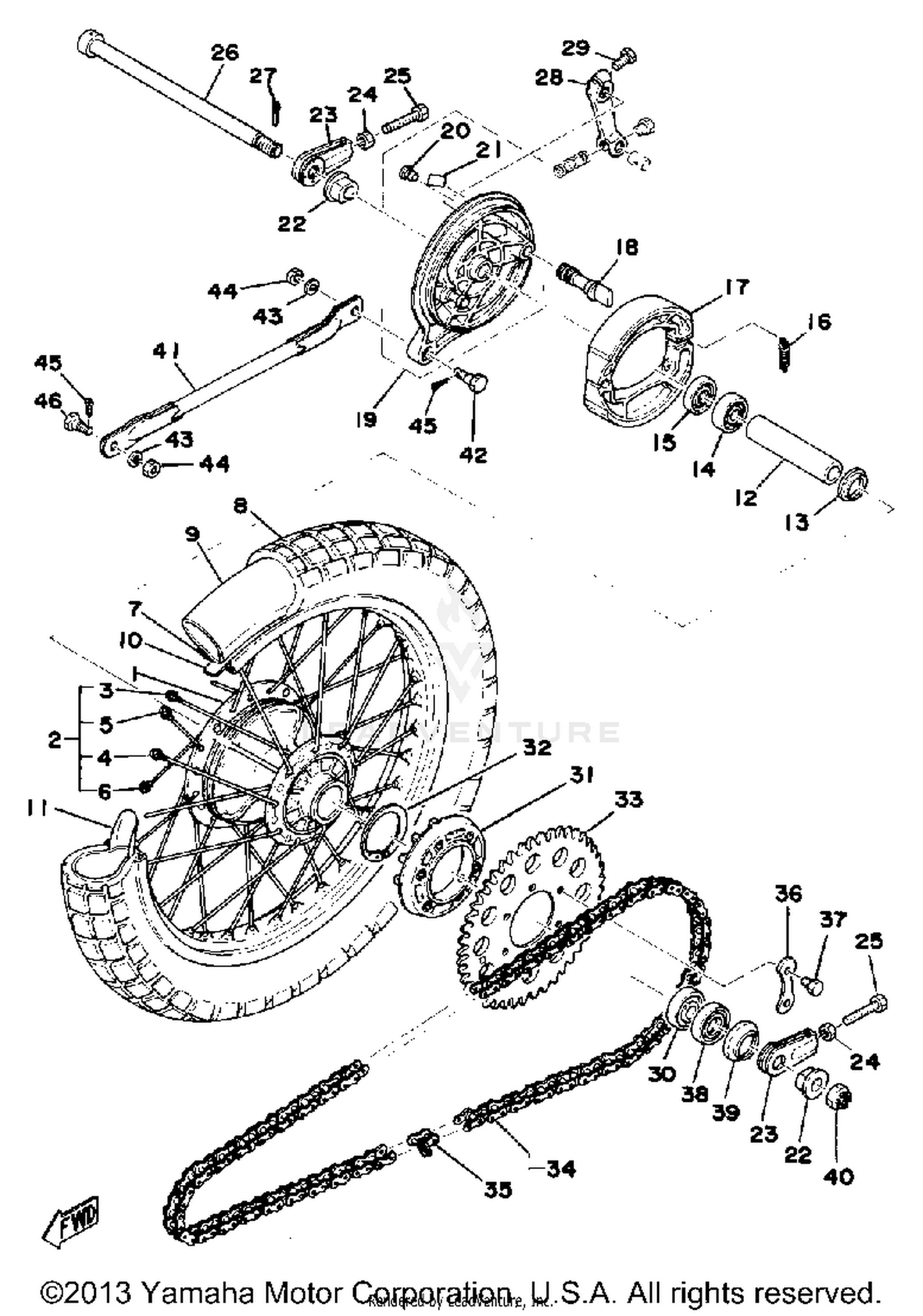

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
443-25311-00-00
|
$140.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
443-25304-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPOKE SET, INNER 2
443-25396-90-00
|
$2.95 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 2
443-25397-90-00
|
$2.95 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, INNER 1
443-25391-90-00
|
$2.95 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, OUTER 1
443-25392-90-00
|
$3.38 | ||
|
Unavailable |
|||
|
#7
RIM (1.85-18)
94418-18171-00
Superseded by 94418-18007-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
350X18 YOKO Y620
94135-18319-00
|
$34.99 | ||
|
Unavailable |
|||
|
#9
TUBE (2.75-18)
94235-18085-00
Superseded by 94232-18113-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, BEAD
1T2-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
90560-15313-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20204-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#18
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRAKE SHOE PLATE ASSEMBLYASSY (
437-25026-10-35
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL, INDICATOR
437-25134-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#22
COLLAR
90387-15115-00
|
$13.99 | ||
|
Unavailable |
|||
|
#23
PULLER, CHAIN 1
248-25388-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
AXLE, WHEEL (2R7-25381-00)
401-25381-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#27
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
LEVER, CAMSHAFT
214-25355-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
UNAVAILABLE IN PRICE BOOK
248-26364-00-00
|
|||
|
Unavailable |
|||
|
#32
CIRCLIP
93410-52034-00
Superseded by 93410-52061-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, DRVN 44T (44T)
4V1-25444-10-00
|
$37.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRVN45T
248-25445-11-00
|
$38.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRVN 48T
248-25448-11-00
|
$42.99 | ||
|
Unavailable |
|||
|
#34
SET, CHAIN
94580-30114-00
Superseded by 94A40-07114-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CHAIN JOINT
94680-24001-00
Superseded by 94681-64001-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
22W-25412-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
90101-08282-00
|
$2.60 | ||
|
Unavailable |
|||
|
#38
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, HUB DUST
401-25367-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BAR, TENSION
401-25371-01-00
|
$4.20 | ||
|
Unavailable |
|||
|
#42
BOLT
90109-08063-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#45
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
