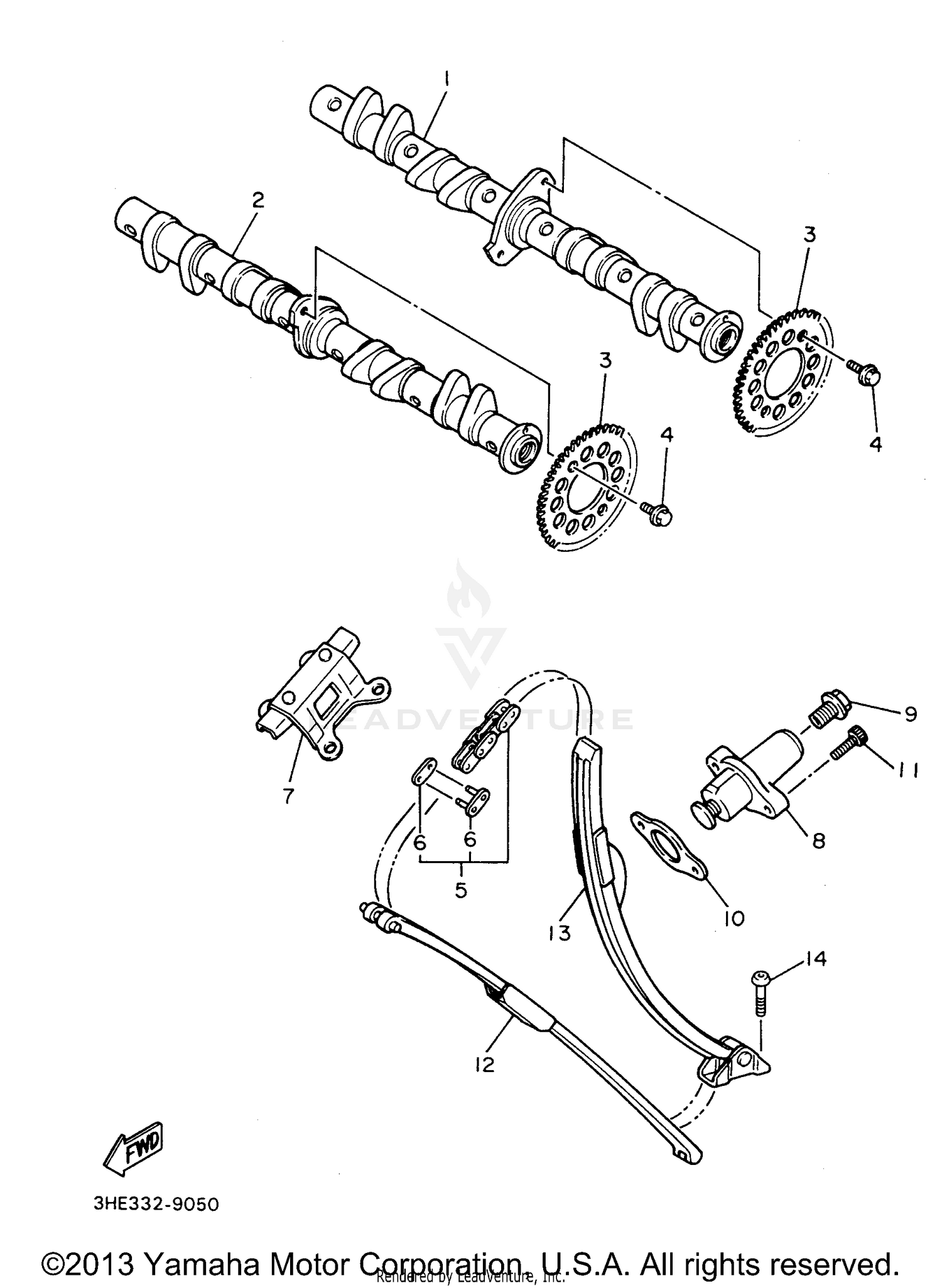

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
3HE-12171-00-00
|
$339.65 | ||
|
Unavailable |
|||
|
#
CAMSHAFT 1
3UU-12171-00-00
|
$372.99 | ||
|
Unavailable |
|||
|
#2
CAMSHAFT 2
3HE-12181-00-00
|
$755.99 | ||
|
Unavailable |
|||
|
#
CAMSHAFT 2
3UU-12181-00-00
|
$713.41 | ||
|
Unavailable |
|||
|
#3
SPROCKET, CAM CHAIN
1WG-12176-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-07385-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN (D.I.D. 215F DHA 118L)
94581-32118-00
Superseded by 9Y581-32117-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, JOINT
94681-32021-00
Superseded by 4TV-11498-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, STOPPER 2
1WG-12241-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#8
TENSIONER ASSY, CAM CHAIN
3GM-12210-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90109-112F1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, TENSIONER CASE
4BE-12213-00-00
Superseded by 4FM-12213-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, CHAIN 1
3HE-12251-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, CHAIN 2
3HE-12252-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90109-065A8-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
