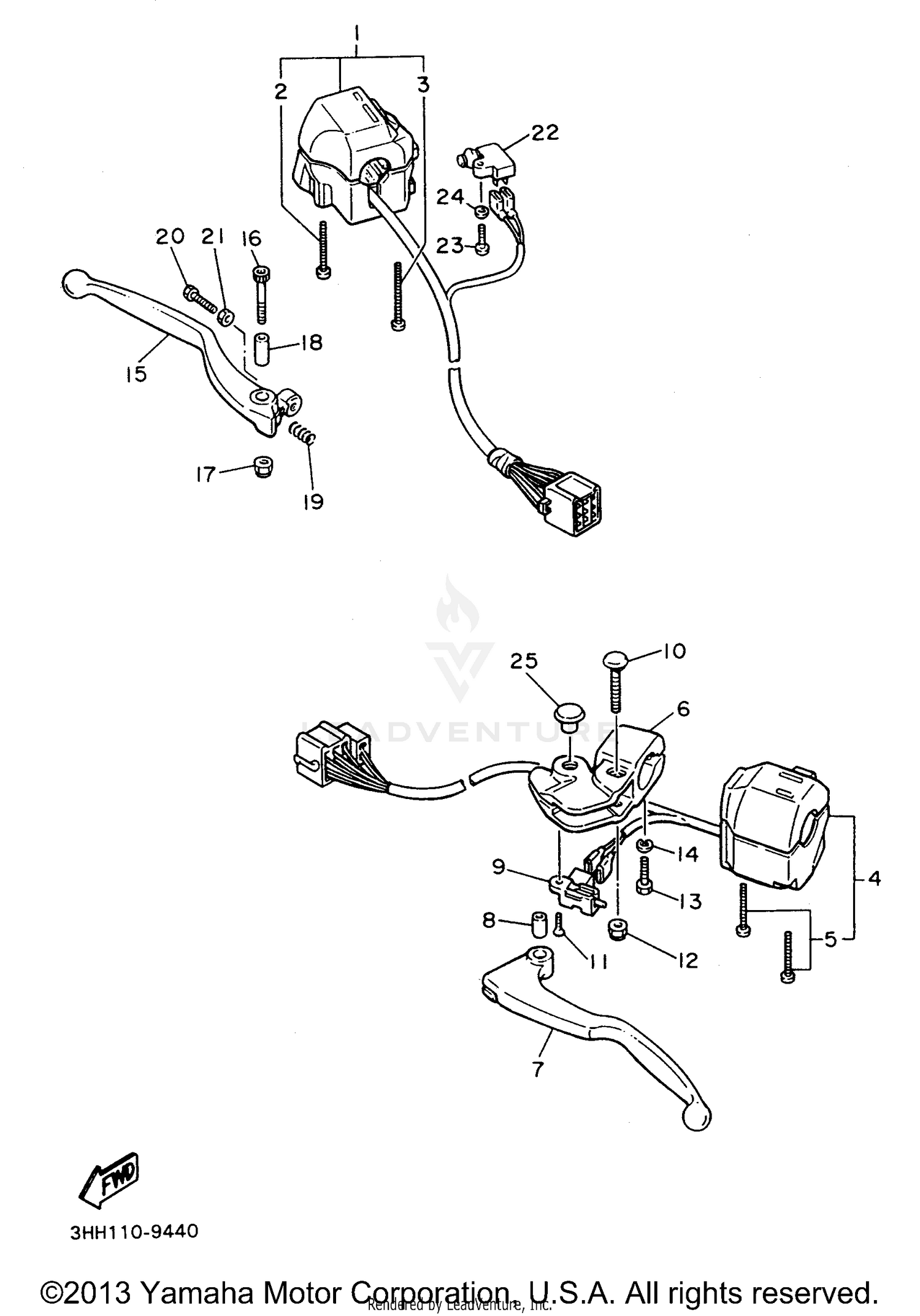

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH, HANDLE 2
3HH-83975-00-00
Superseded by 2LJ-83975-00-00
|
$222.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98507-05045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH, HANDLE 3
3HH-83973-00-00
|
$221.35 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, LEVER 1
29L-82911-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER 1
3HE-83912-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, LEVER 1
31A-83913-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH
31A-82917-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, LEVER
31A-83945-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, FLAT HEAD
98707-03008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U
95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER 2
1FK-83922-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-06074-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
COLLAR, LEVER 1
36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, COMPRESSION
90501-10312-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
90149-06131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FRONT STOP SWITCH ASSY
J45-82503-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98507-04016-00
Superseded by 98517-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
