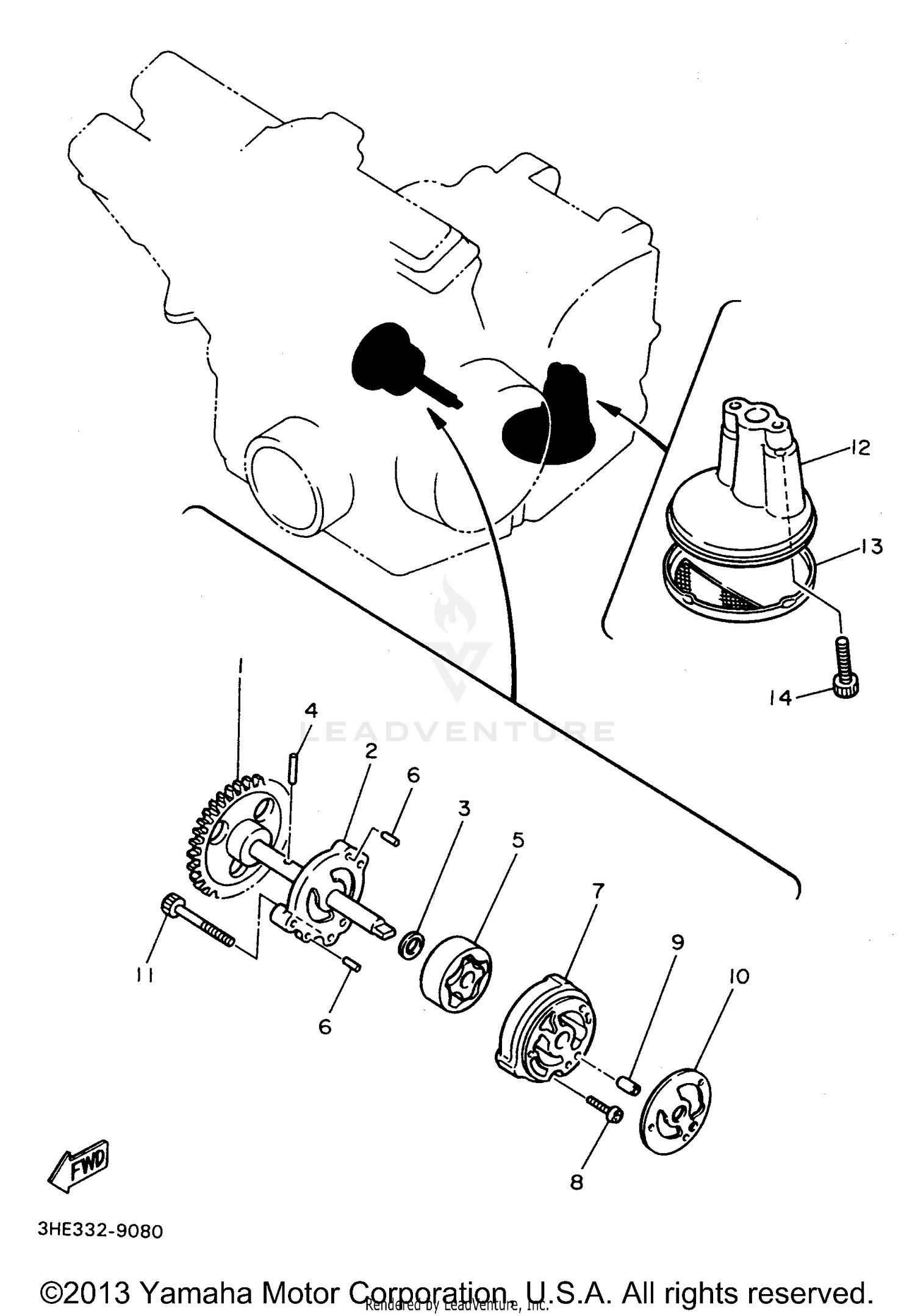

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP SHAFT ASSEMBLY
1WG-13330-01-00
|
$246.99 | ||
|
Unavailable |
|||
|
#2
COVER, PUMP
1WG-13316-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-113K2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93603-17070-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR ASSY 1
1WG-13310-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93603-09106-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOUSING, ROTOR
1WG-13336-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW,PAN HEAD
98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99510-08012-00
Superseded by 91808-12024-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, PUMP COVER
1WG-13329-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90110-06130-00
Superseded by 91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOUSING, STRAINER
1WG-13412-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#13
STRAINER, OIL
4H7-13411-02-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90110-06225-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
