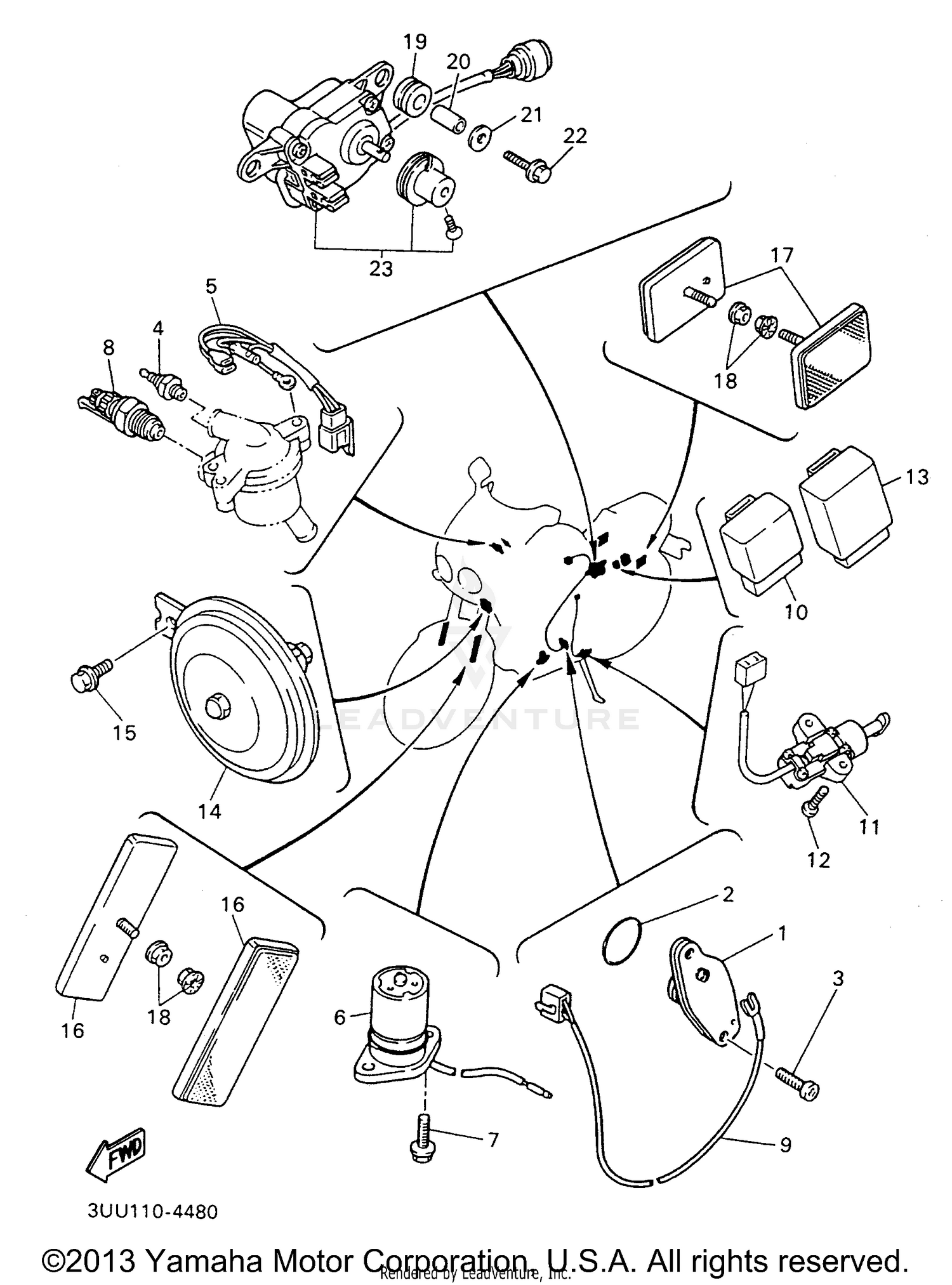

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NEUTRAL SWITCH ASSY
1AE-82540-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-29196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
THERMO UNIT
11H-83591-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE, SUB LEAD
2GH-82509-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#6
OIL LEVEL GAUGE ASSEMBLY
1WG-85720-00-00
|
$280.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
THERMO SWITCH ASSY
3LN-82560-01-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WIRE, LEAD
1WG-82541-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#10
RELAY ASSY
3EN-81950-00-00
Superseded by 3EN-81950-02-00
|
$66.99 | ||
|
Unavailable |
|||
|
#11
SWITCH, SIDE STAND
3LD-82566-50-00
Superseded by 3LD-82566-51-00
|
$47.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLASHER RELAY ASY
2UJ-83350-00-00
Superseded by 2UJ-83350-01-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HORN
4FM-83371-00-00
Superseded by 2KG-83371-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
REAR REFLECTOR ASSY
3G1-85130-01-00
Superseded by 4KM-85130-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-074W0-00
Superseded by 90387-061V1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95807-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SERVO MOTOR ASSY
3LN-85820-00-00
Superseded by 3LN-85820-01-00
|
$377.99 | ||
|
Unavailable |
|||
