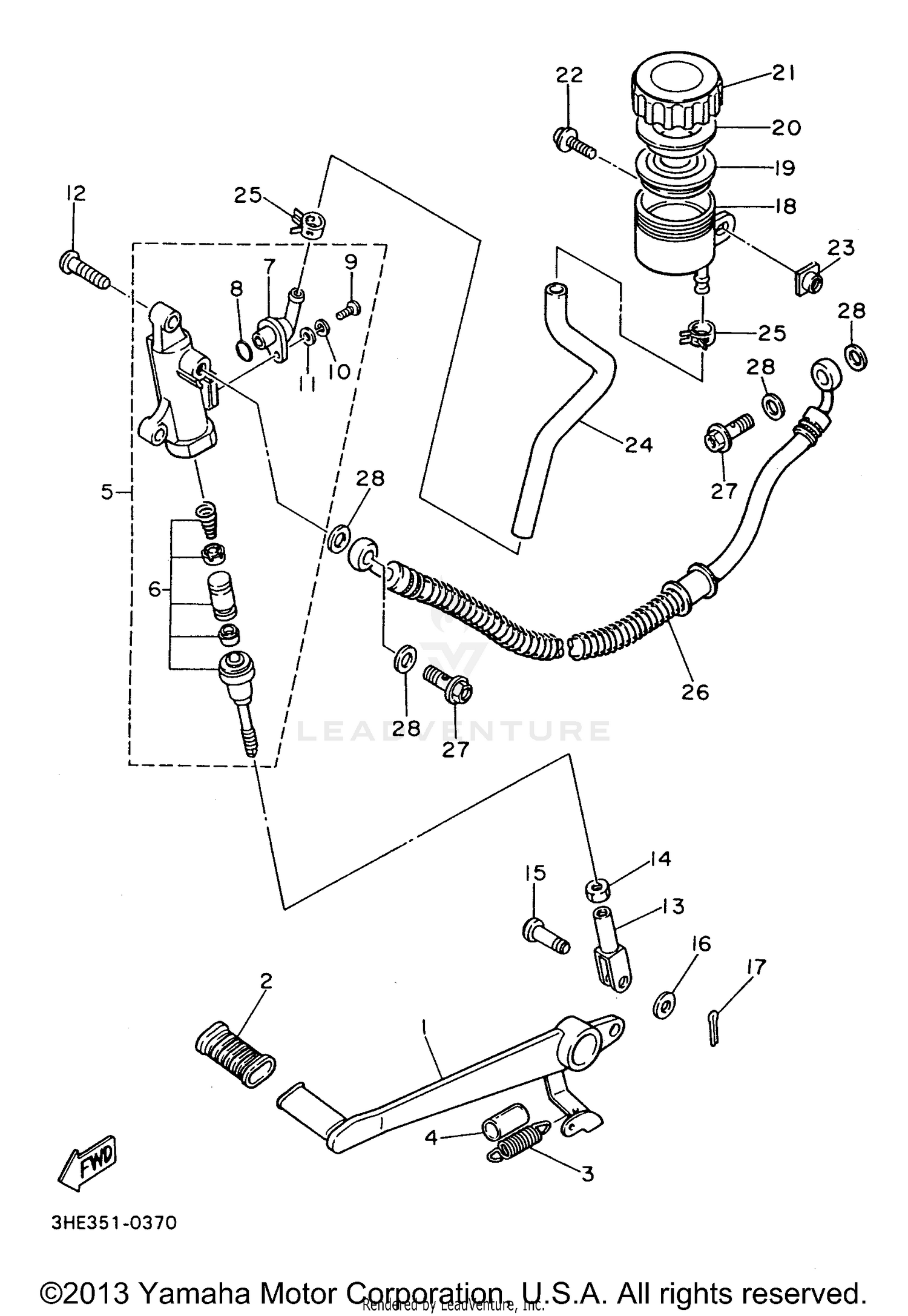

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
3HE-27211-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#2
COVER, SHIFT PEDAL
22N-18113-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TENSION
90506-20377-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE
90446-17267-00
Superseded by 90446-17346-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER CYLINDER ASSEMBLY
1WG-25850-50-00
|
$282.99 | ||
|
Unavailable |
|||
|
#6
CYLINDER KIT, MASTER
1WG-W0042-50-00
|
$88.99 | ||
|
Unavailable |
|||
|
#7
JOINT
29L-2582A-50-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,PANHEAD
98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92017-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT
31A-27222-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TANK, RESERVOIR
31A-25894-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE
31A-14477-00-00
Superseded by 31A-14477-10-00
|
$1.55 | ||
|
Unavailable |
|||
|
#24
HOSE, RESERVOIR
1WG-25895-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#25
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, BRAKE 1
3HE-25872-61-00
|
$92.99 | ||
|
Unavailable |
|||
|
#27
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
