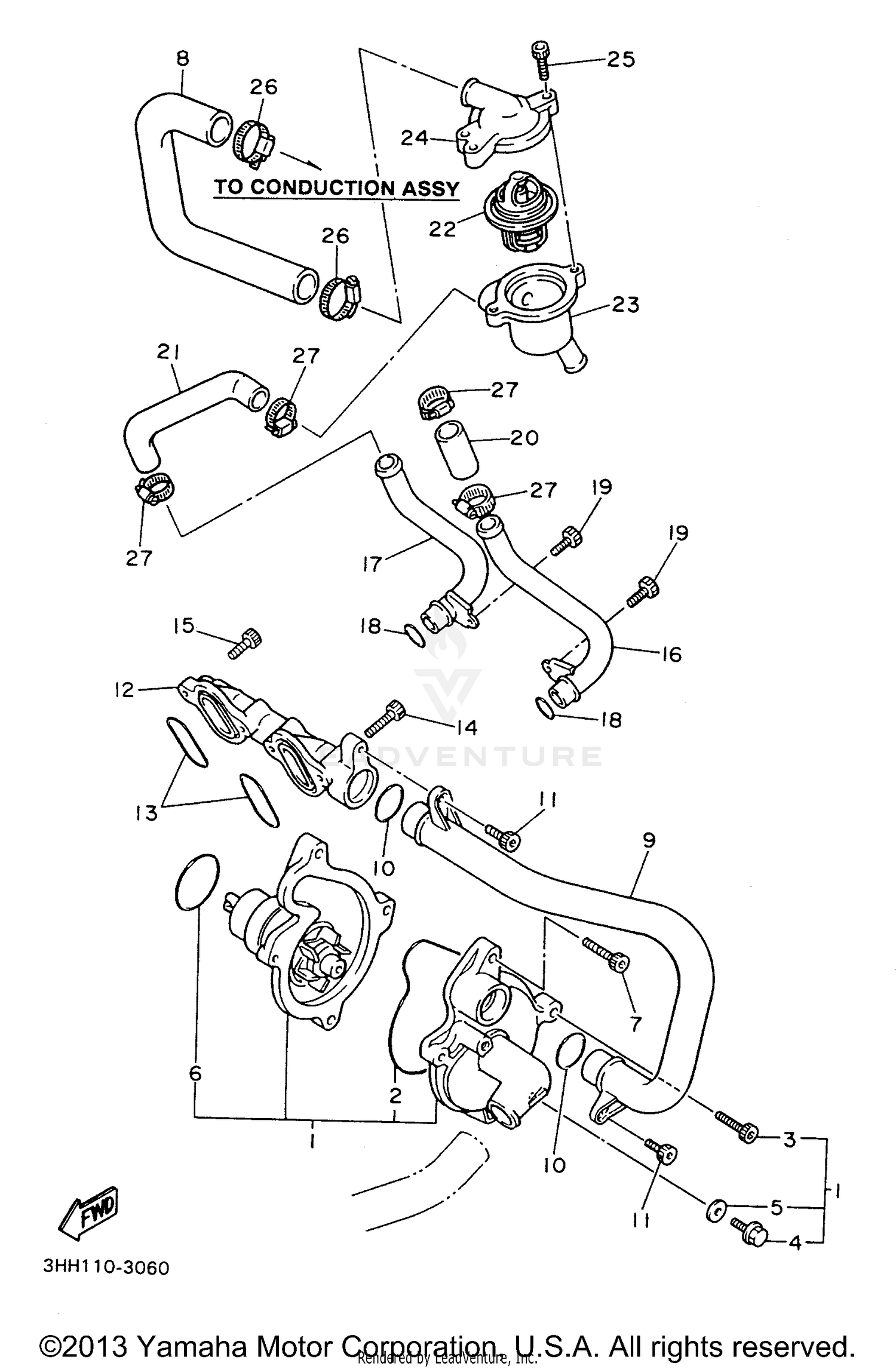

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
3TJ-Y1242-00-00
|
$435.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
1WG-12439-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-33133-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE 4
3HE-12579-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#9
PIPE 1
1WG-12481-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#10
O-RING
93210-21190-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT
1WG-12446-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-17746-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
PIPE 2
1WG-12482-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#17
PIPE 3
1WG-12483-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91317-06012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
HOSE 1
3HE-12576-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#21
HOSE 2
3HE-12577-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#22
THERMOSTAT ASSY
46X-12410-00-00
Superseded by 46X-12410-01-00
|
$34.99 | ||
|
Unavailable |
|||
|
#23
HOUSING, THERMOSTAT
1WG-12417-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#24
COVER, THERMOSTAT
1WG-12413-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE CLAMP ASSY
90450-32051-00
Superseded by 90450-32015-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
