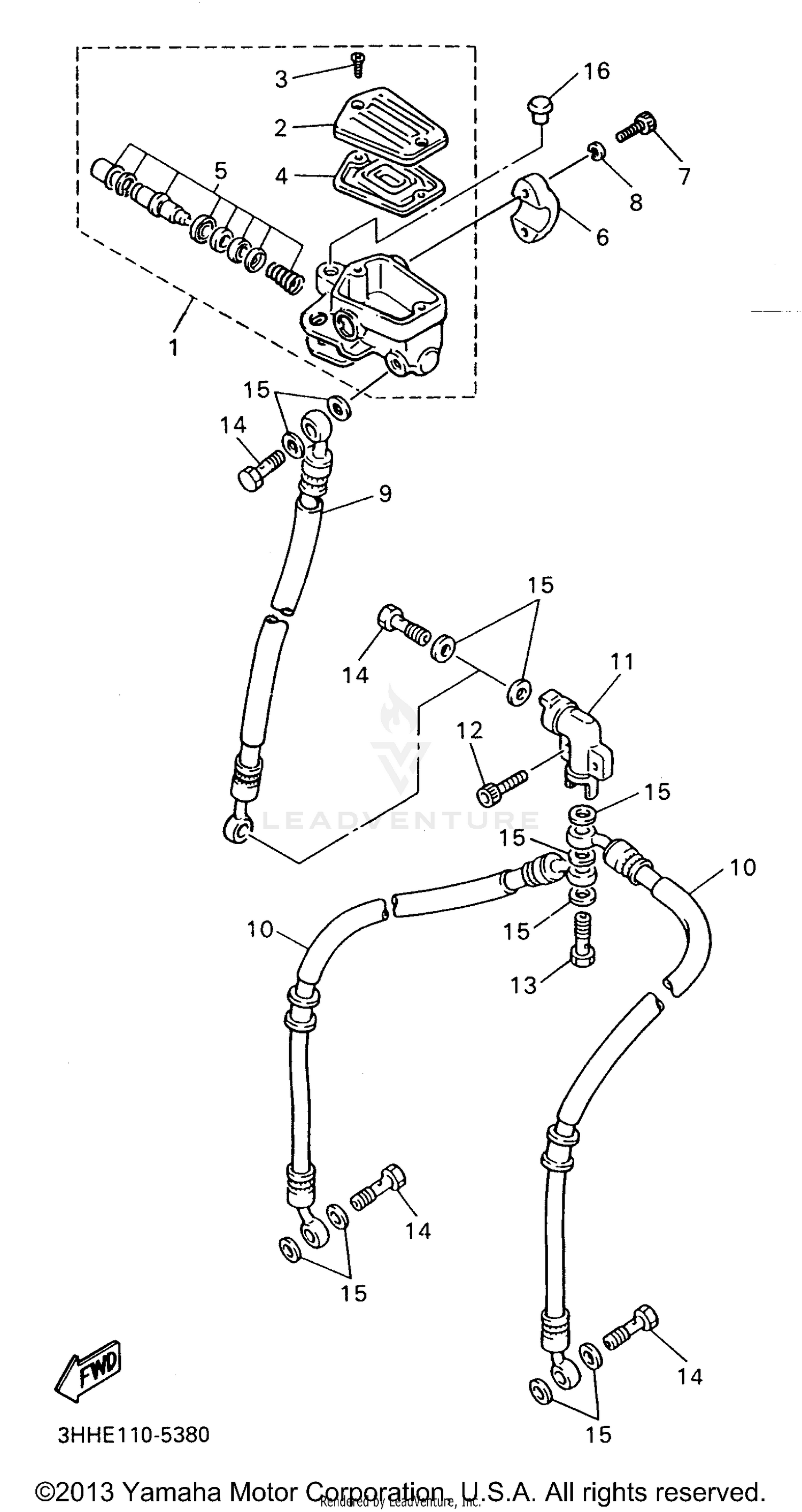

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY
3HE-2583T-00-00
Superseded by 3HE-2583T-02-00
|
$194.99 | ||
|
Unavailable |
|||
|
#2
CAP, RESERVOIR
3HE-25852-00-00
Superseded by 3HE-25852-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, FLAT HEAD
98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM, RESERVOIR
36Y-25854-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER KIT, MASTER
36Y-W0041-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
36Y-25867-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, BRAKE 1
3HE-25872-02-00
|
$65.99 | ||
|
Unavailable |
|||
|
#10
HOSE, BRAKE 2
3HE-25873-12-00
|
$98.81 | ||
|
Unavailable |
|||
|
#11
JOINT
11U-25885-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#12
BOLT
91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#13
BOLT, UNION
90401-10160-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
