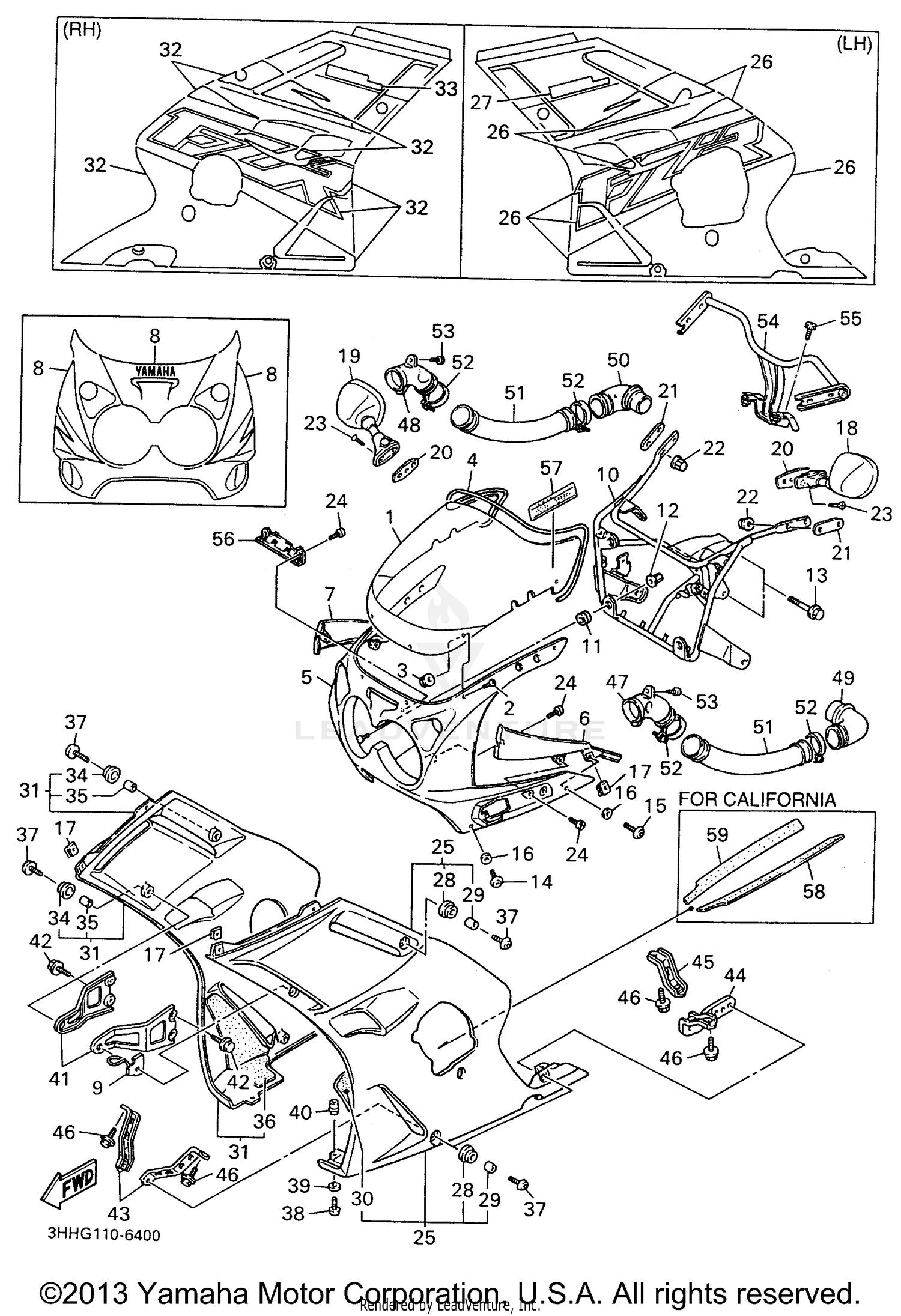

Cowling 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSHIELD
3HH-28381-10-00
|
$210.99 | ||
|
Unavailable |
|||
|
#2
SCREW, ROUND HEAD
90150-05020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOLE 4
36Y-28348-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY, FRONT UPPER 1
3HE-2835G-00-P1
|
$447.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT UPPER 1
3HE-2835G-00-WL
|
$446.99 | ||
|
Unavailable |
|||
|
#6
PANEL 1
3EN-2835U-20-00
|
$53.99 | ||
|
Unavailable |
|||
|
#7
PANEL 2
3EN-2835V-20-00
|
$53.99 | ||
|
Unavailable |
|||
|
#8
GRAPHIC SET, COWLING
3HH-28390-90-00
|
$166.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET, COWLING
3HH-28390-A0-00
|
$179.99 | ||
|
Unavailable |
|||
|
#9
HOLDER
3HE-21596-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#10
STAY 1
3HE-28356-30-00
|
$313.99 | ||
|
Unavailable |
|||
|
#11
GROMMET
90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-08748-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-05299-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
REAR VIEW MIRROR ASSY (LEFT)
3HE-26280-00-00
Superseded by 3HE-26280-01-00
|
$163.99 | ||
|
Unavailable |
|||
|
#
REAR VIEW MIRROR ASSEMBLY (LEFT
3HE-26280-10-00
|
$87.99 | ||
|
Unavailable |
|||
|
#19
REAR VIEW MIRROR ASSEMBLY (RIGH
3HE-26290-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#
REAR VIEW MIRROR ASSEMBLY (RIGH
3HE-26290-10-00
|
$87.99 | ||
|
Unavailable |
|||
|
#20
PLATE, MIRROR FITTING 1
1AE-26298-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, MIRROR FITTING 1
3CV-26298-00-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, FLAT HEAD
98707-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TRUSS HEAD TAPPING
97707-50014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BODY, FRONT LOWER 1
3EN-Y283J-0G-2Y
|
$662.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT LOWER 1
3EN-Y283J-0H-3Y
|
$653.99 | ||
|
Unavailable |
|||
|
#26
GRAPHIC SET, LOWER COVER 1
3HH-28301-A0-00
|
$157.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET, LOWER COVER 1
3HH-28301-B0-00
|
$198.99 | ||
|
Unavailable |
|||
|
#27
EMBLEM
3LE-28368-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#
EMBLEM
3LE-28368-20-00
|
$27.99 | ||
|
Unavailable |
|||
|
#28
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-067K6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAT 2
3HE-2848K-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#31
BODY, FRONT LOWER 2
3EN-Y283K-0M-2Y
|
$661.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT LOWER 2
3EN-Y283K-0N-3Y
|
$653.99 | ||
|
Unavailable |
|||
|
#32
GRAPHIC SET, LOWER COVER 2
3HH-28303-A0-00
|
$135.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET, LOWER COVER 2
3HH-28303-B0-00
|
$198.99 | ||
|
Unavailable |
|||
|
#33
EMBLEM
3LE-28368-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#
EMBLEM
3LE-28368-20-00
|
$27.99 | ||
|
Unavailable |
|||
|
#34
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
COLLAR
90387-067K6-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
SEAT 3
3HE-2848L-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
90110-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW
90149-05299-00
|
$3.90 | ||
|
Unavailable |
|||
|
#39
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#40
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
STAY, SIDE 1
3HE-2831U-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#42
BOLT, FLANGE
95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET 1
1WG-2836A-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#44
BRACKET 1
3EN-2836A-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#45
BRACKET 2
1WG-2836E-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#46
BOLT,FLANGE
95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#47
DUCT 1
3EN-2838N-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#48
DUCT 2
3EN-2838R-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#49
DUCT 3
3EN-2838T-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#50
DUCT 4
3EN-2838U-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#51
DUCT 5
3HE-2838J-01-00
|
$121.99 | ||
|
Unavailable |
|||
|
#52
CLAMP, HOSE
90460-49058-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
SCREW, BINDING
90154-06046-00
|
$0.85 | ||
|
Unavailable |
|||
|
#54
STAY, MIRROR 1
3HE-2831W-00-00
|
$138.71 | ||
|
Unavailable |
|||
|
#55
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#56
LID
3EN-28313-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#57
LABEL, CAUTION
3JJ-2835Y-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#58
SEAT 4
3HF-2848M-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#59
SEAT 5
3HF-2848N-00-00
|
$16.49 | ||
|
Unavailable |
|||
