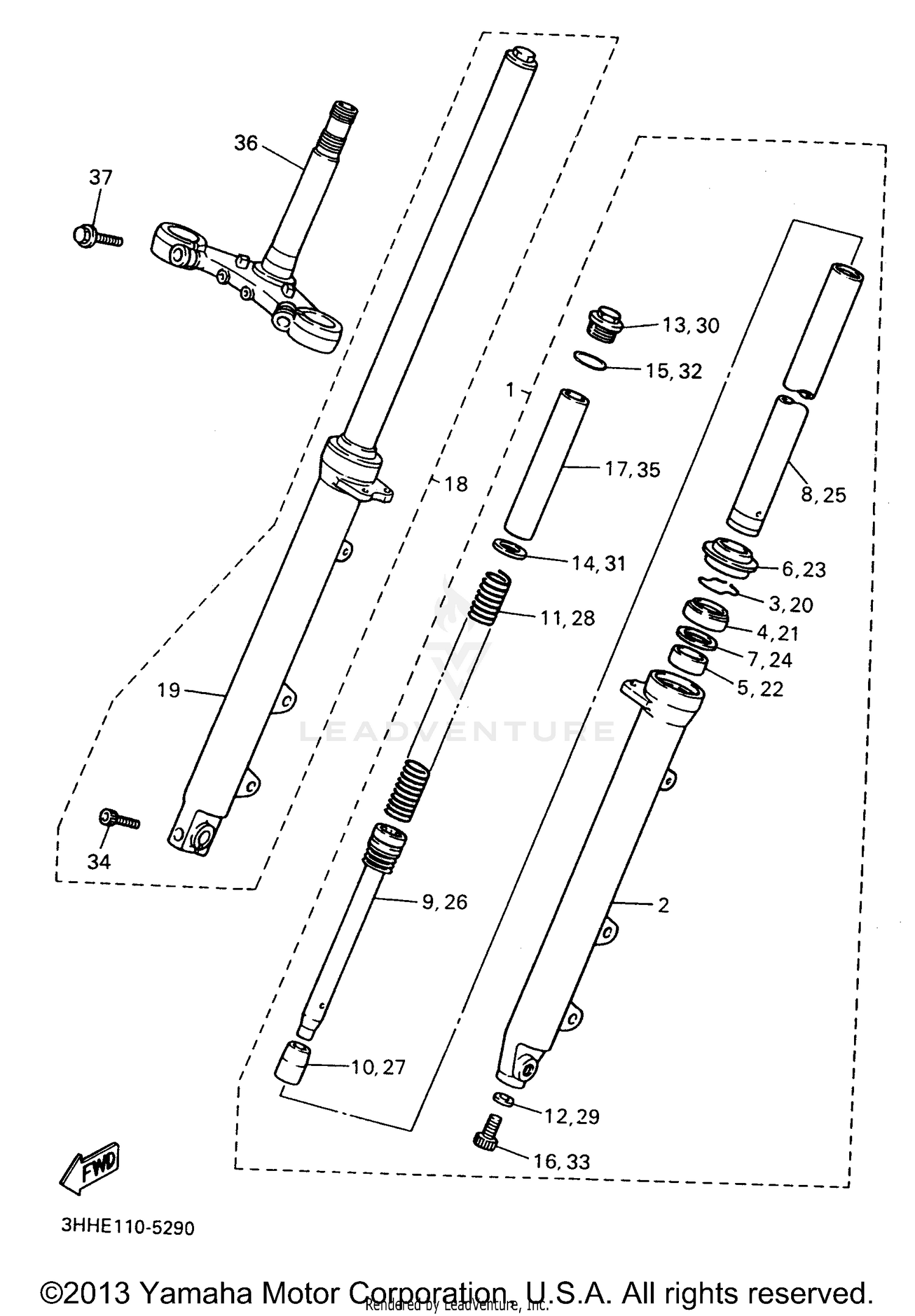

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
3HE-23102-10-00
Superseded by 3HE-23102-12-00
|
$751.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
3HE-23126-10-00
|
$572.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
3EN-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
2YK-23125-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
3EN-23144-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
4V2-23146-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE COMP. 1
3BF-23110-50-00
|
$351.99 | ||
|
Unavailable |
|||
|
#9
CYLINDER COMP., FRONT FORK
3HE-23170-00-00
|
$254.99 | ||
|
Unavailable |
|||
|
#10
SPINDLE, TAPER
2YK-23173-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, FRONT FORK
3HE-23141-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#12
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CAP
3EN-23111-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING UPPER
4DN-23149-40-00
|
$6.99 | ||
|
Unavailable |
|||
|
#15
GASKET
1W4-23114-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
1WG-23118-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#18
FRONT FORK ASSEMBLY (R.H)
3HE-23103-10-00
Superseded by 3HE-23103-12-00
|
$751.99 | ||
|
Unavailable |
|||
|
#19
TUBE, OUTER (RIGHT)
3HE-23136-10-00
|
$738.99 | ||
|
Unavailable |
|||
|
#20
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
OIL SEAL
3EN-23145-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#22
METAL, SLIDE 1
2YK-23125-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#23
SEAL, DUST
3EN-23144-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#24
WASHER, OIL SEAL
4V2-23146-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#25
INNER TUBE COMP. 1
3BF-23110-50-00
|
$351.99 | ||
|
Unavailable |
|||
|
#26
CYLINDER COMP., FRONT FORK
3HE-23170-00-00
|
$254.99 | ||
|
Unavailable |
|||
|
#27
SPINDLE, TAPER
2YK-23173-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#28
SPRING, FRONT FORK
3HE-23141-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#29
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#30
BOLT, CAP
3EN-23111-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING UPPER
4DN-23149-40-00
|
$6.99 | ||
|
Unavailable |
|||
|
#32
GASKET
1W4-23114-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
1WG-23128-00-00
Superseded by 91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPACER
1WG-23118-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#36
UNDER BRACKET COMP.
1WG-23340-00-00
Superseded by 1WG-23340-01-00
|
$357.99 | ||
|
Unavailable |
|||
|
#37
BOLT 2
2NX-23356-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
